Audio - Cassette Inoperative

9214toyota01

REF.: AUDIO

NO.: AU91-006

DATE: DECEMBER 27, 1991

MODEL: ALL MODELS

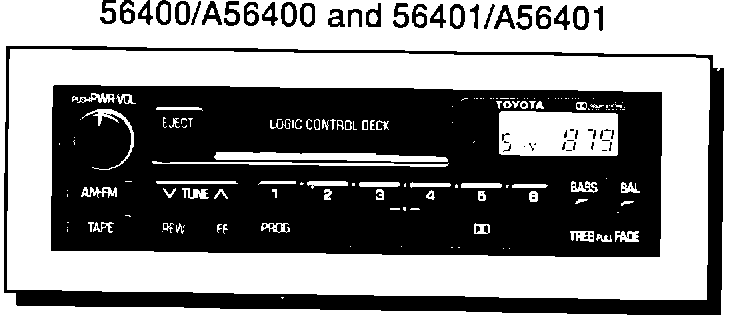

CASSETTE INOPERATIVE ON '90 RADIOS (56400/A56400) & '91 RADIOS (56401/A56401)





To prevent electrostatic discharge to the cassette section, the ground path between the faceplate and the radio chassis has been improved on Panasonic radios:


PART NUMBER INFORMATION

Year Radio Model P/N Panasonic Serial Number

'91 56401 86120-32383 103342-
86100-89133 13021-
'91 A56401 86120-02072 740469-
86120-02072 517431-

'90 56400 86120-32382
86100-89129
'90 A56400 86120-02071 Countermeasures are available
on all exchange radios.

Notes:
Countermeasures are effective 5/91.
Part Numbers remain unchanged.


SERVICE PROCEDURE:

The following conditions may occur:

^ Tape will not play/eject

^ Radio is completely inoperative

This condition occurs immediately after inserting a cassette into the radio in cool and dry climates.


NOTE:

If a customer's tape is "stuck", do not attempt to remove the tape by hand. Excess force during removal of the tape will damage the tape player mechanism.

To release the tape, remove the Dome fuse for 30 seconds to reset the radio. Eject the cassette, then exchange the radio through Panasonic's exchange program.

EXCHANGE UNIT INFORMATION:

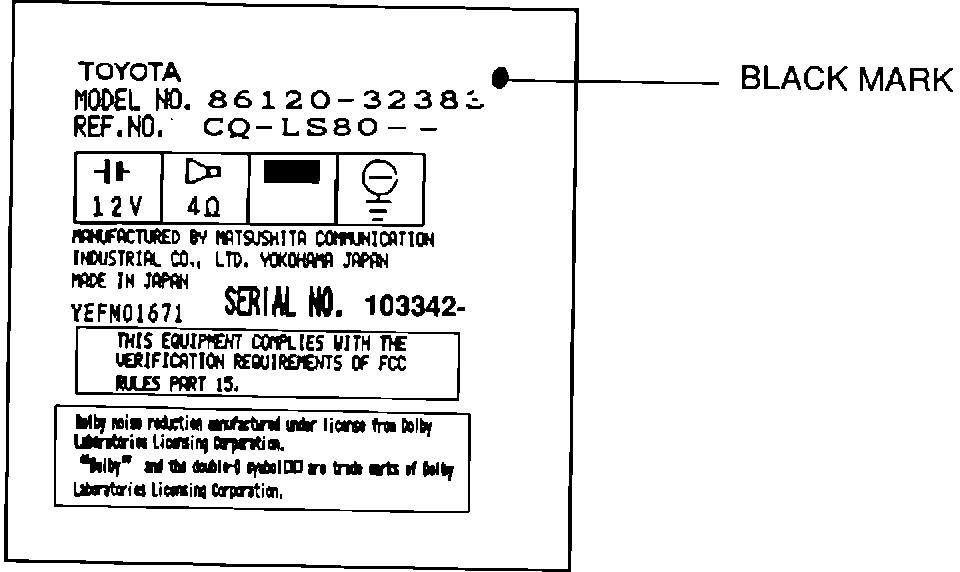

Panasonic began shipping improved exchange units on 5/91. Exchange radios with the countermeasure will have a black mark on the upper right corner of the serial number ID label as shown.
