Liftback & Coupe (Right/Left Side : Front)

INSTALLATION PROCEDURE:

Liftback & Coupe (Right/Left Side : Front)

1. Remove (2) 10 mm screws from the front wheelhouse and (1) 10 mm screw from the lower rocker panel (Figure 1).

Figure 2:

2. Clean the surface where the mudguard will be installed (use a cleaner such as Toyota Bug & Tar Remover P/N 00289-1BT01 and a lint free rag - making sure that the surface is clean and dry).

3. Remove the protective backing from the butyl strip on the mudguard.

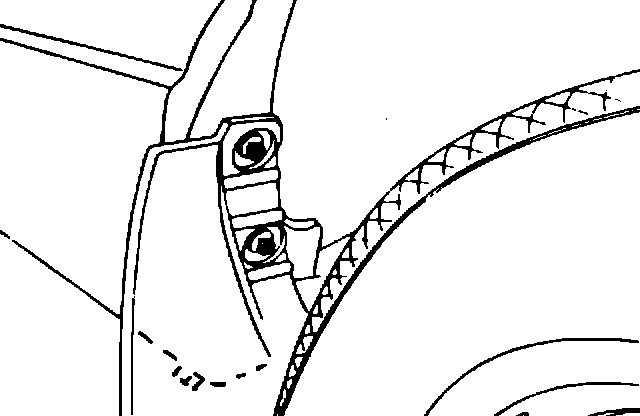

4. Place the mudguard into position; attach and secure it with (3) 10 mm screws removed from step 1 (Figure 2).
