Liftback (Right/Left Side : Rear)

Figure 3:

Liftback (Right/Left Side : Rear)

1. Remove (2) inner fender plugs and discard (Figure 3).

2. Install (2) threaded inserts, provided in kit, into the holes exposed during step 1.

3. Clean the surface where the mudguard will be installed (use a cleaner such as Toyota Bug & Tar Remover P/N 00289-1BT01 and a lint free rag making sure surface is clean and dry).

4. Remove the protective backing from the butyl strip on the mudguard.

5. Place the mudguard into position; attach and secure it with (2) 10 mm screws provided in kit.

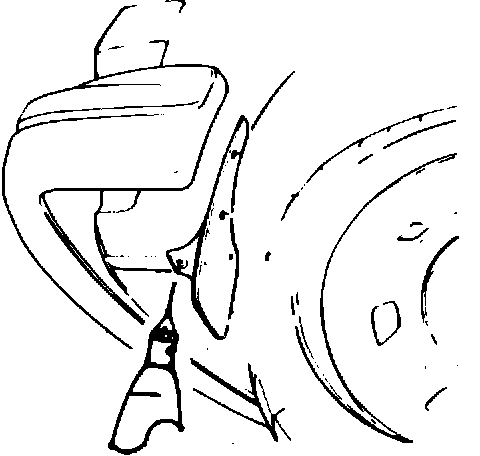

Figure 4:

6. Drill a 1/8 inch diameter hole into the lower quarter panel using the lower mudguard mounting tab as a guide (Figure 4). Use caution not to damage the mudguard.

7. Carefully clean remaining drill chips from the drill hole and apply anticorrosion material (Tectyle(R) 506G or 3M Rust Fighter I P/N 08892) to the drill hole.

8. Attach and secure lower mudguard tab with (1) 10 mm screw provided in kit.
