Fuel - Brass Tube In With Replacement Carburetors

90toyota05 REFERENCE ENGINE
NUMBER 027
DATE 09-07-90
MODEL EL
TITLE TERCEL CARBURETOR SUPPLY PARTS CHANGE


A brass tube is now included in the box with replacement carburetors for Tercels.

This tube should be installed into the accelerator pump air bleed port if the vehicle is equipped with the Tercel Driveability Kit outlined in TSB Volume 10, Engine # 021.

If the vehicle does not have the Driveability Kit, the brass tube should be discarded.

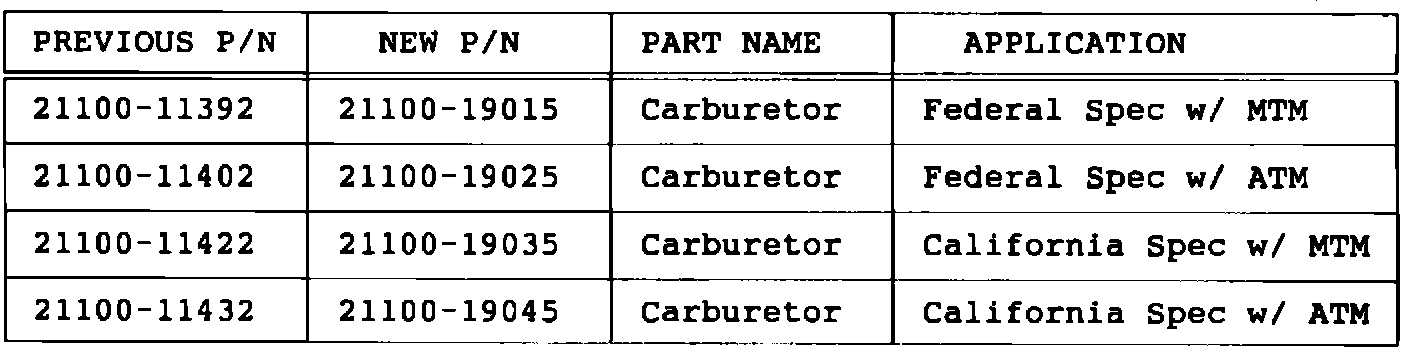

PART NUMBER INFORMATION:
NOTE: The ID tag on the carburetor will still have the last 5 digits of the previous P/N (ie. 11392). The carburetor is unchanged.

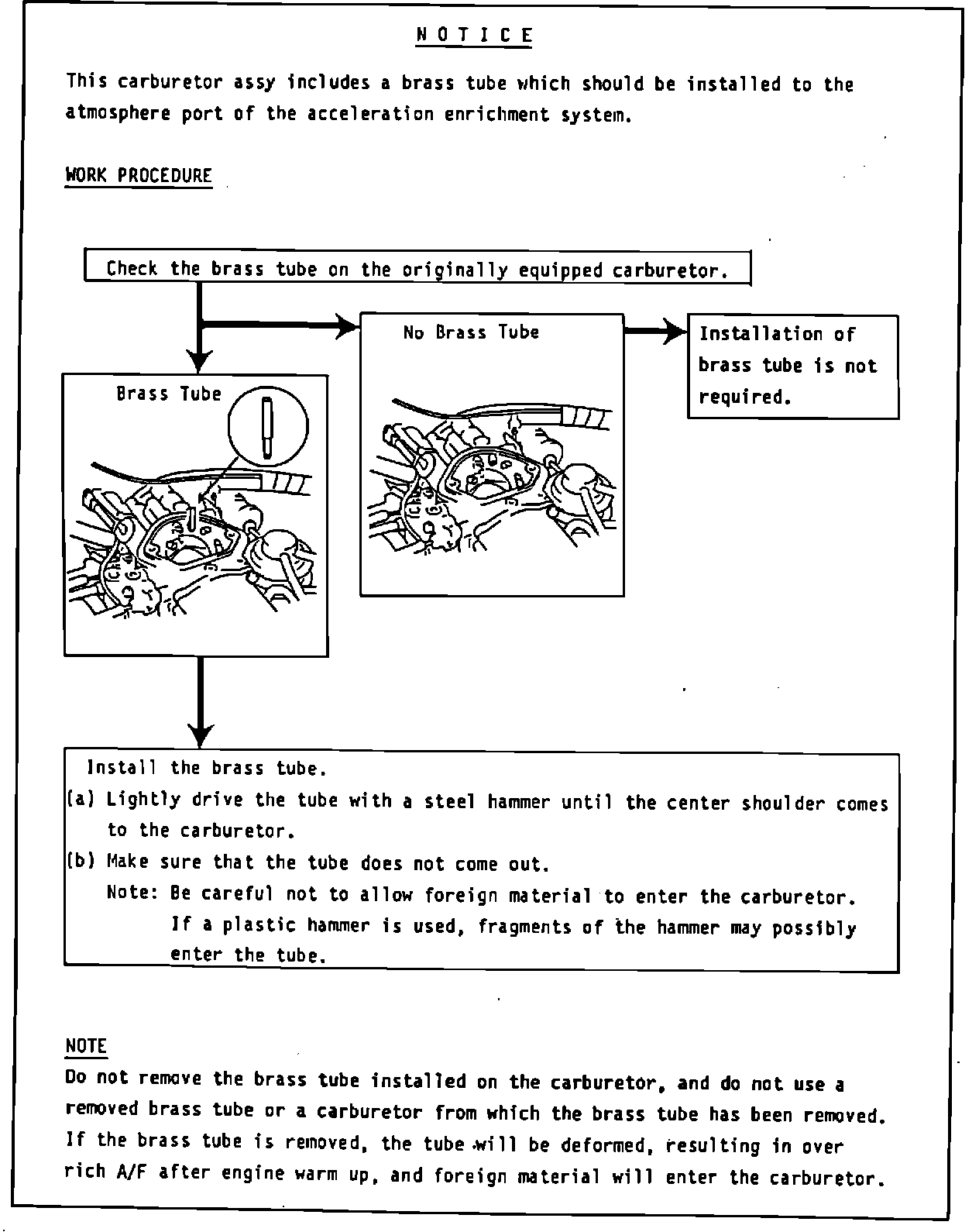

NOTIFICATION LABEL:

The instructions reproduced below have been inserted into the box along with the carburetor and brass tube:
