Manual Transmission/Transaxle: Description and Operation

- Transaxle types C140, C141 and C150 are constant mesh synchronizers for forward gears, and a sliding mesh reverse gear.
- The input shaft is composed of the 1st and 2nd speed gears and the reverse drive gear, and the out-put shaft is composed of the drive gear (for use with the ring gear).
- The oil is as follows: API GL-4 or GL-5 SAE 75W-90

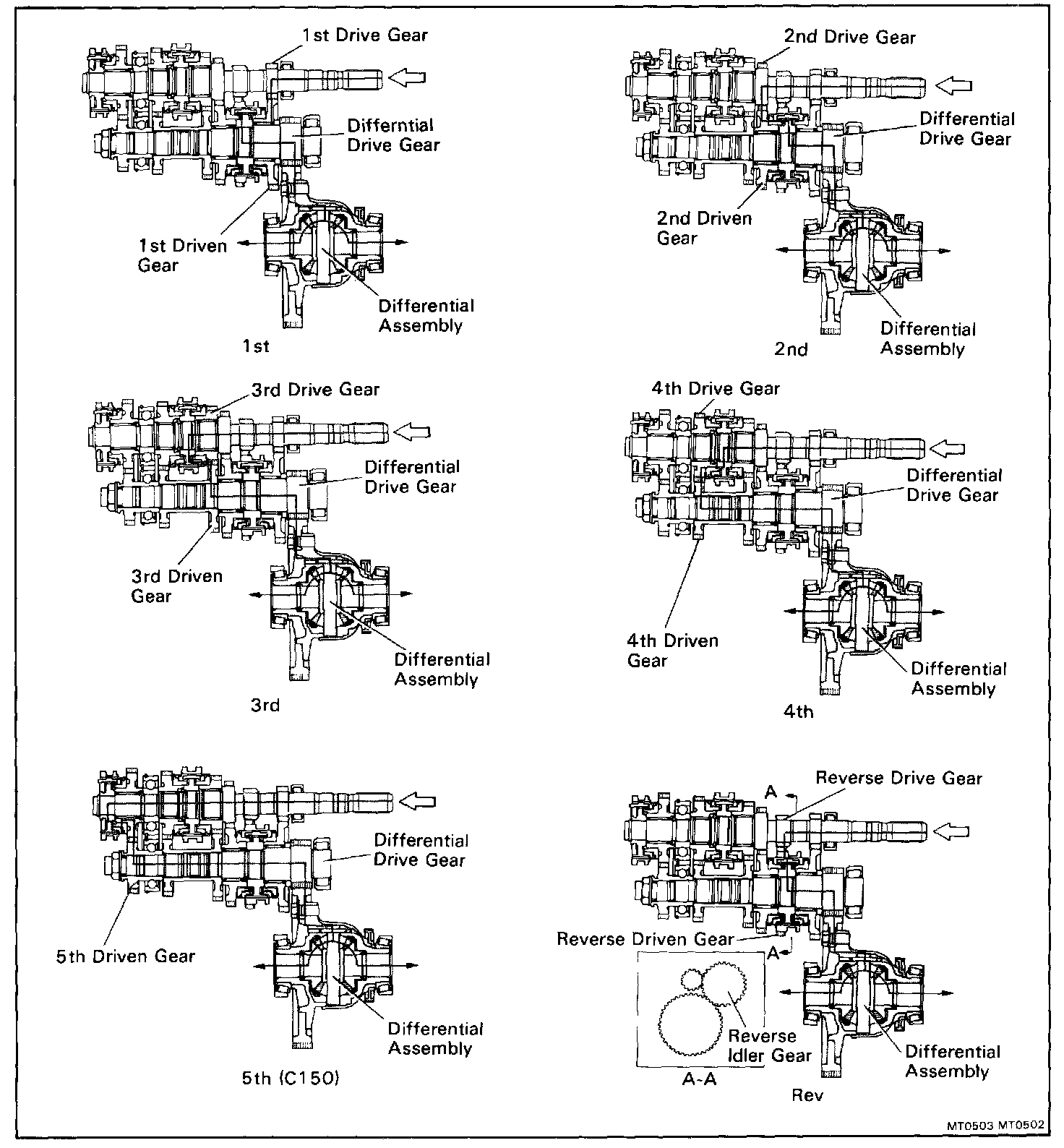

- The illustrations below show the engagements of transaxle gears.
