ABS (Antilock Brake System)

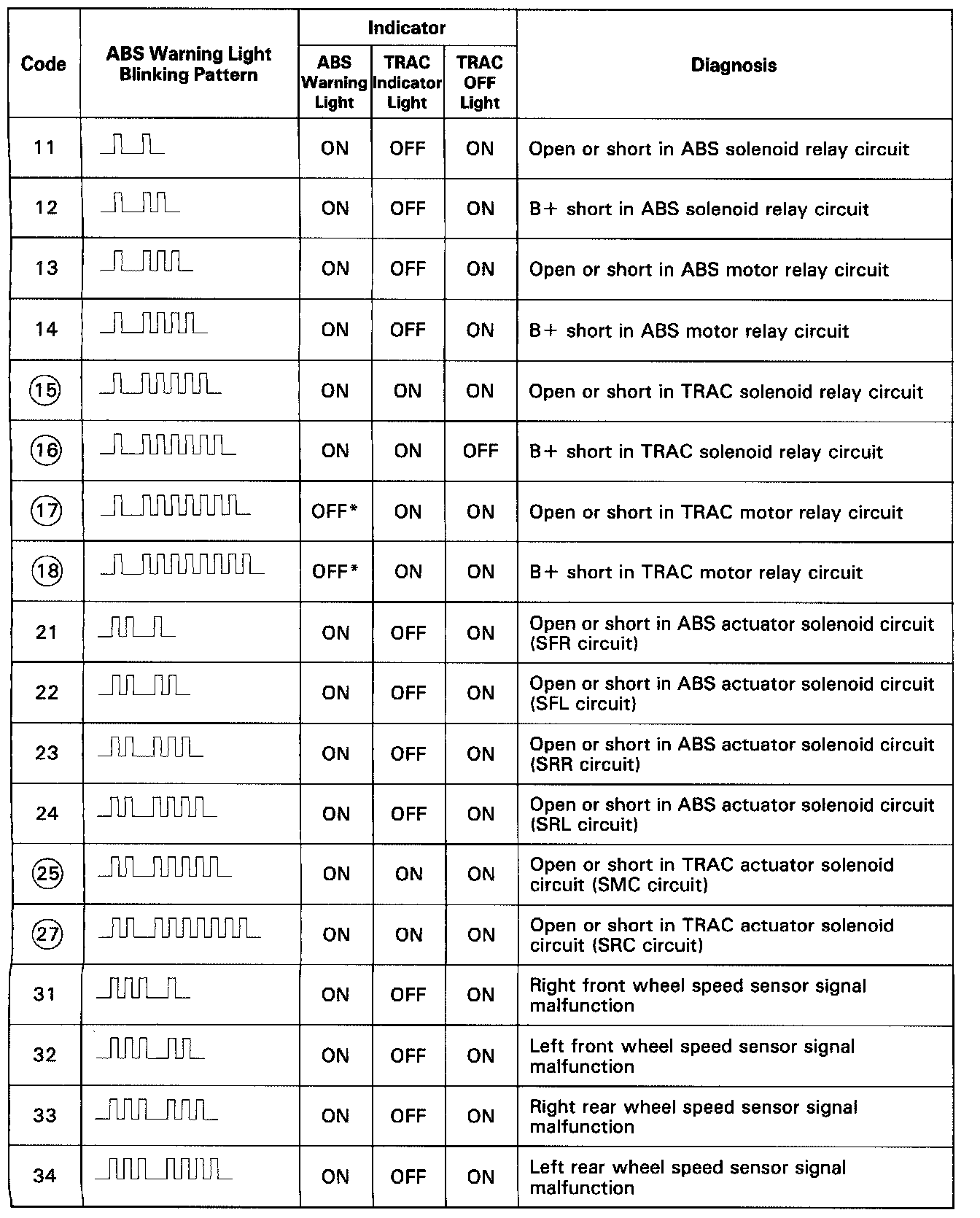

If a malfunction code is displayed during the diagnostic trouble code check, check the circuit listed for that code in the table.

HINT: Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.

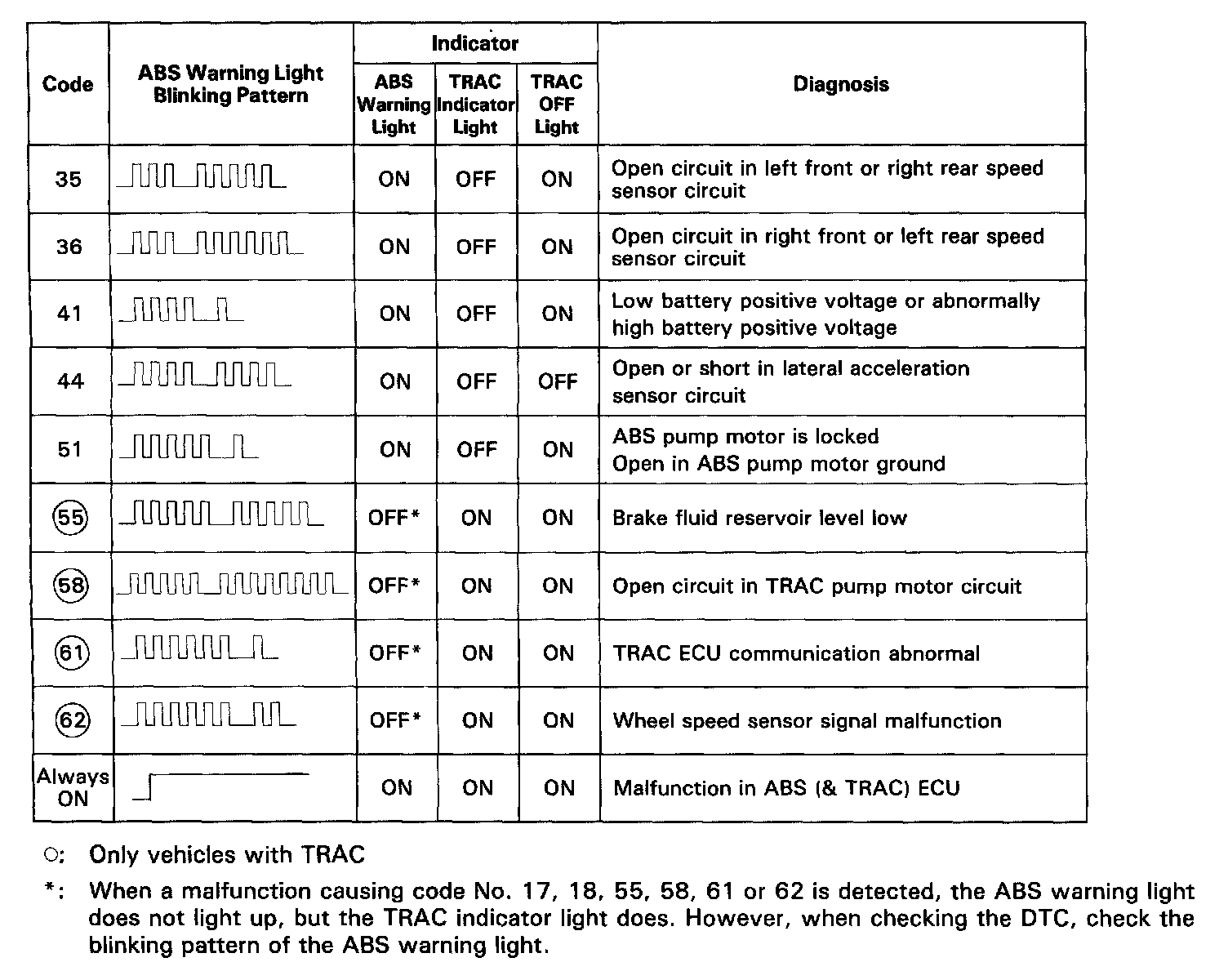

0: Only vehicles with TRAC
*: When a malfunction causing code No.17, 18, 55, 58, 61 or 62 is detected, the ABS warning light does not light up, but the TRAC indicator light does. However, when checking the DTC, check the blinking pattern of the ABS warning light.
