Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

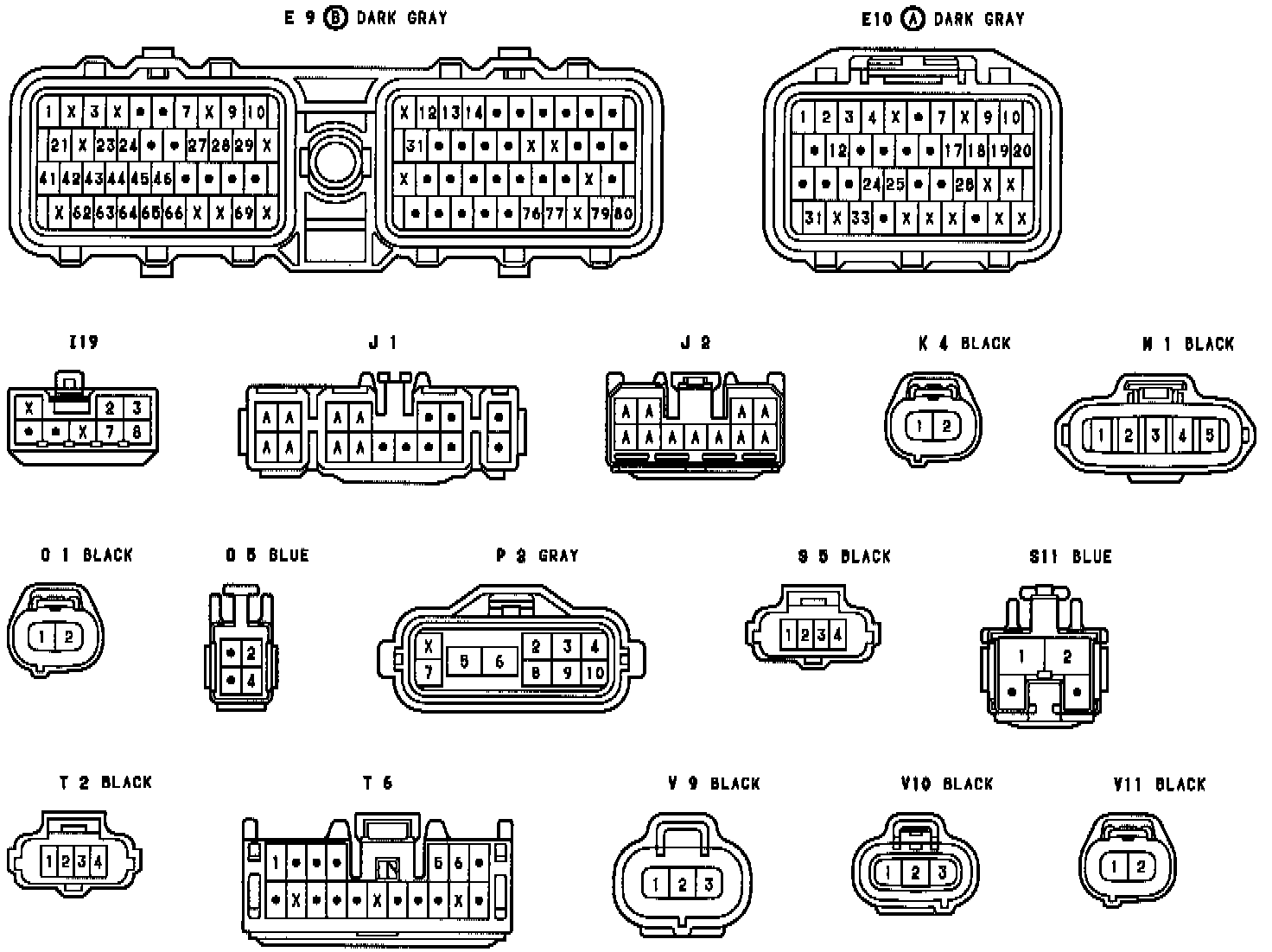

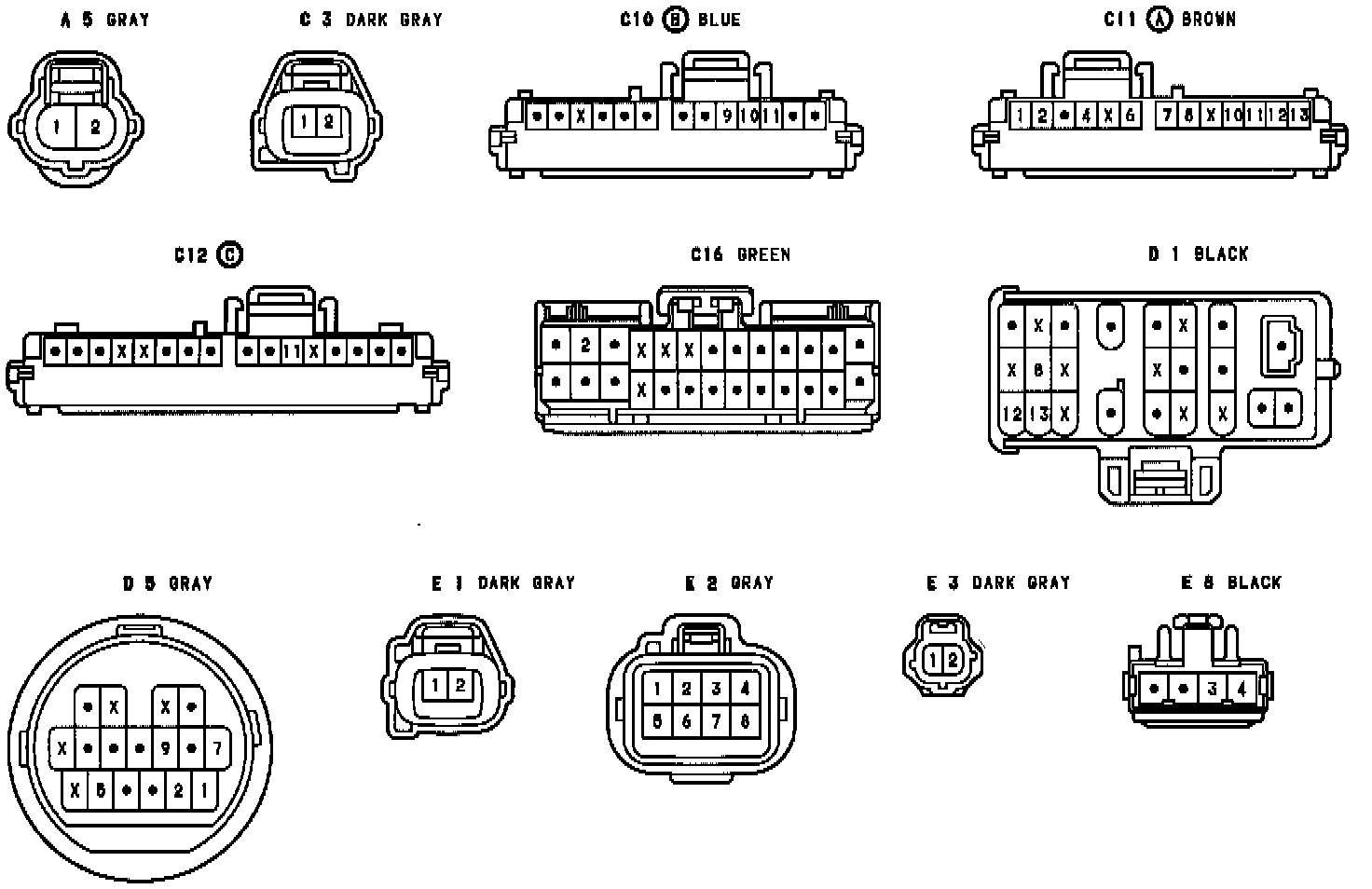

Electronic Controlled Transmission And A/T Indicator Connector Views (2JZ-GTE):
Electronic Controlled Transmission And A/T Indicator Connector Views (2JZ-GTE):
