Antitheft and Alarm Systems

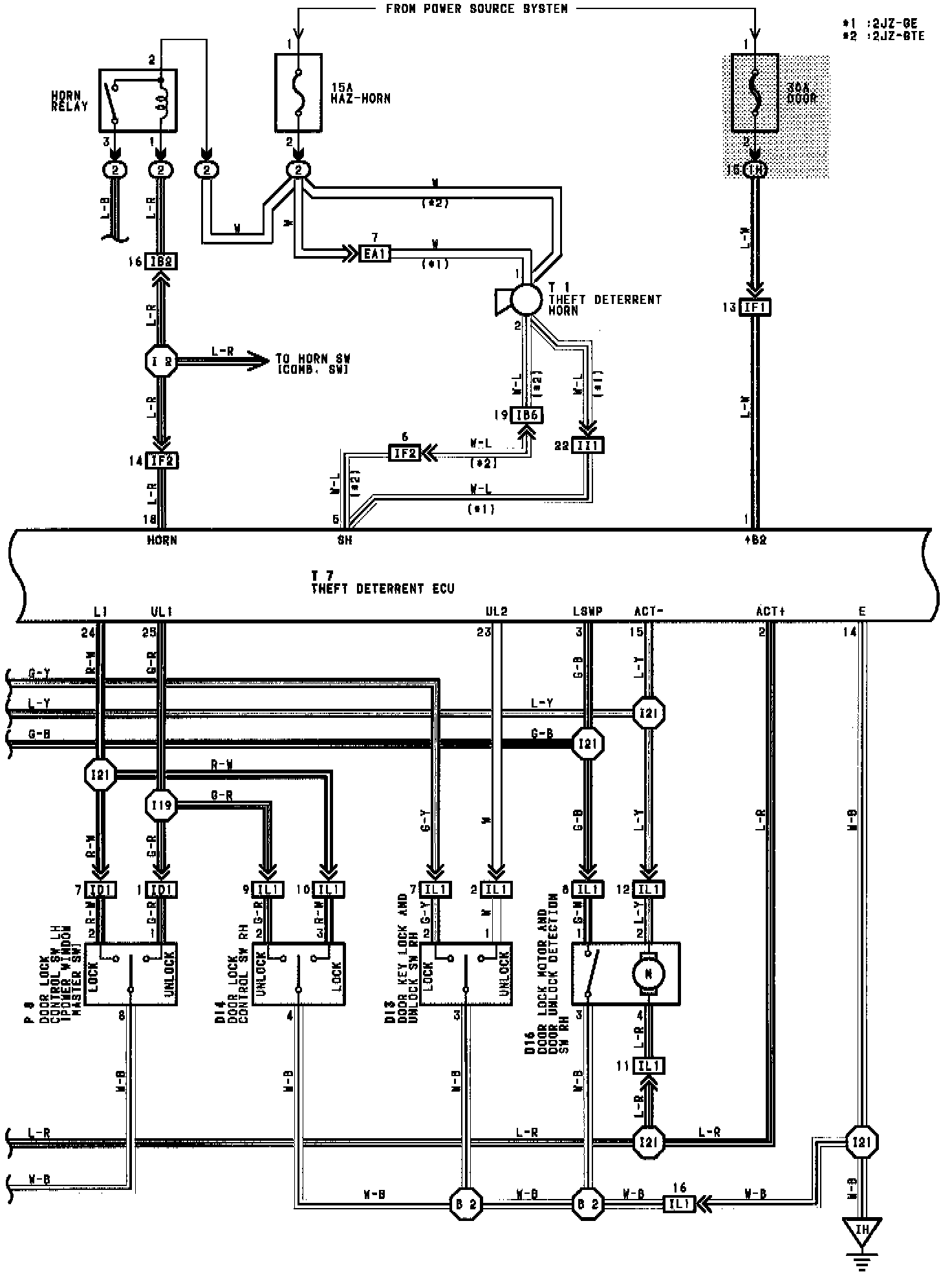

Theft Deterrent And Door Lock Control Wiring Diagram:



Theft Deterrent And Door Lock Control Wiring Diagram:



Theft Deterrent And Door Lock Control Wiring Diagram:
