Oil Level Warning Indicator
Oil Level Warning Indicator

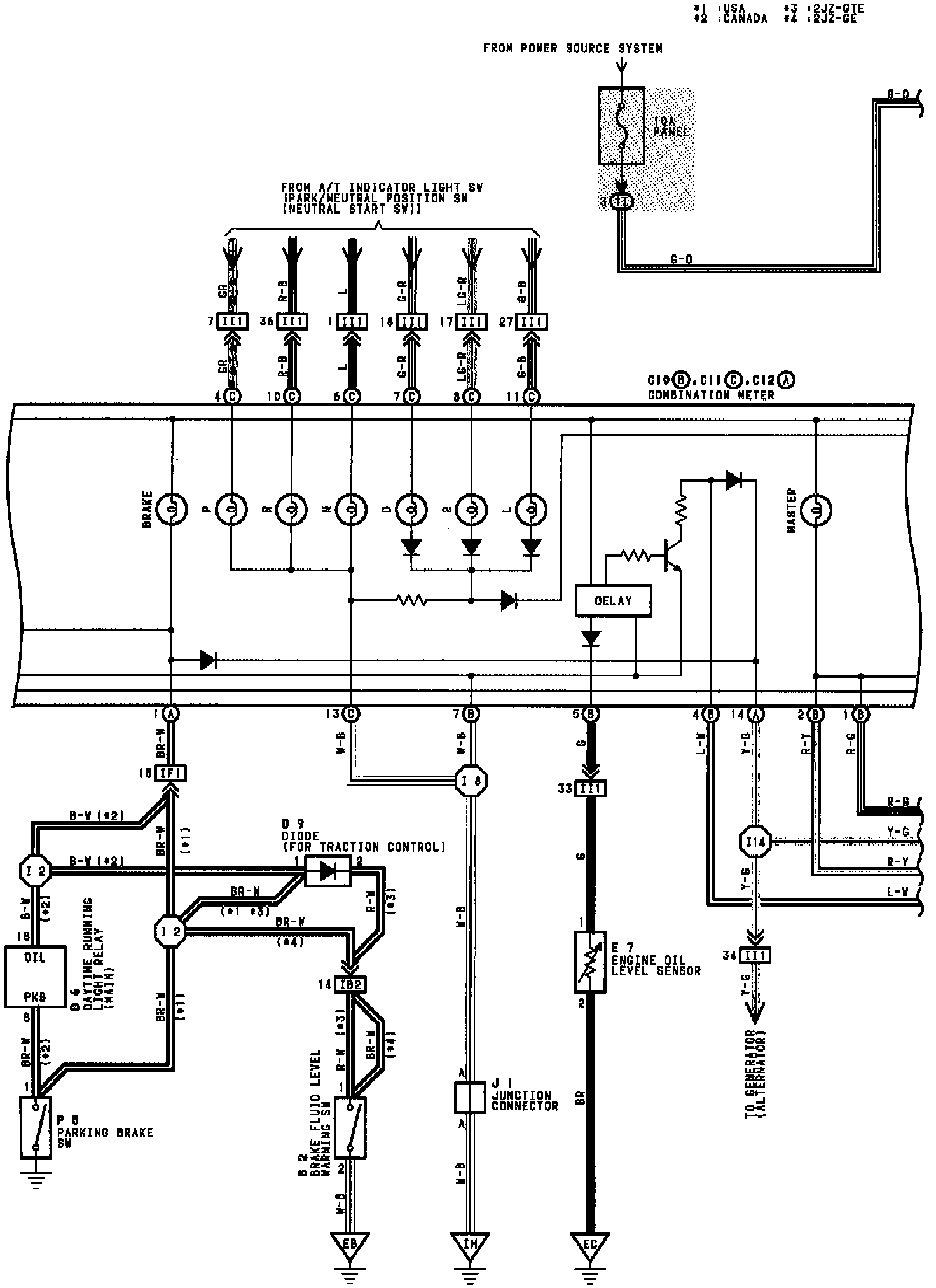

Combination Meter Wiring Diagram:

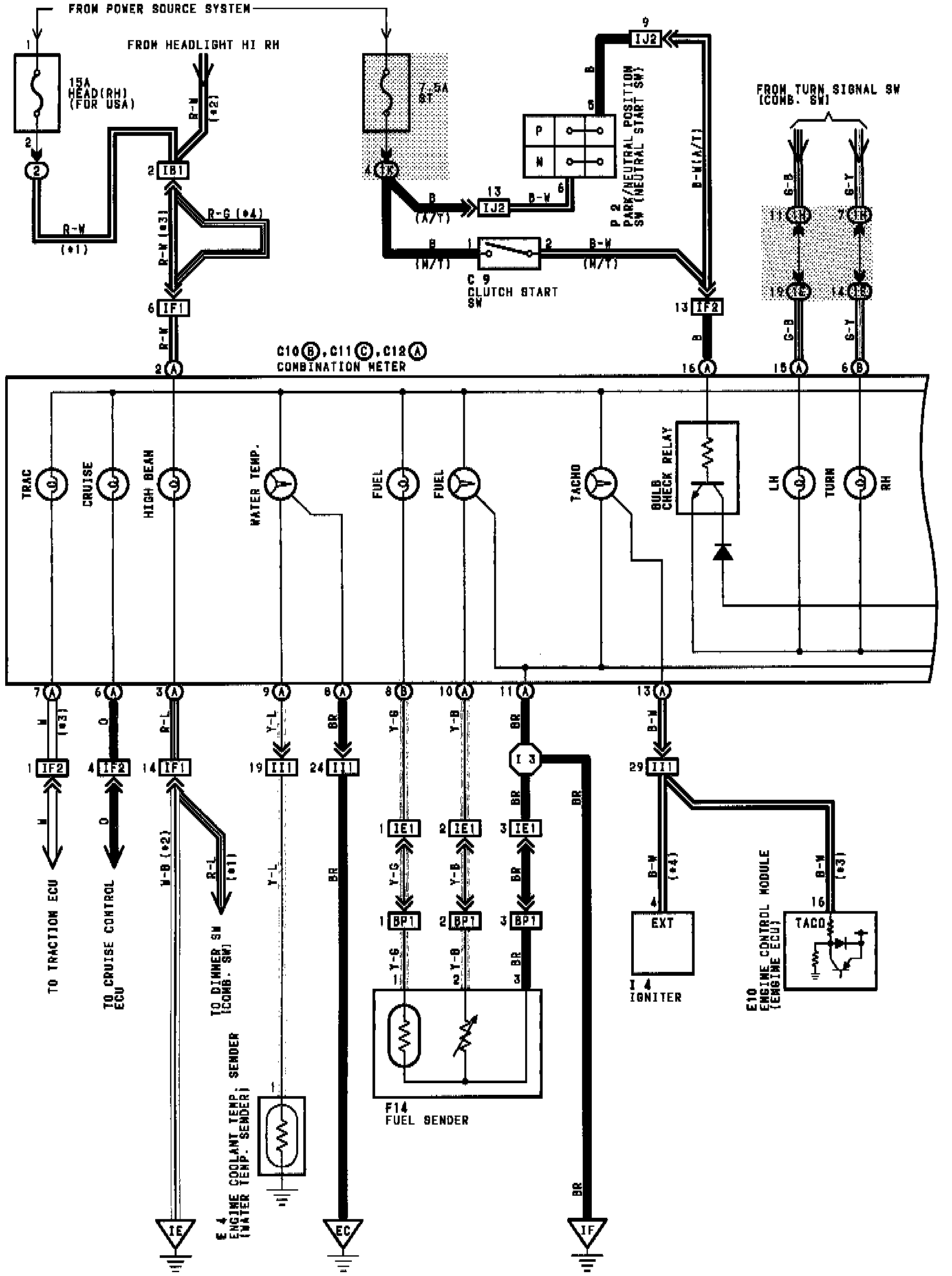

Combination Meter Wiring Diagram:

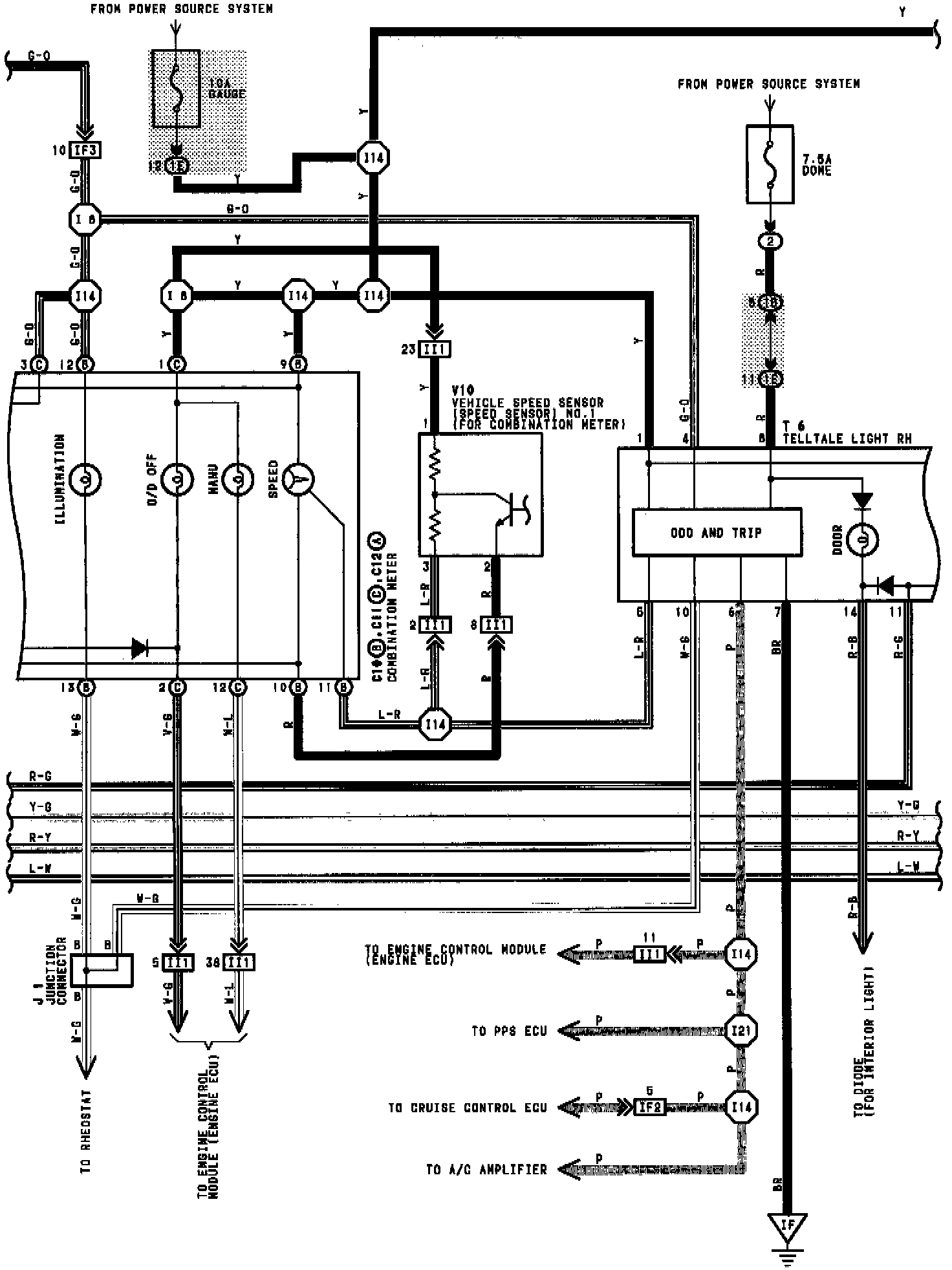

Combination Meter Wiring Diagram:
Combination Meter Wiring Diagram:
