Transmission Control Systems

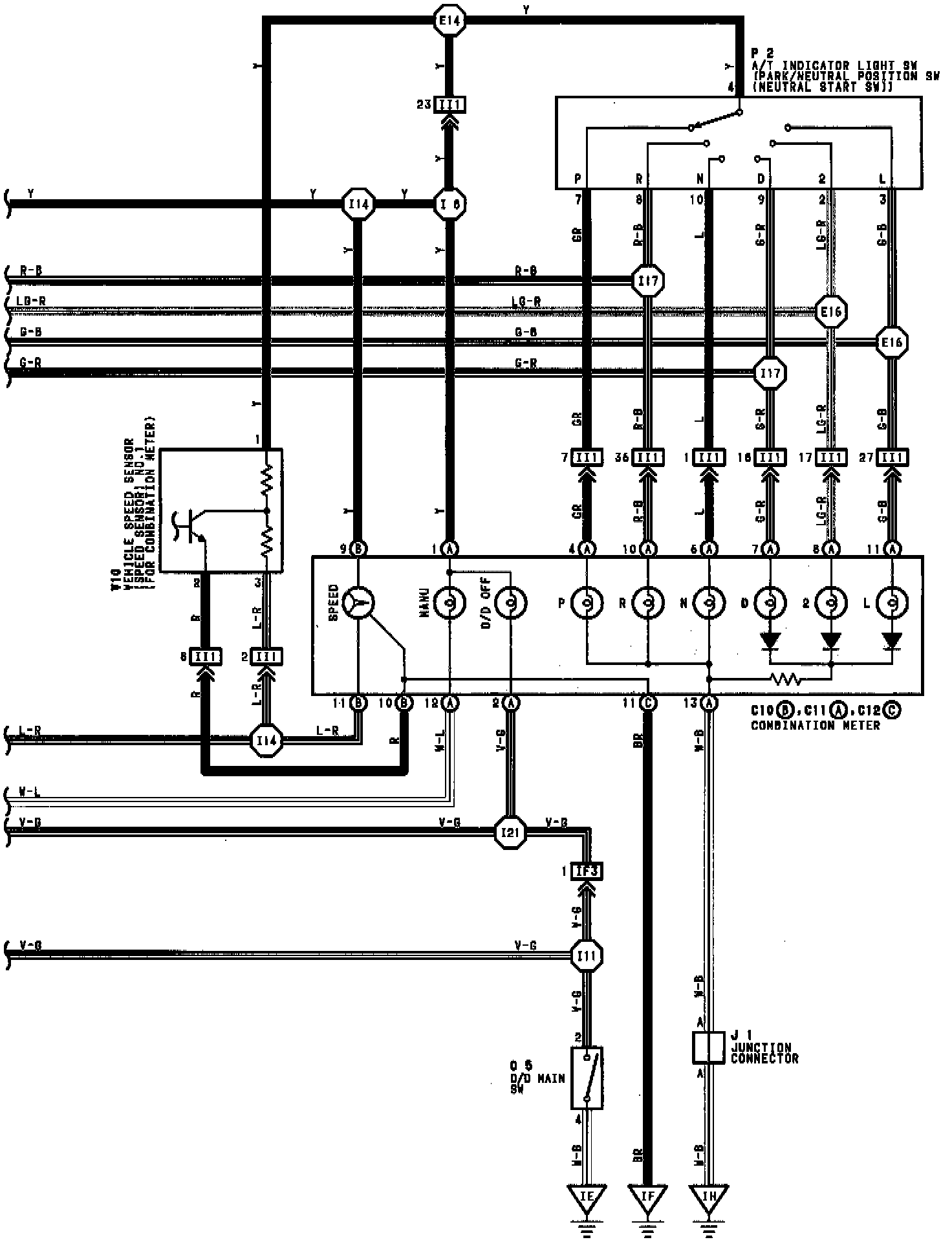

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GTE):

Part 1 of 5

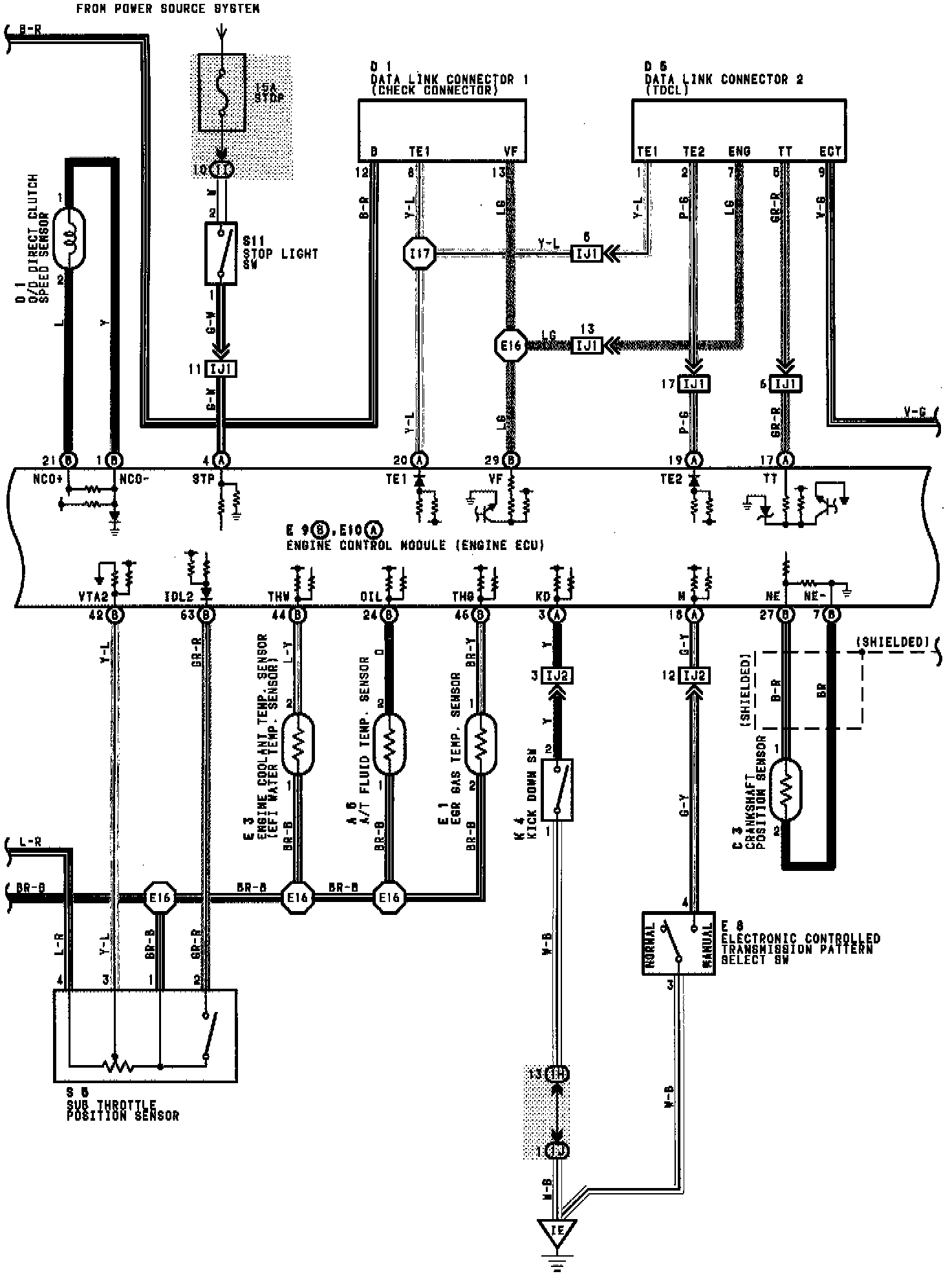

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GTE):

Part 2 of 5

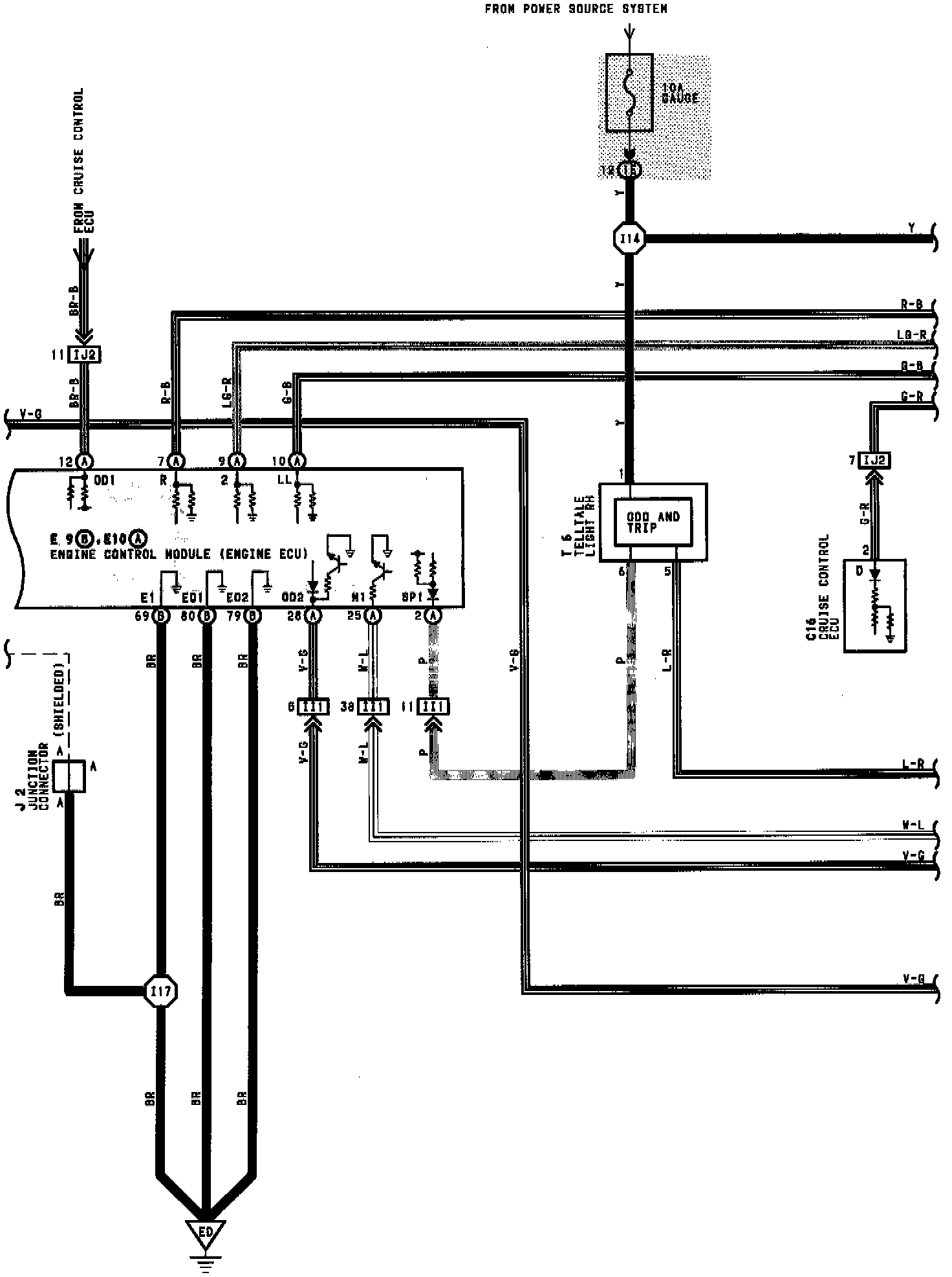

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GTE):

Part 3 of 5

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GTE):

Part 4 of 5

Electronic Controlled Transmission And A/T Indicator Wiring Diagram (2JZ-GTE):

Part 5 of 5
