Heating and Air Conditioning: Specifications

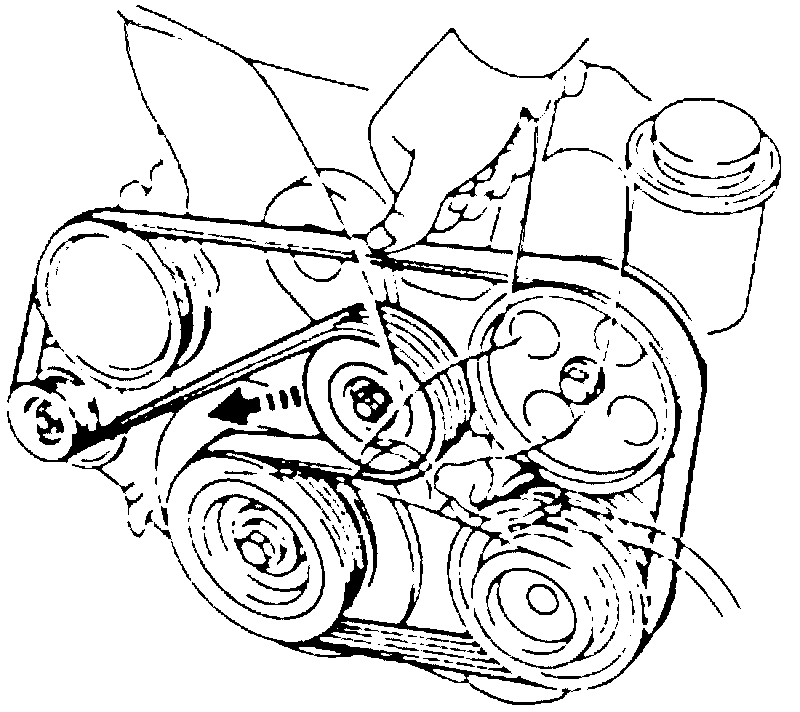

Fig. 15 Drive Belt Tension Inspection:





Check that the belt tensioner moves downward when drive belt is pressed down at points in Fig. 15 with approximately 22 ft. lbs.

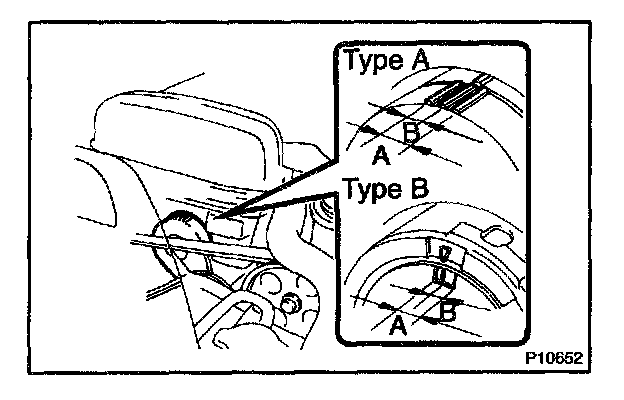

Check that arrow mark on belt tensioner falls within area A in Fig. 16. If new belt is installed, it should be within area B.
