Splice Locations

Splice Points:




SPLICE POINTS

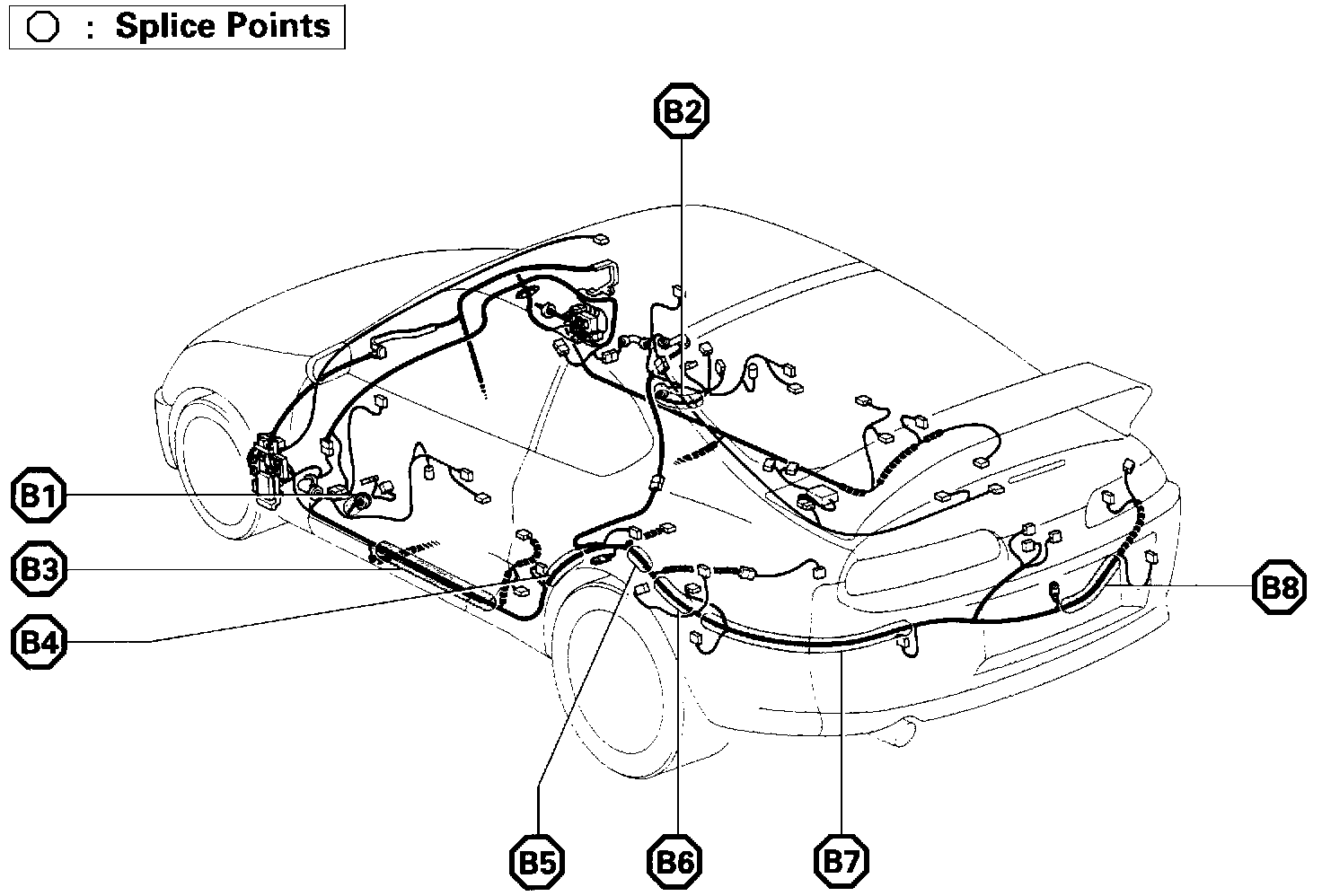

Location Of Splice Points (Fig 32):




FIG 32

Location Of Splice Points (Fig 38):




FIG 38

Location Of Splice Points (Fig 40):




FIG 40
