Body - Fuel Lid Lock Cable Rattles
REF.: BODYNO.: BO95-001
DATE: JANUARY 20, 1995
MODEL: AT, ST (CELICA)
CELICA FUEL LID LOCK CONTROL CABLE NOISE
To reduce rattling noises heard from the left hand quarter panel area caused by the free play of the fuel lid lock control cable, urethane foam and vinyl tape have been added to the cable as shown in Fig. 1. A Field Fix has also been developed and is described in this TSB.
PRODUCTION EFFECTIVE:
VIN PRODUCTION DATE
JT2AT00**R0027504 June, 1994
JT2ST07**R0014675 June, 1994
PART NUMBER INFORMATION:
PART NAME PART NUMBER
Cable Sub-Assembly, Fuel Lid Lock Control Remains Unchanged
FIELD FIX METHOD:
Removing the following interior components will provide easier cable access. (Refer to the Body section of the repair manual for proper removal procedures if needed).
^ REAR SEAT CUSHION AND SEAT BACK
^ REAR DECK TRIM COVER
^ LH DECK TRIM SIDE PANEL
^ LH QUARTER TRIM PANEL
(a) Disconnect the fuel lid lock control cable from the fuel lid lock.
(b) Carefully pull the cable through the wheelwell. This will provide easier access when installing urethane foam (e.g. 3M Scotchfoam or equivalent) onto the cable.

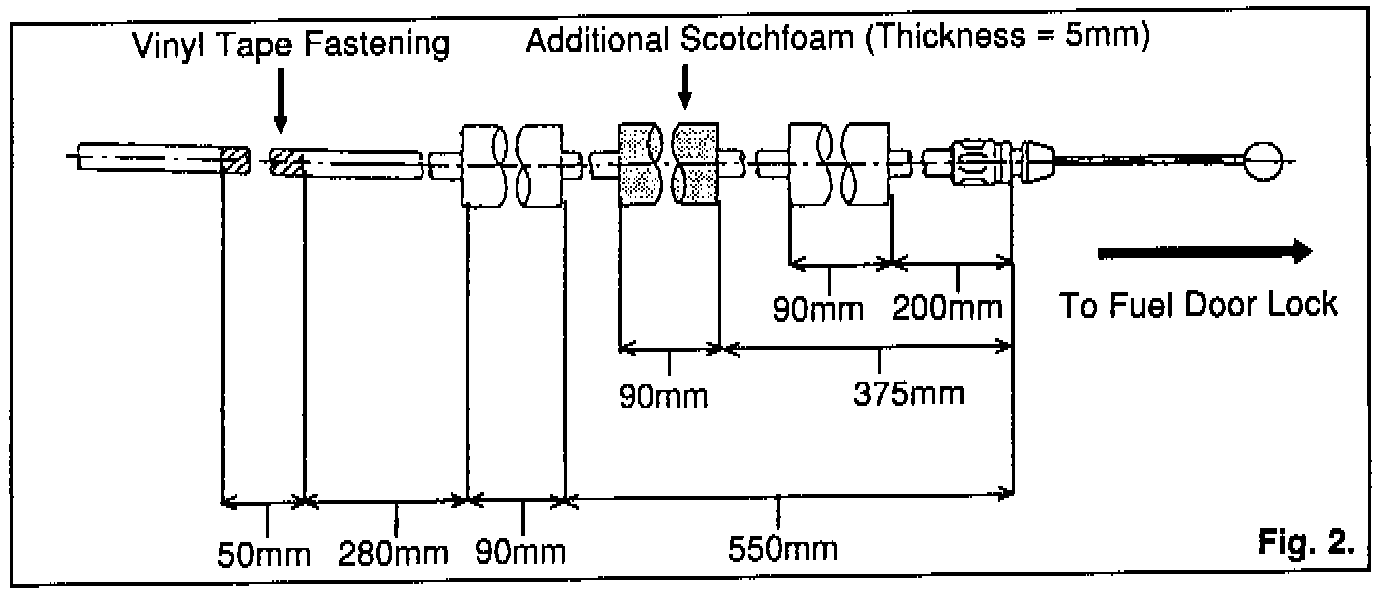

(c) Install 3M Scotchfoam - Single Coated Vinyl Foam 1/4" Black (3M P/N 02120007262) or equivalent around the circumference of the fuel lock cable. (See Fig. 2 for exact dimension and location/position of Scotchfoam).
(d) Affix the cable to the wheelwell using vinyl tape. (See Fig. 2 for exact placement of tape).
(e) Reroute and reattach the cable to the fuel lid lock assembly and reinstall the seat and interior trim panels.
NOTE:
If vehicle is equipped with a moonroof, fasten the moon roof drain hose and fuel lid lock control cable together with vinyl tape. This will limit drain hose and cable movement that may cause additional rattle noise.
