Body - Mudguard Kit Installation

REF.: ACCESSORIES

NO.: AX93-003

DATE: JUNE 25, 1993

MODEL: SUPRA (JA)

'93 TOYOTA SUPRA MUDGUARD INSTALLATION INSTRUCTIONS

A front mudguard kit is now available for installation on 1993 Supra. Be sure to thoroughly clean all attachment areas and carefully follow the installation procedures below.

INSTALLATION PROCEDURE:

Front Mudguards

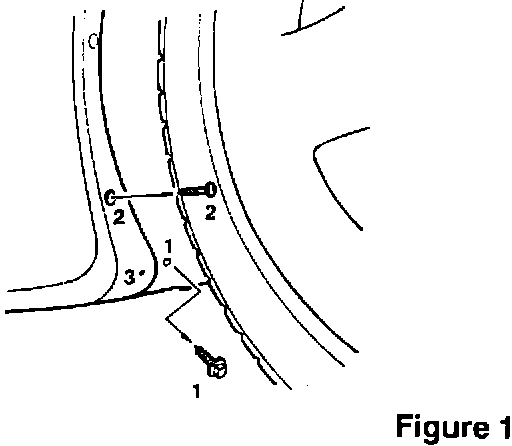

1. Take out screw 1, which is at the inside rear of the front fender, at point 1. (see Figure 1)

2. Take out screw 2, which secures the fender well trim molding, at point 2 and discard. (see Figure 1)

Note:
There is a small hole existing in the fender well molding, at point 3, to install an additional mudguard screw. (see Figure 1)

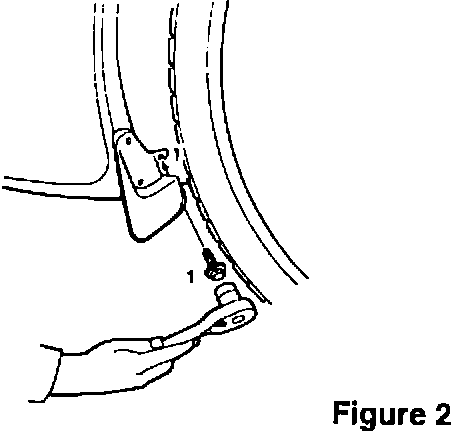

3. Re-using screw 1, install mudguard at point 1, while holding the mudguard against the body to insure proper fit and tighten. (see Figure 2)

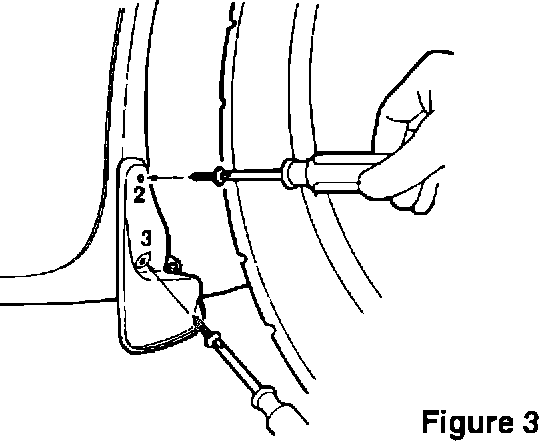

4. Using two screws (supplied in the kit), install mudguard at points 2 and 3, while holding mudguard against the body to insure proper fit and tighten down screws. (see Figure 3)

TOOLS REQUIRED:

X Ratchet
X 10 Millimeter Socket
X No. 1 Phillips Screw Driver

PARTS INFORMATION:

Part Number Part Name

76095-14010 Supra Mudguard Kit
