Hardtop - Removable Roof Lock Stripping

REF.: BODY

NO.: BO95-010

DATE: OCTOBER 20, 1995

MODEL: JA (SUPRA)

SUPRA REMOVABLE ROOF - LOCK STRIPPING

To reduce the possibility of stripping the removable roof lock hexagon socket, two modifications have been made:

1. The hexagon socket depth of the removable roof lock has been increased from 4 mm to 5 mm.

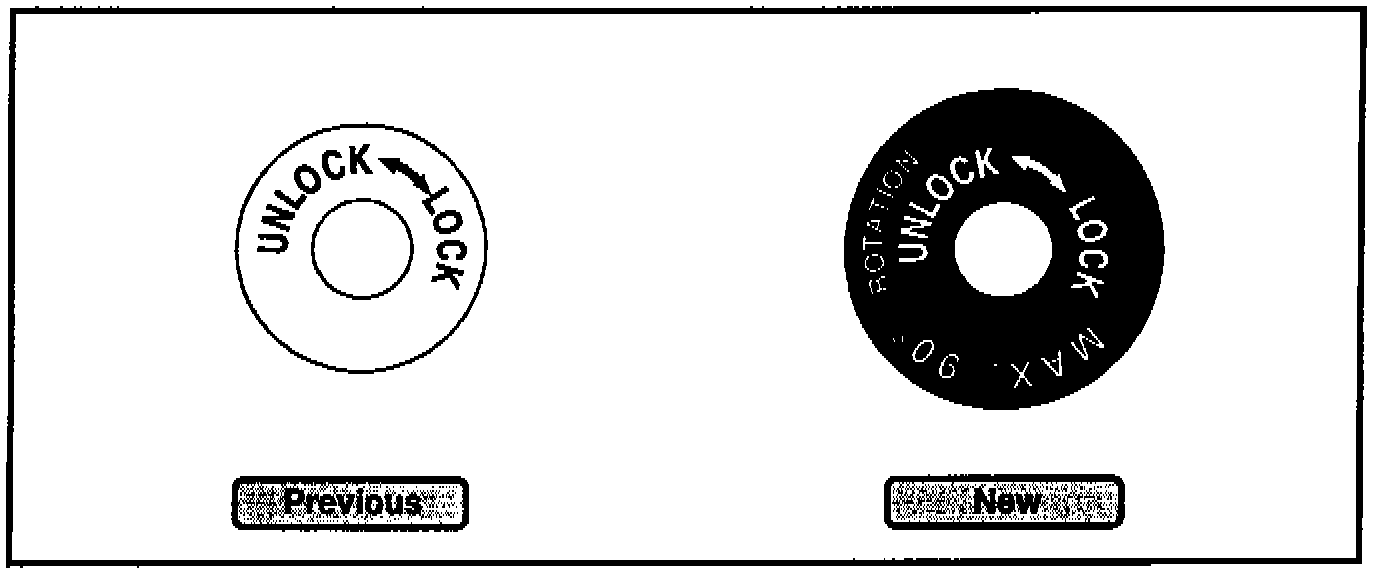

2. The roof headlining trim # 2 has been enlarged and WHITE lettering indicating "MAX 90° ROTATION", for locking and unlocking the removable roof lock, has been added as shown.

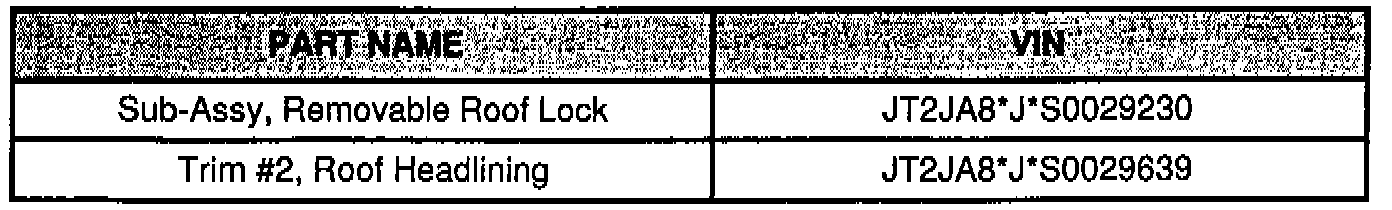

PRODUCTION EFFECTIVE:

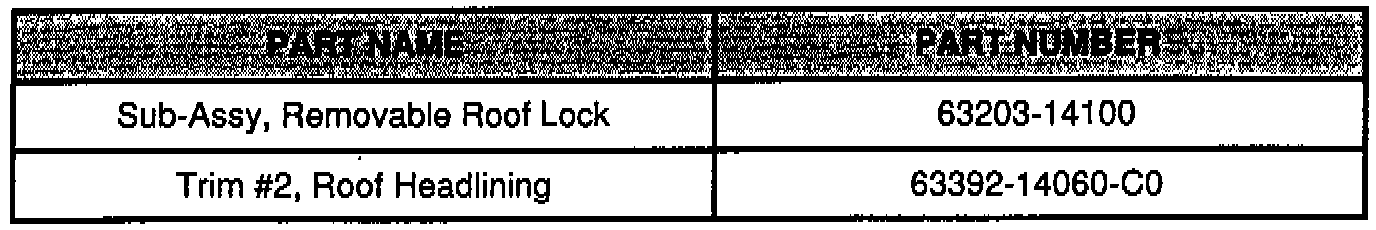

PART NUMBER INFORMATION:





WARRANTY INFORMATION:
