Paint - Codes And Cross References For Refinishing

REF.: PAINT

NO.: PA93-002

DATE: DECEMBER 03, 1993


MODEL: ALL MODELS

1994 PAINT & REFINISH FORMULA CODES

Included is a list of all 1994 OEM paint codes and refinish paint codes for the following refinish paint manufactures: BASF, DuPont, PPG, Sherwin Williams, Sikkens and Spies-Hecker.

NOTE:
All metallic colors listed have a clear coat finish.

Color number 046 (Opal White Pearl) is a tricoat (three stage paint), consisting of base color coat, intermediate coat (pearl), and a clear top coat.

Please contact your local paint representative for the actual paint mixing formulas or if you need help in color matching.

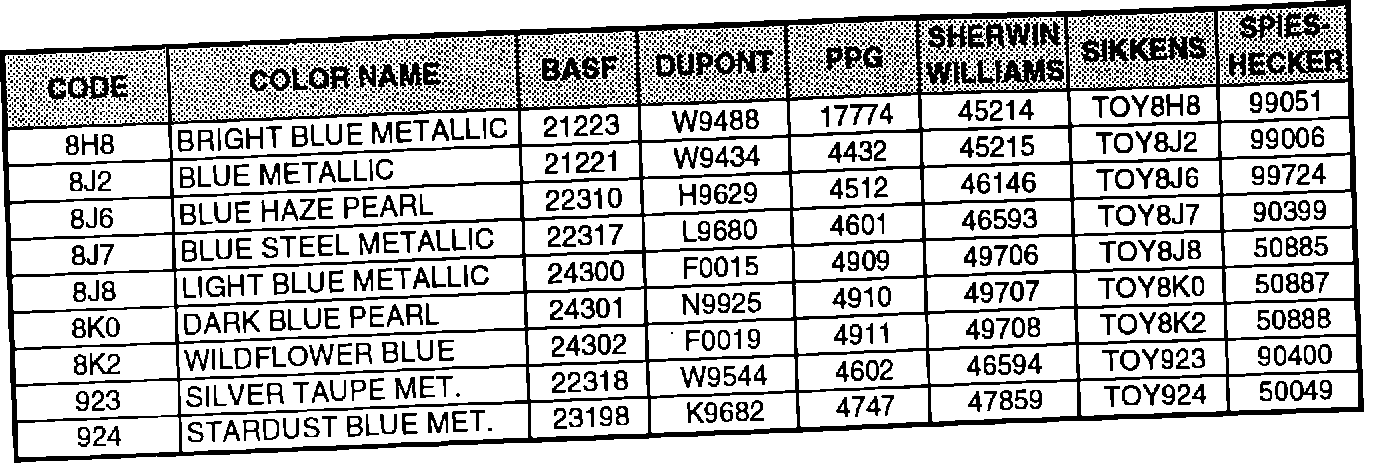

1994 TOYOTA PAINT REFINISH FORMULA CODES






TWO TONE COMBINATIONS

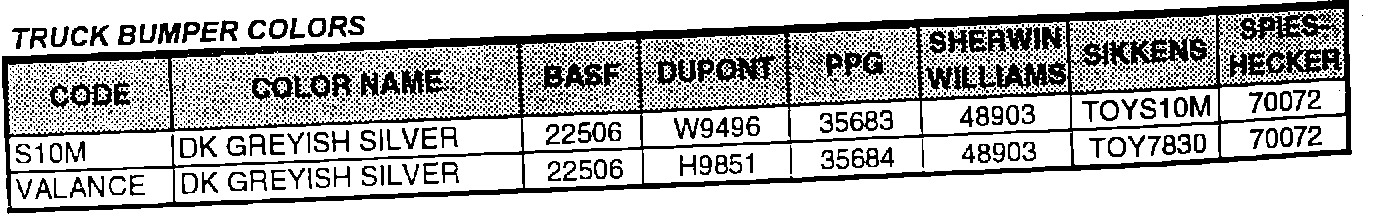

TRUCK BUMPER COLORS
