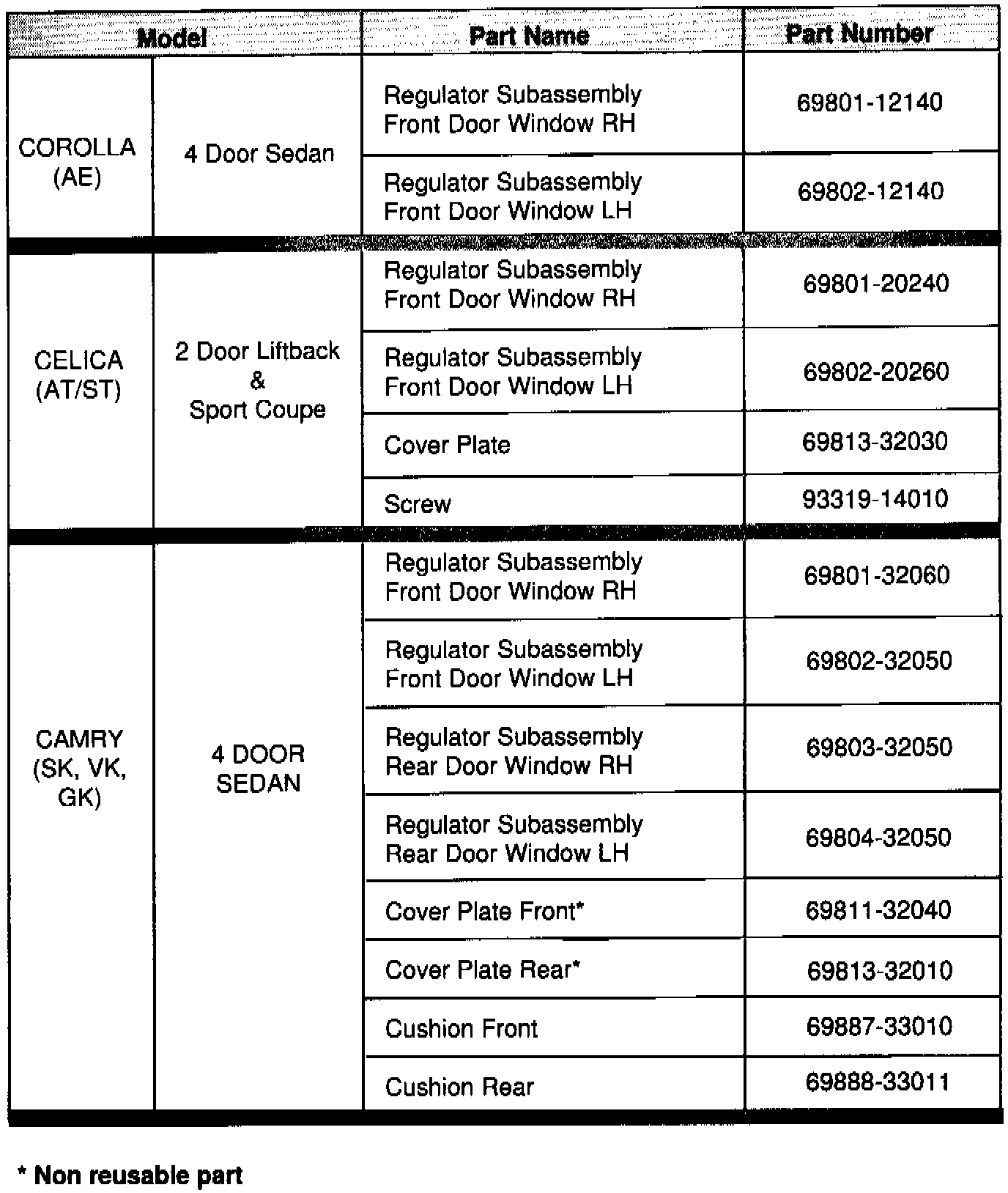

Part Number Information

[Note:]
^ For the COROLLA, the regulator subassembly includes the cover plate.

^ For the CAMRY, the regulator subassembly includes the cover plate and cushion.

^ First check whether the motor operates normally. If motor operation is normal, replace only the regulator subassembly.

^ If the motor must be replaced, replace the whole regulator assembly.

^ When replacing the subassembly, follow the "Repair Procedures" instructions.
