Window Regulator Installation

1. INSERT THE WINDOW REGULATOR DRUM INTO THE MOTOR HOUSING.

[Note:]
^ To prevent the window regulator drum and cable from coming off, do not tilt the drum, subject it to shocks or use force. If the cable comes off the drum, do not rewind the cable or reuse it. After the window regulator is installed, do not operate it by itself (some window regulators do not utilize a stopper).

^ Multipurpose grease (P/N 00289-1WG00) should be applied to all moving parts, especially inside the motor housing and sides of drum.

Type "A" holding tool





^ Apply grease inside the motor housing see Figure 4.

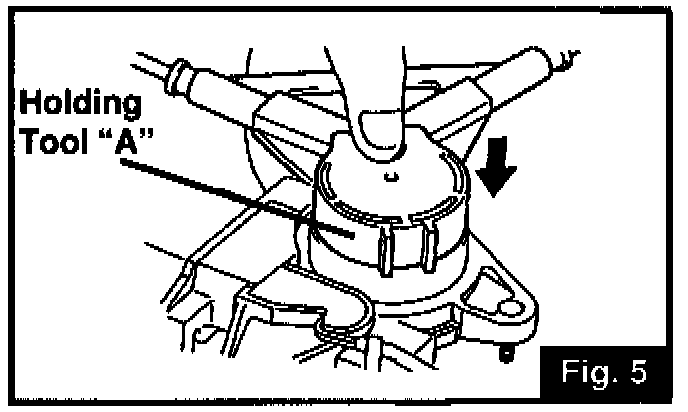

^ Using holding tool type "A", match the holding tool with the motor housing see Figure 5.

^ Push down on the wire guide and window regulator drum while inserting into motor housing.

[Note:]
If you experience difficulty inserting the window regulator drum into the motor housing, slowly slide the window glass carrier bracket and align the drive shaft of the motor housing with the window regulator drum.

Type "B" holding tool

^ Apply grease inside the motor housing see Figure 4.

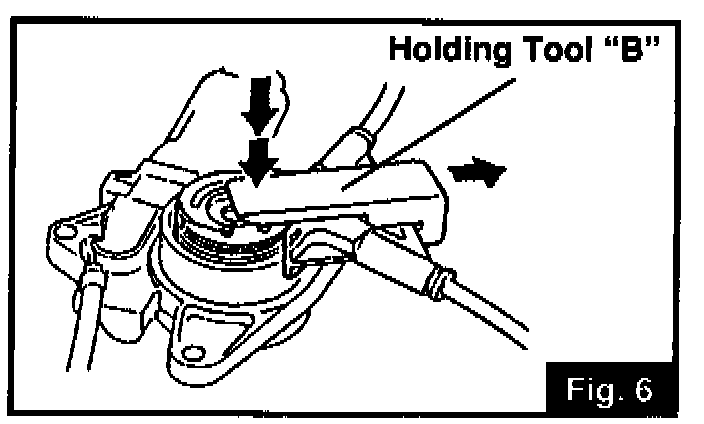

^ Using Holding Tool "B", partially insert the window regulator drum into the motor housing see Figure 6.

^ Remove Holding Tool "B" and push the window regulator drum into the motor housing.

[Note:]
If you are experiencing difficulty inserting the window regulator drum into the motor housing, slowly slide the window glass carrier bracket and align the drive shaft of the motor housing with the window regulator drum.

^ Apply grease to the sides of the window regulator drum.

2. INSTALL COVER PLATE.

Screw Type Cover Plate

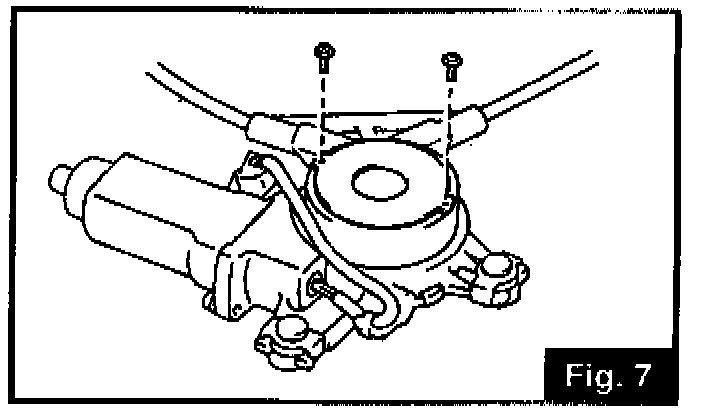

^ Install the original cover plate and screws see Figure 7.

Crimped Type Cover Plate

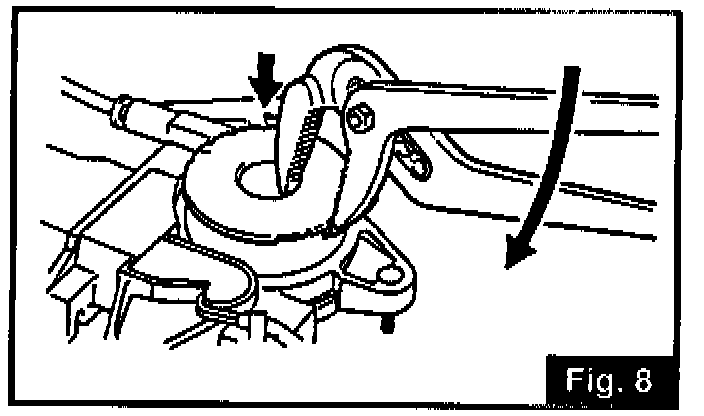

^ Use adjustable pliers to crimp the tab of the cover plate see Figure 8.

[Note:]
^ Use a new cover plate.

^ Do not hit the cover plate with a hammer, etc.

^ Do not damage the motor housing.
