Seat

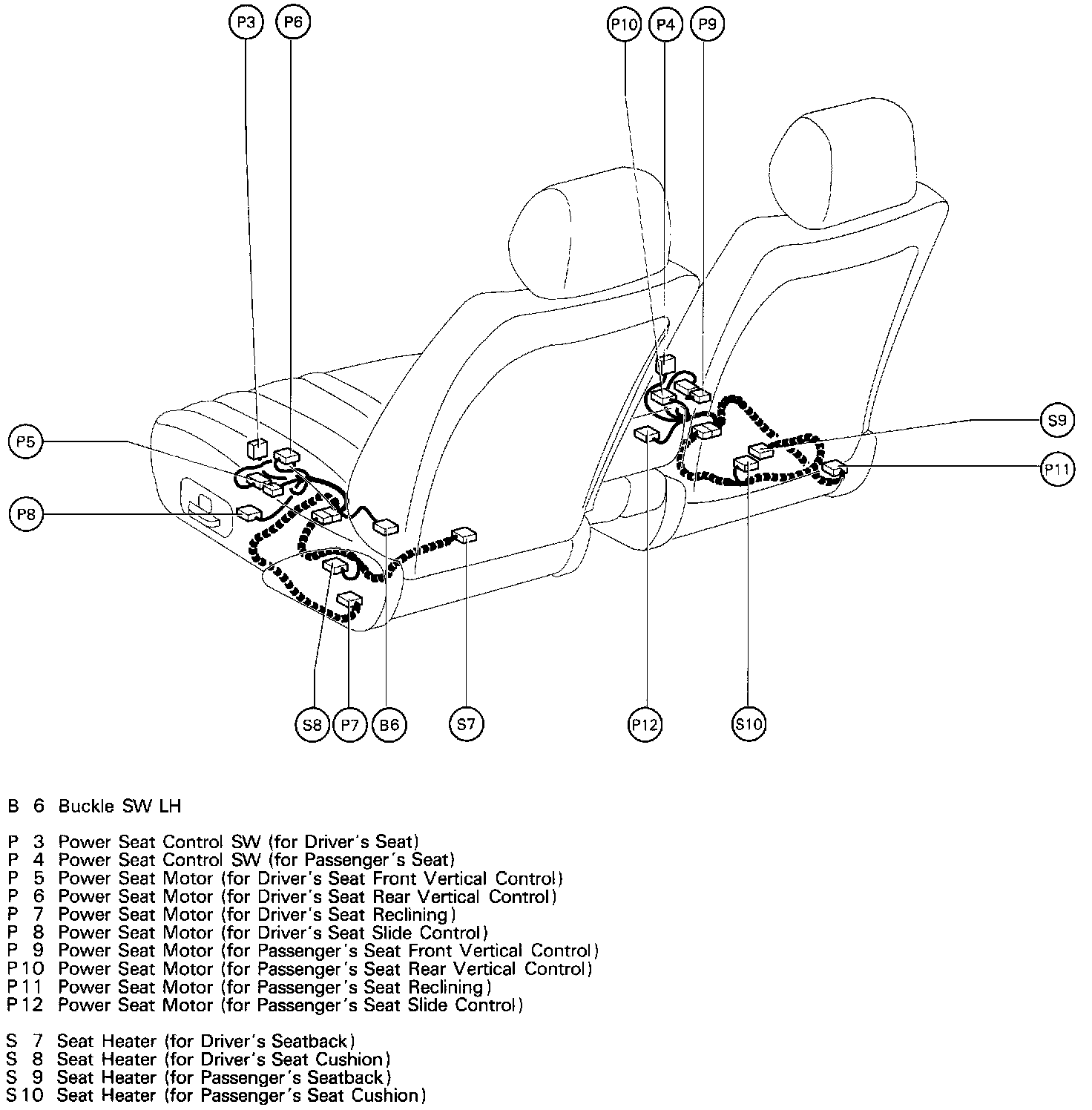

Position Of Parts In Seat (Fig 38):

B 6 Buckle SW LH


P 3 Power Seat Control 5W (for Driver's Seat)
P 4 Power Seat Control 5W (for Passenger's Seat)
P 5 Power Seat Motor (for Driver's Seat Front Vertical Control)
P 6 Power Seat Motor (for Driver's Seat Rear Vertical Control)
P 7 Power Seat Motor (for Driver's Seat Reclining)
P 8 Power Seat Motor (for Driver's Seat Slide Control)
P 9 Power Seat Motor (for Passenger's Seat Front Vertical Control)
P10 Power Seat Motor (for Passenger's Seat Rear Vertical Control)
P11 Power Seat Motor (for Passenger's Seat Reclining)
P12 Power Seat Motor (for Passenger's Seat Slide Control)

S 7 Seat Heater (for Driver's Seatback)
S 8 Seat Heater (for Driver's Seat Cushion)
S 9 Seat Heater (for Passenger's Seatback)
S10 Seat Heater (for Passenger's Seat Cushion)
