Interior Trim - Sun Visor Rattle Noise

REF.: BODY

NO.: BO005-96

DATE: APRIL 26, 1996

MODEL: AVL

AVALON SUNVISOR RATTLE NOISE

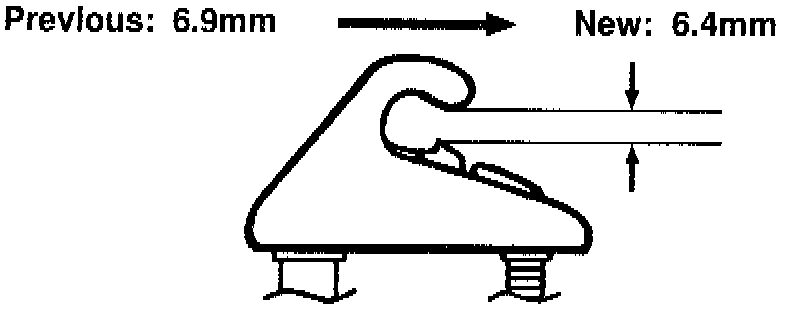

A rattle noise may be heard from the driver and passenger sunvisors on some 1995 Avalons. To eliminate this condition the sunvisor clip opening size has been decreased in production as shown.

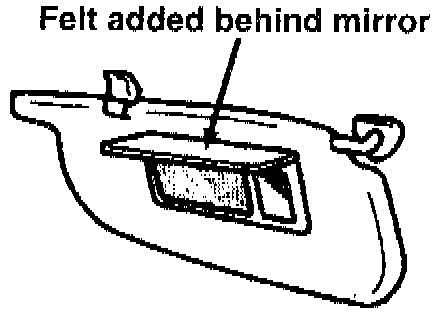

Additionally, felt material was added behind the mirror to provide a tighter fit between the mirror and frame.

PRODUCTION EFFECTIVE:

Starting VIN: 4T1GB1*E*SU057447 (For reference only)





PART NUMBER INFORMATION:

FIELD FIX:

To correct this condition, remove the original sunvisor clips and replace them with new ones. If the condition still exists, add felt material behind the mirror to prevent rattle noise.

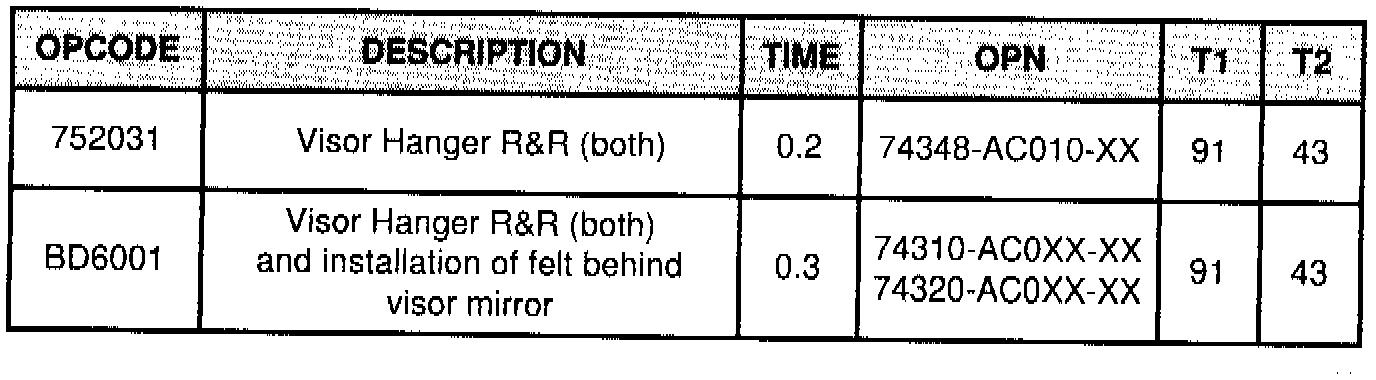

WARRANTY INFORMATION:
