Engine Control System

If a malfunction code is displayed during the diagnostic trouble code check in test mode, go to the "Trouble Code Chart" for that code.
NOTE: Parameters listed in the charts may not be exactly the same as your reading due to the type of the instruments or other factors.

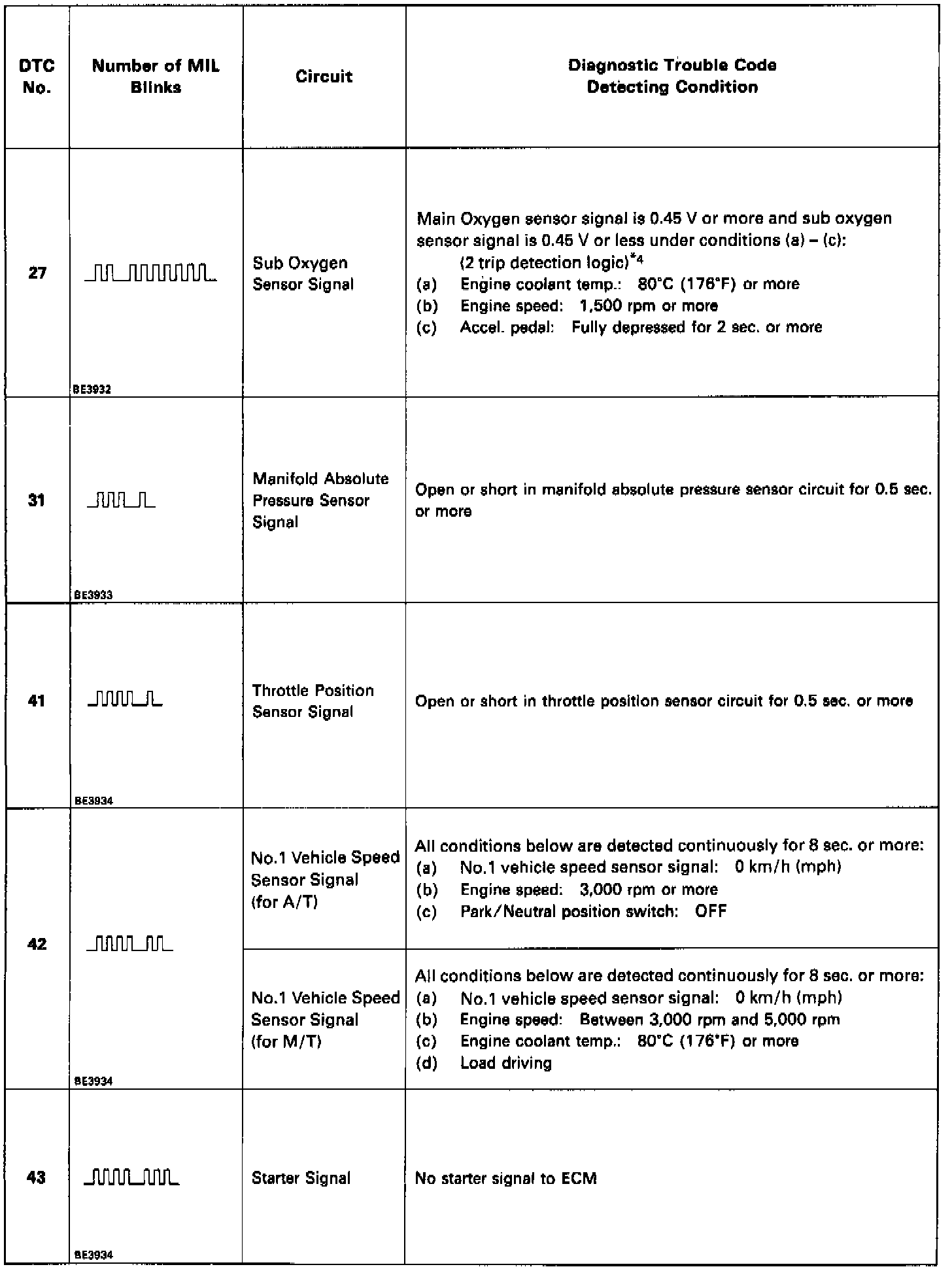

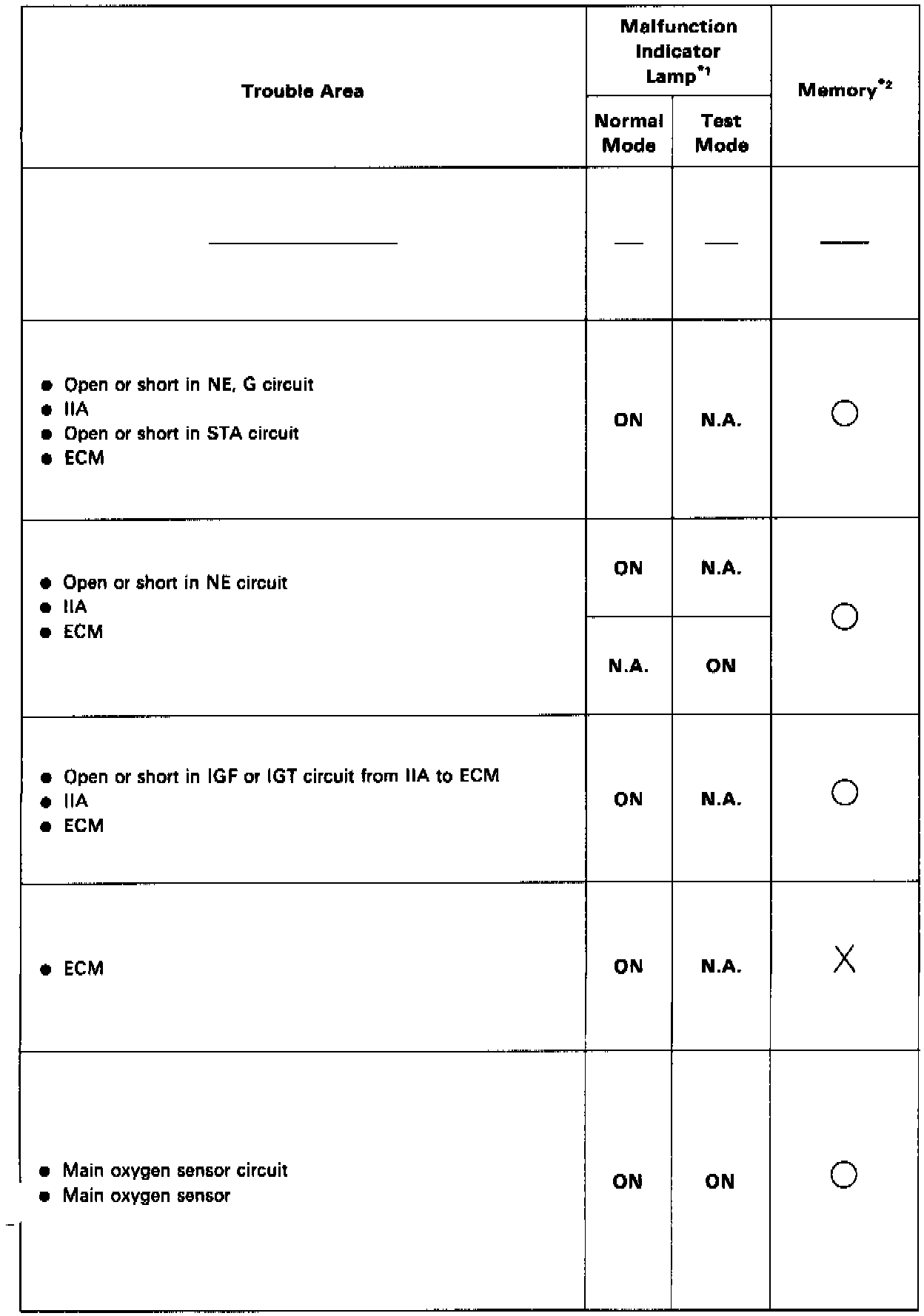

DTC 12 - DTC 21

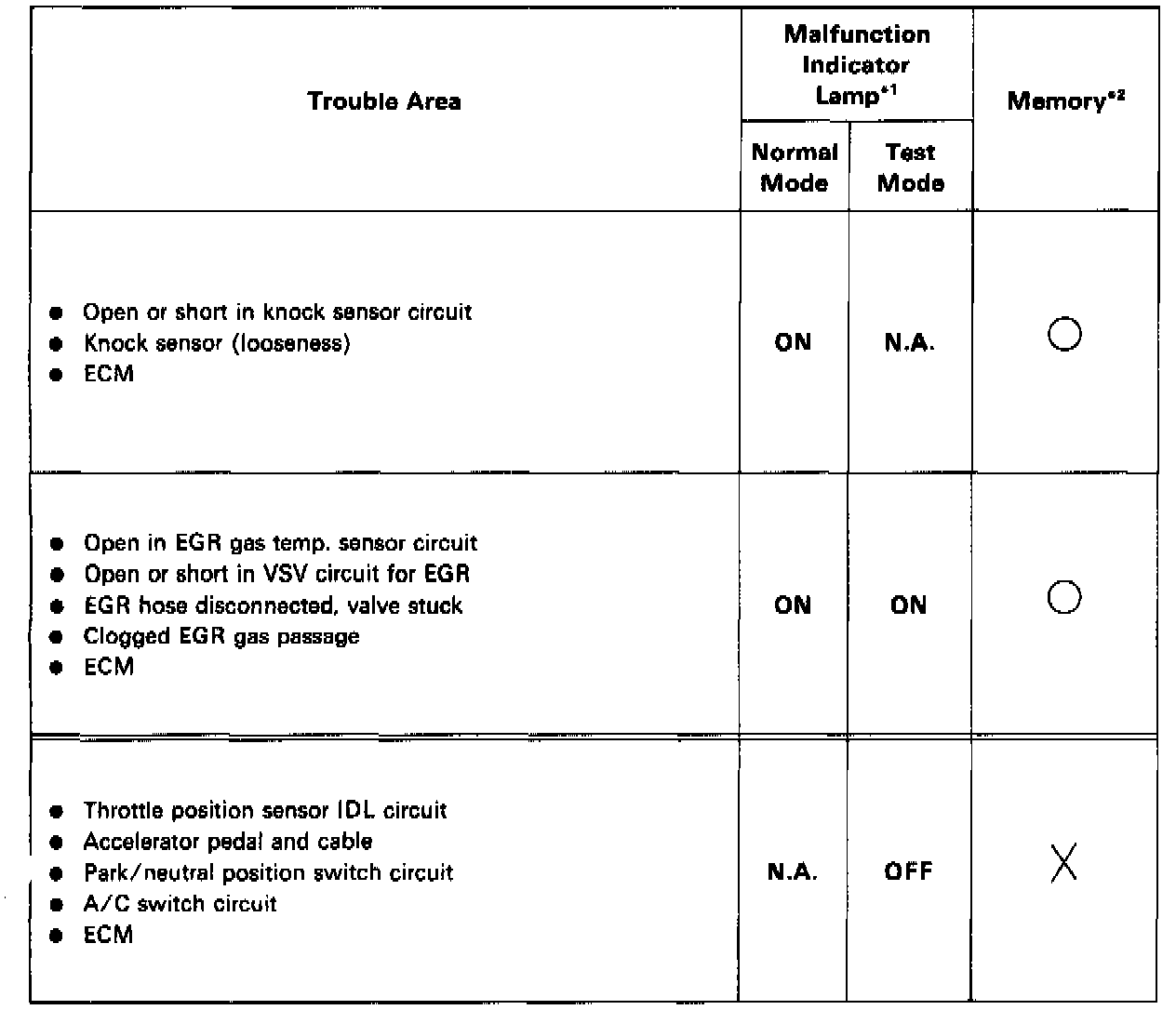

DTC 22 - DTC 26








DTC 27 - DTC 43








DTC 51 - DTC 71

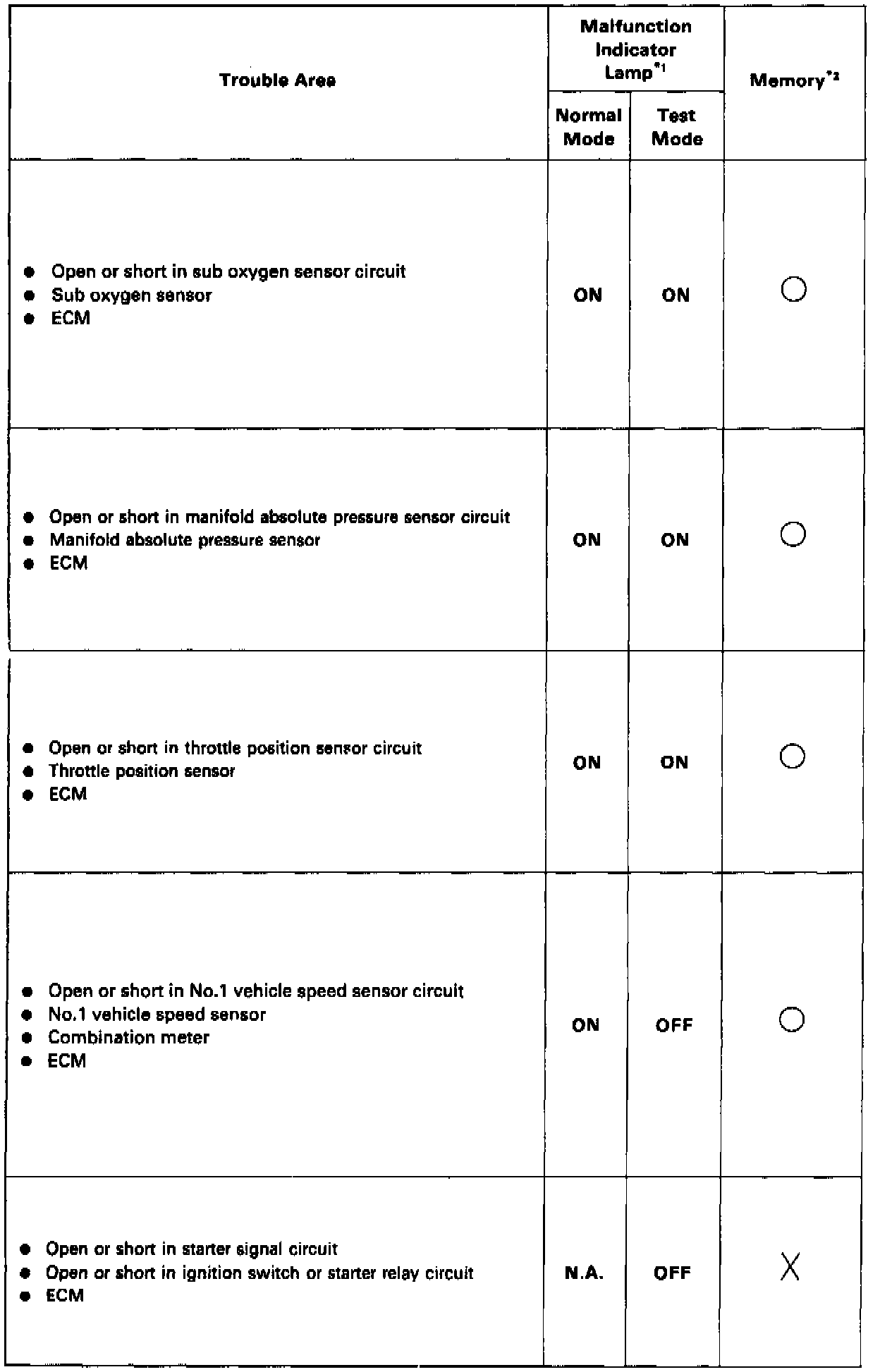

REMARKS
*1: "ON" displayed in the "Normal Mode" or "Test Mode" columns indicates that the Malfunction Indicator Lamp lights up when a malfunction is detected.
"OFF" Indicates that the Malfunction Indicator Lamp does not light up during malfunction diagnosis, even if a malfunction is detected.
"N.A." indicates that the item is not included in malfunction diagnosis.

*2: "O" in the memory column indicates that a diagnostic trouble code is recorded in the ECM memory when a malfunction occurs.
"X" indicates that a diagnostic trouble code is not recorded in the ECM memory even if a malfunction occurs.
Accordingly, output of diagnostic results (in Normal or Test Mode) must be performed before turning the ignition switch OFF.

*3: Vehicles with A/T ONLY.

*4: This indicates items for which "2 trip detection logic" is used. With this logic, when a logic malfunction is first detected, the malfunction is temporarily stored in the ECM memory. If the same malfunction is detected again during the second drive test, this second detection causes the Malfunction Indicator Lamp to light up.



The 2 trip repeats the same mode a 2nd time. (However, the ignition switch must be turned OFF between the 1st trip and 2nd trip).
NOTE: In the Test Mode, the Malfunction Indicator Lamp lights up on the 1st trip if a malfunction is detected.
