Transmission Control Systems

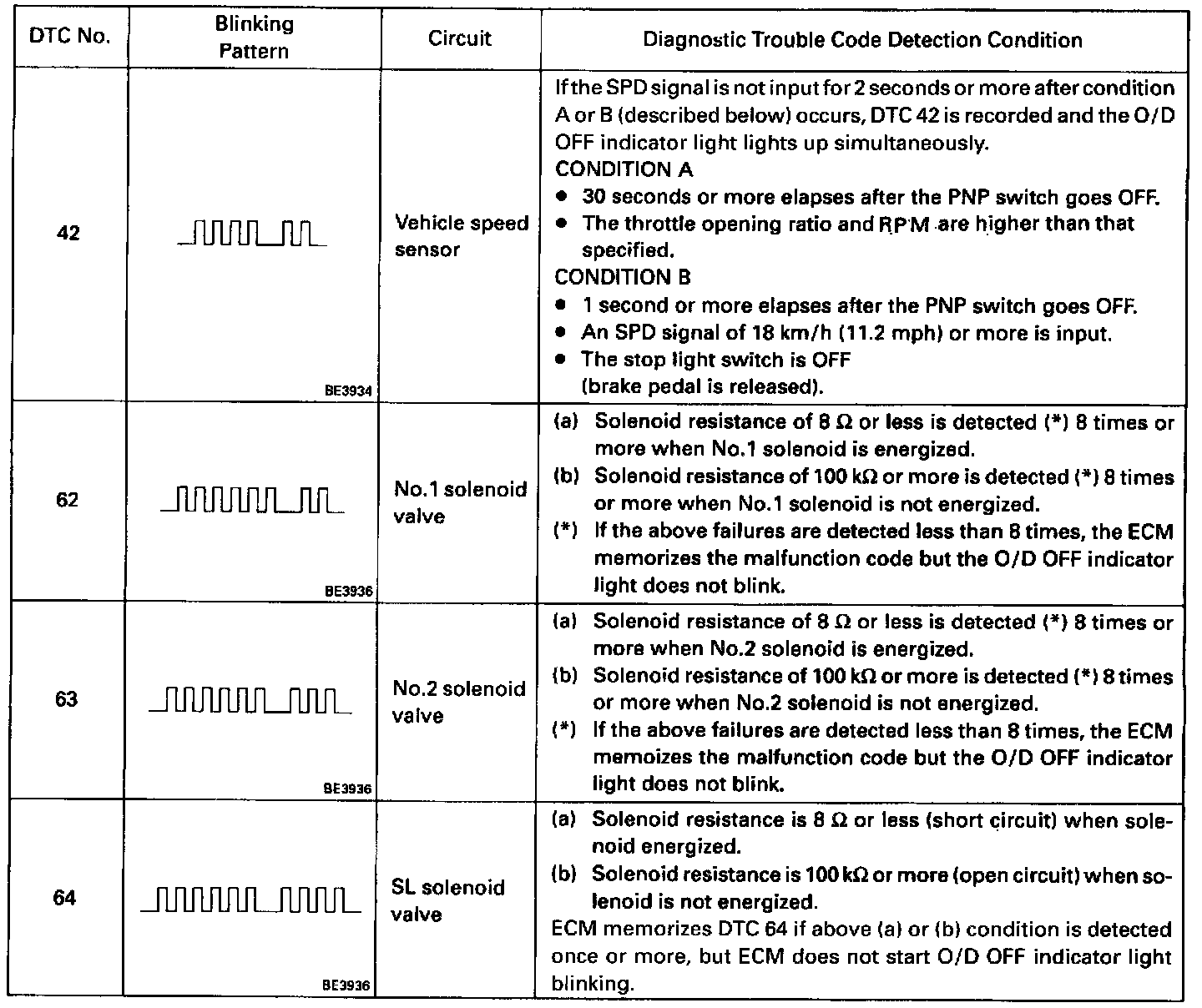

If a trouble code is displayed during the diagnostic trouble code check, check the circuit listed for, that code in the table below.









*1: "O" mark means "O/D OFF" light blinks once every 2 seconds.
"X" mark means 'O/D OFF' light never blinks.

*2: "0" marks means the ECM memorizes the malfunction code if the ECM detects the diag. trouble code detection condition.

HINT:
^ If the malfunction returns to normal while a malfunction warning is being output, the "O/D OFF" indicator light stops blinking and goes off. However, the trouble code is retained in memory until it is cleared from memory.

^ If the diagnosis system output a trouble code even though the "O/D OFF" indicator was not blinking, there is intermittent trouble. Check all the connections in the circuits corresponding to that code.

^ Codes 42, 62, 63 and 64 are limited to short or open circuits in the electrical system comprised of the solenoids, wire harnesses, and connectors. The ECM is unable to detect mechanical trouble (sticking, for example) in the solenoid valves.
