Flow of Diagnosis

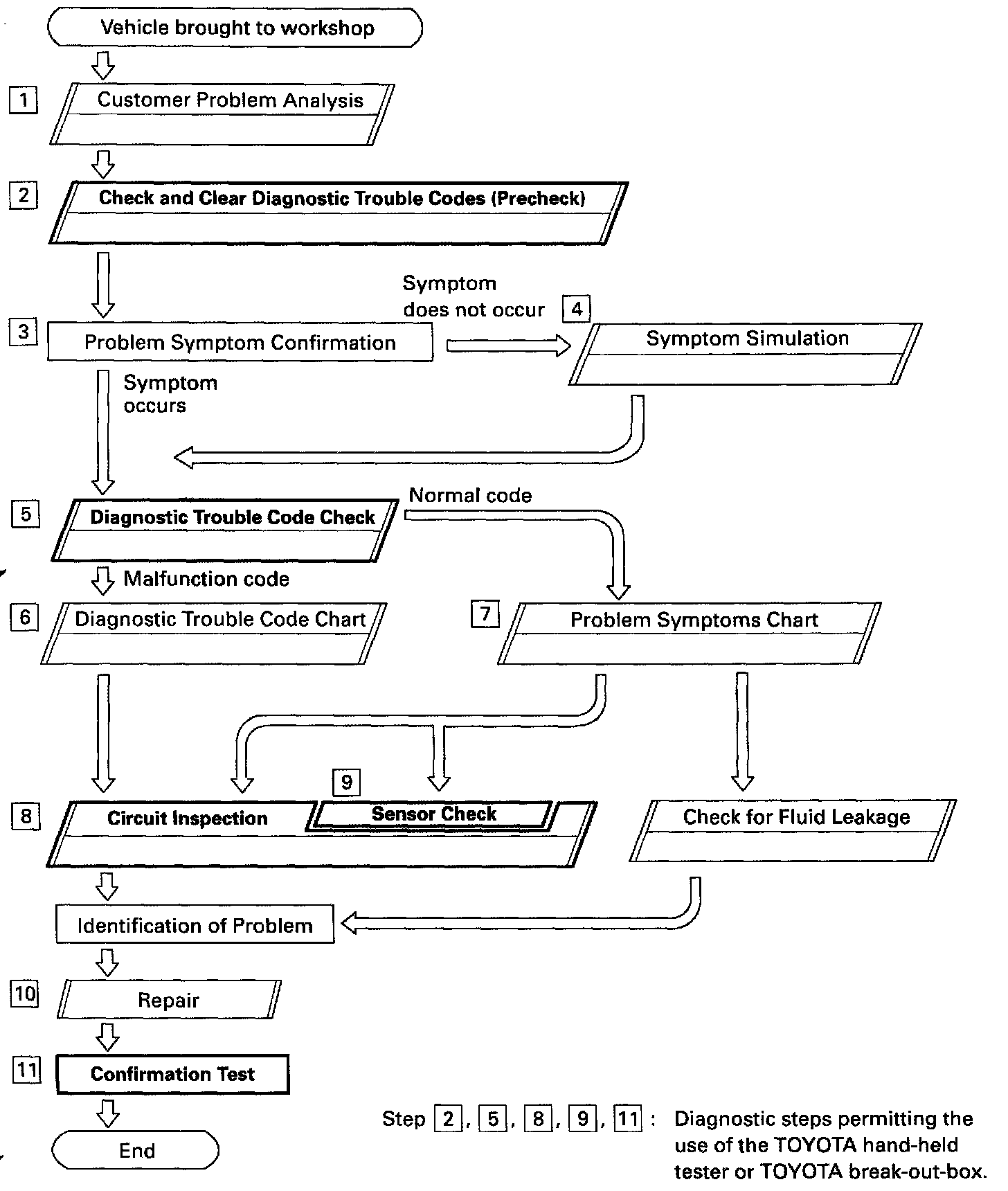

HOW TO PROCEED WITH TROUBLESHOOTING


- Perform troubleshooting in accordance with the procedure on the following pages.
