Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Testing and Inspection
>>
Front
Front

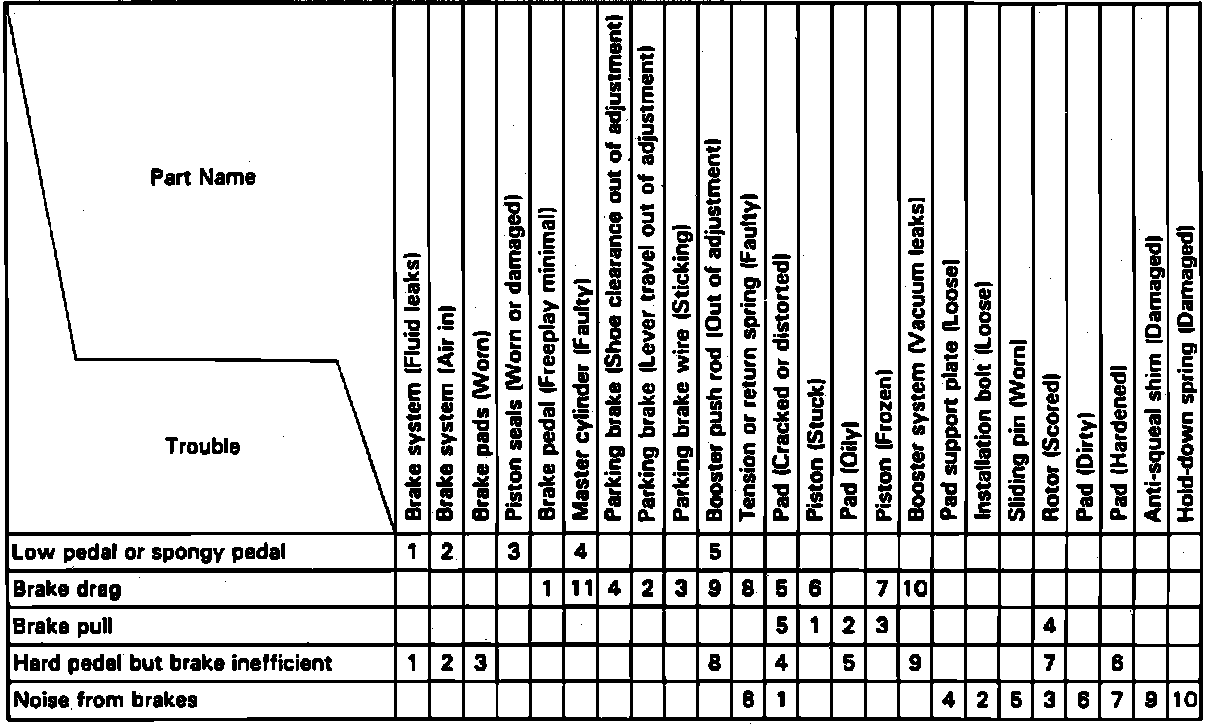

Fig. 1 Disc brake troubleshooting chart:
Refer to the chart in
Fig. 1
for troubleshooting.
