Park/Neutral Position Switch Circuit

Park / Neutral Position Switch Circuit

CIRCUIT DESCRIPTION
When the shift position is put in except D position, a signal is sent from the park/neutral position switch to the ECU. When this signal is input during cruise control driving, the ECU cancels the cruise control.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

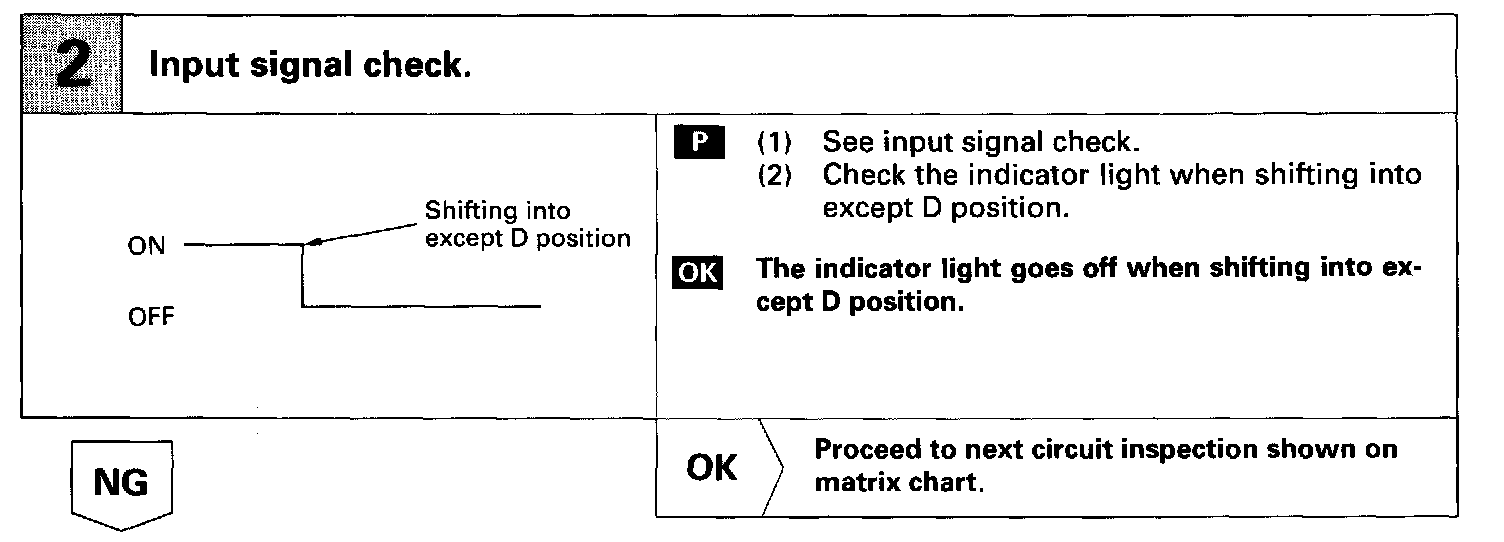

Step 2:

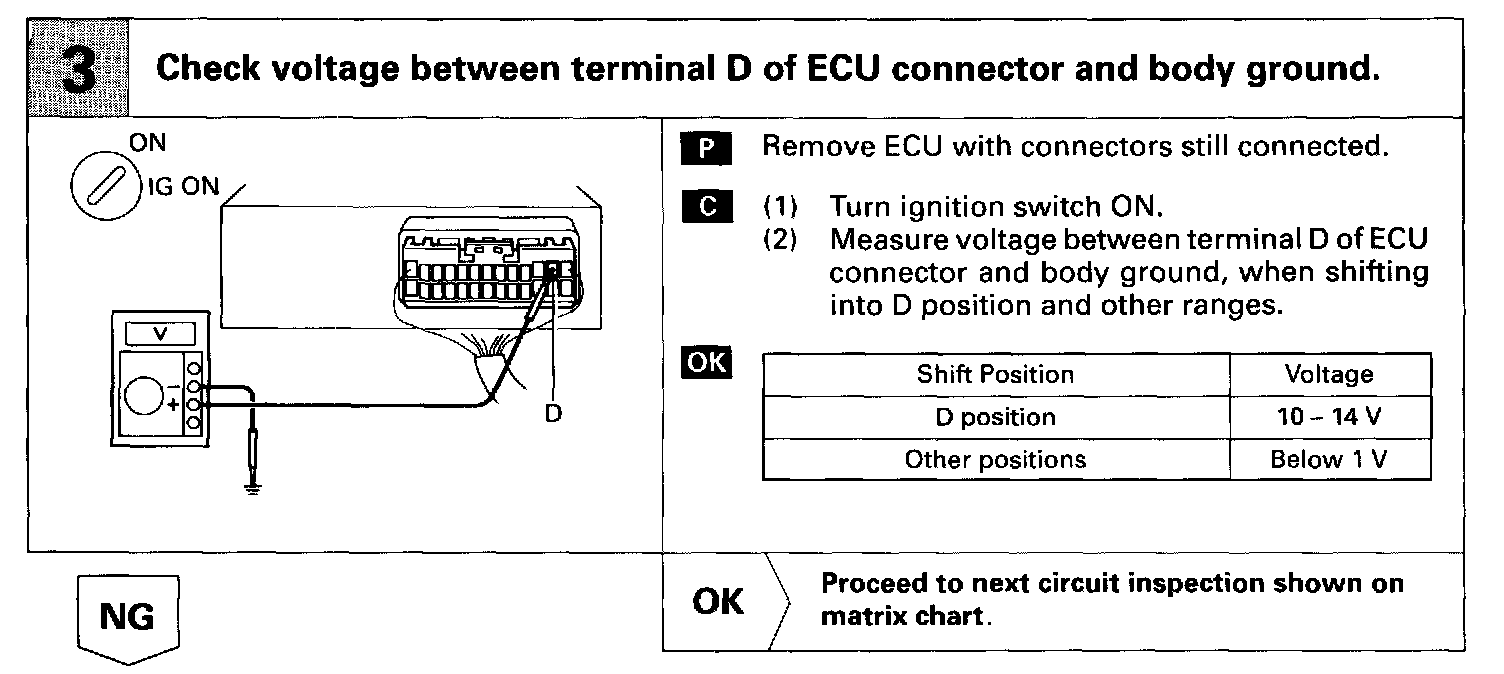

Step 3:

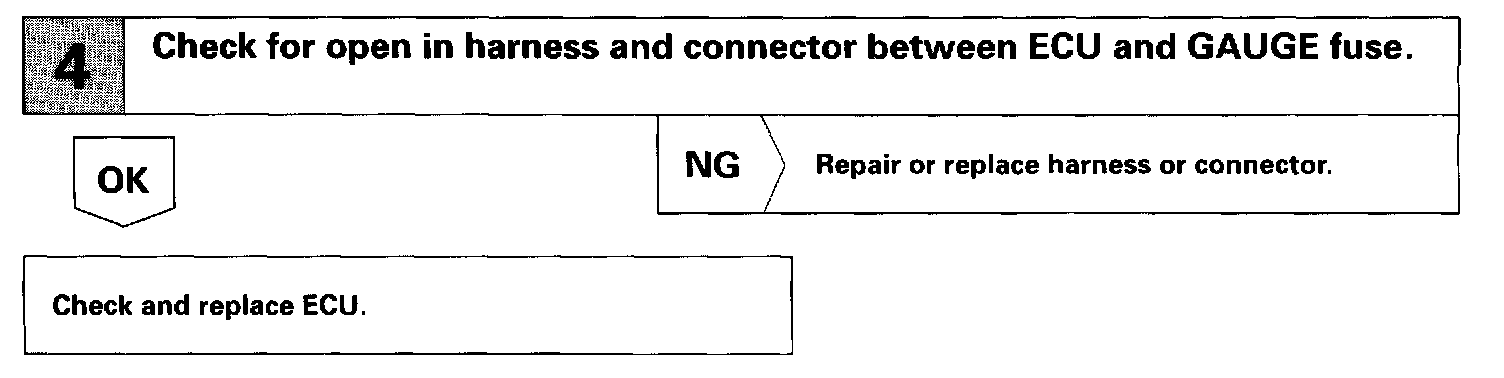

Step 4:
