Parking Brake Switch

Parking Brake Switch Circuit

CIRCUIT DESCRIPTION
When the parking brake lever is pulled up, the parking brake switch sends a signal to the ECU. When this signal is input to the ECU during cruise control driving, the ECU cancels cruise control.

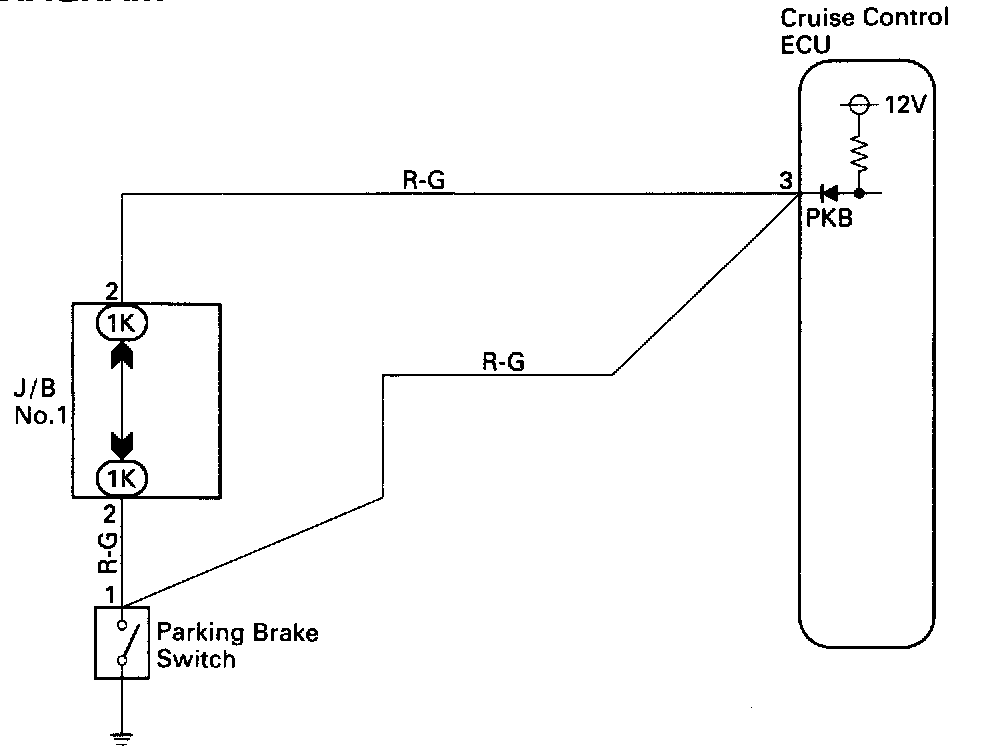

Wiring Diagram:

INSPECTION PROCEDURE

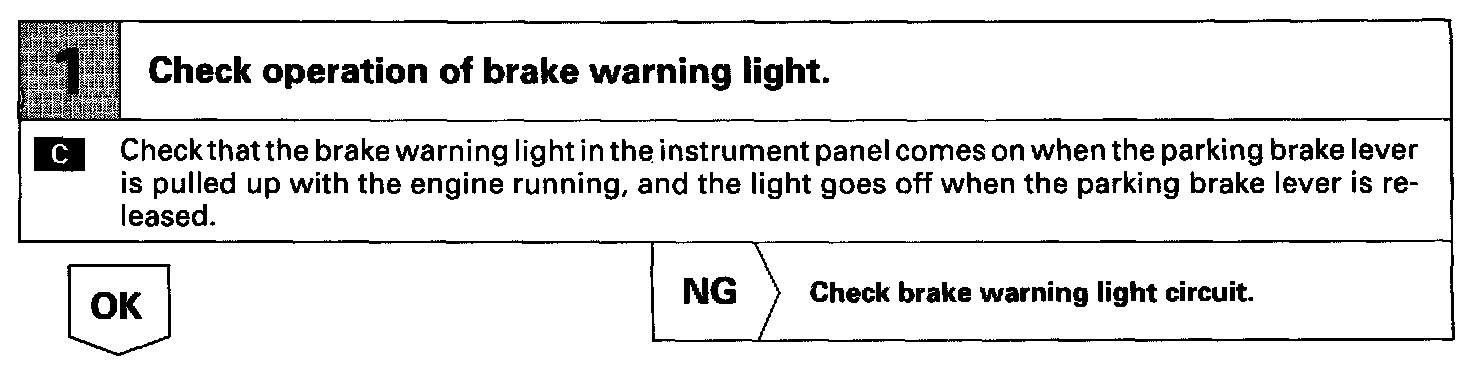

Step 1:

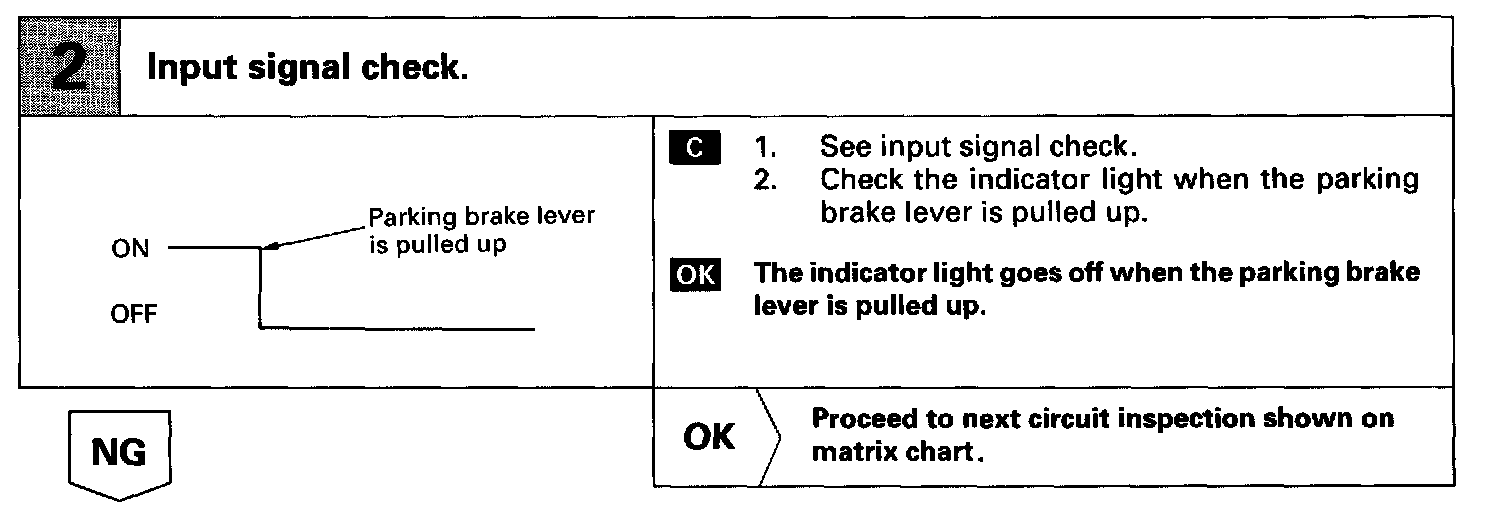

Step 2:

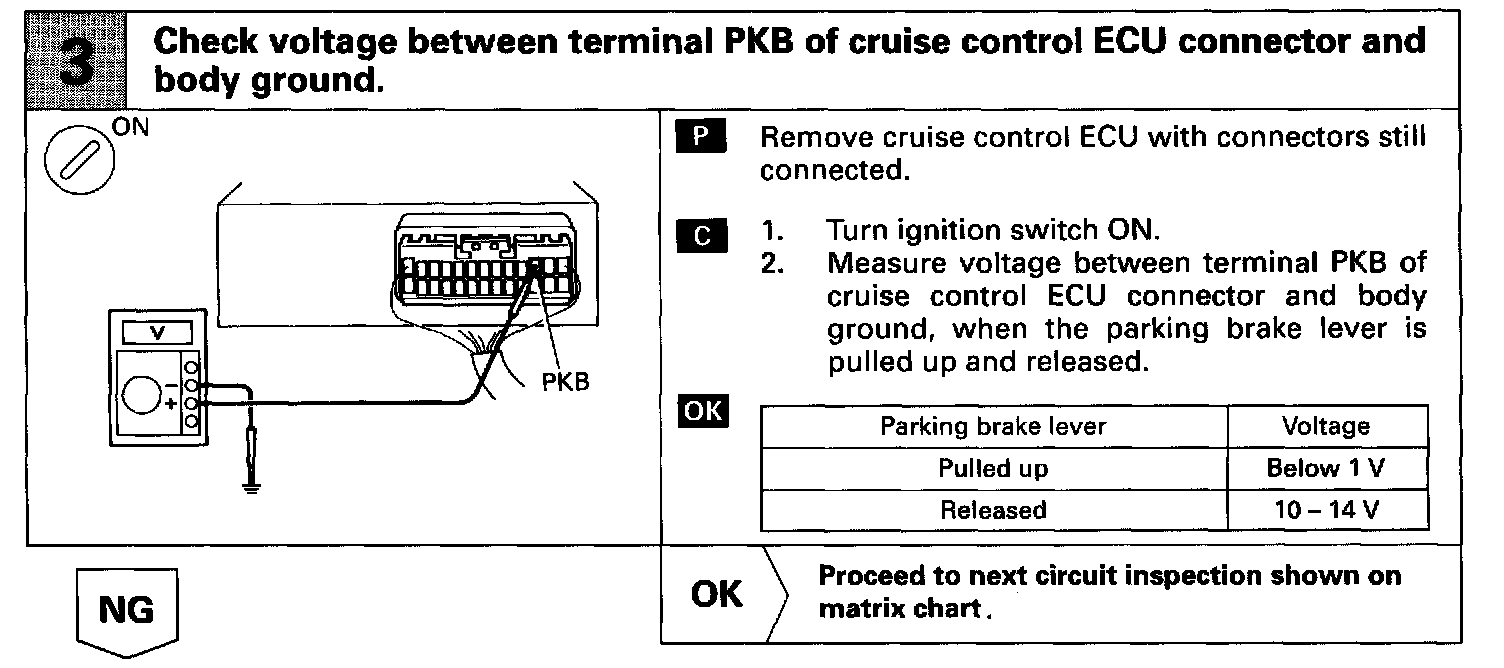

Step 3:

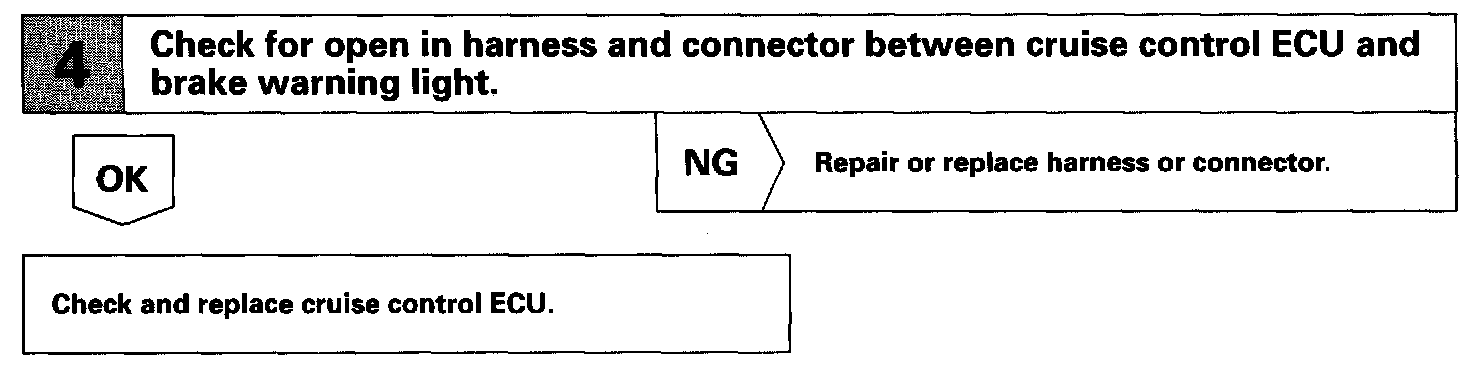

Step 4:
