Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

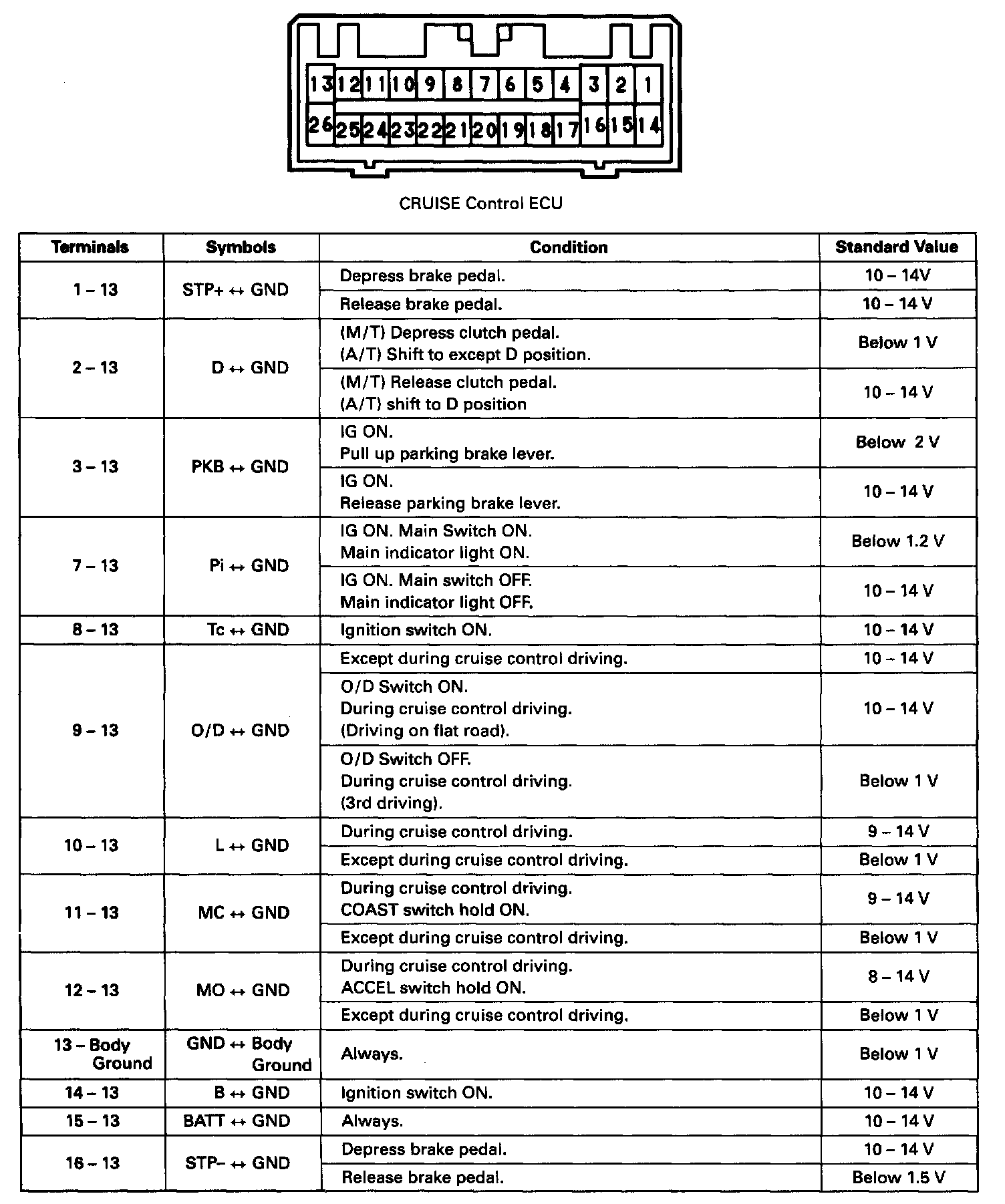

STANDARD VALUE OF ECU TERMINAL
ECU Pinout Values:
ECU Pinout Values (Continued):
