Clearing Trouble Codes







Diagnostic Trouble Code Clearance

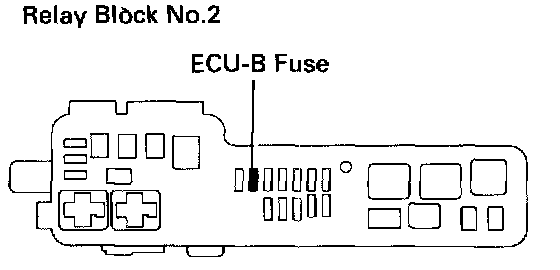

1. After completing repairs the diagnostic trouble code retained in memory can be cleared by removing the ECU-B fuse for 10 seconds or more, with the ignition switch off.
2. Check that the normal code is displayed after connecting the fuse.
