Diagrams
>>
Connector Views
>>
IC3
IC3

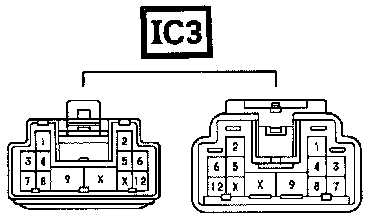

IC3:
Engine Room Main Wire And Cowl Wire (Inside Of R/B No.4)
