Home
>>
Toyota
>>
1995
>>
Celica Coupe L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>

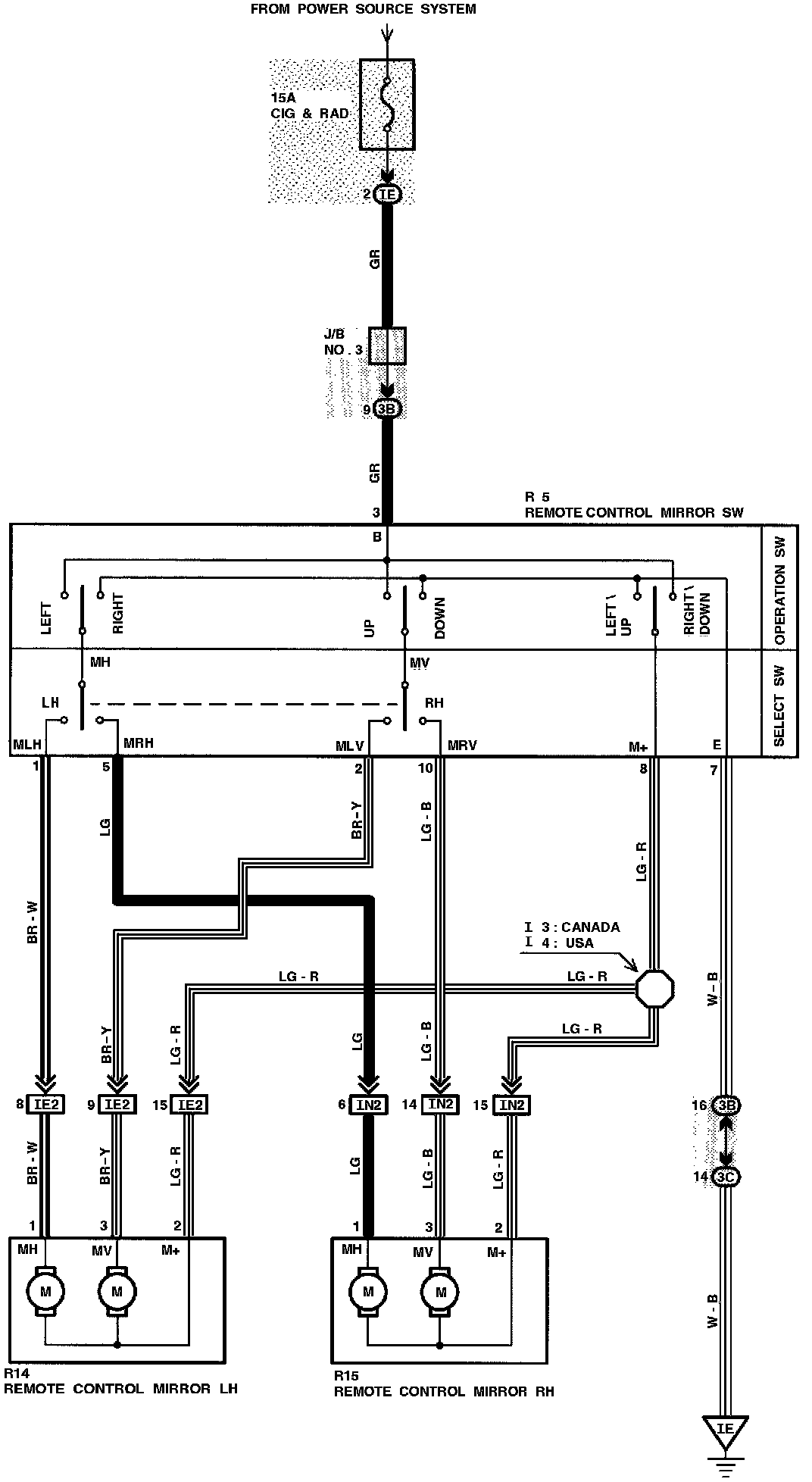

Remote Control Mirror (W/O Power Window)
Remote Control Mirror (W/O Power Window)
Remote Control Mirror (W/O Power Window):
