Celica Coupe L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

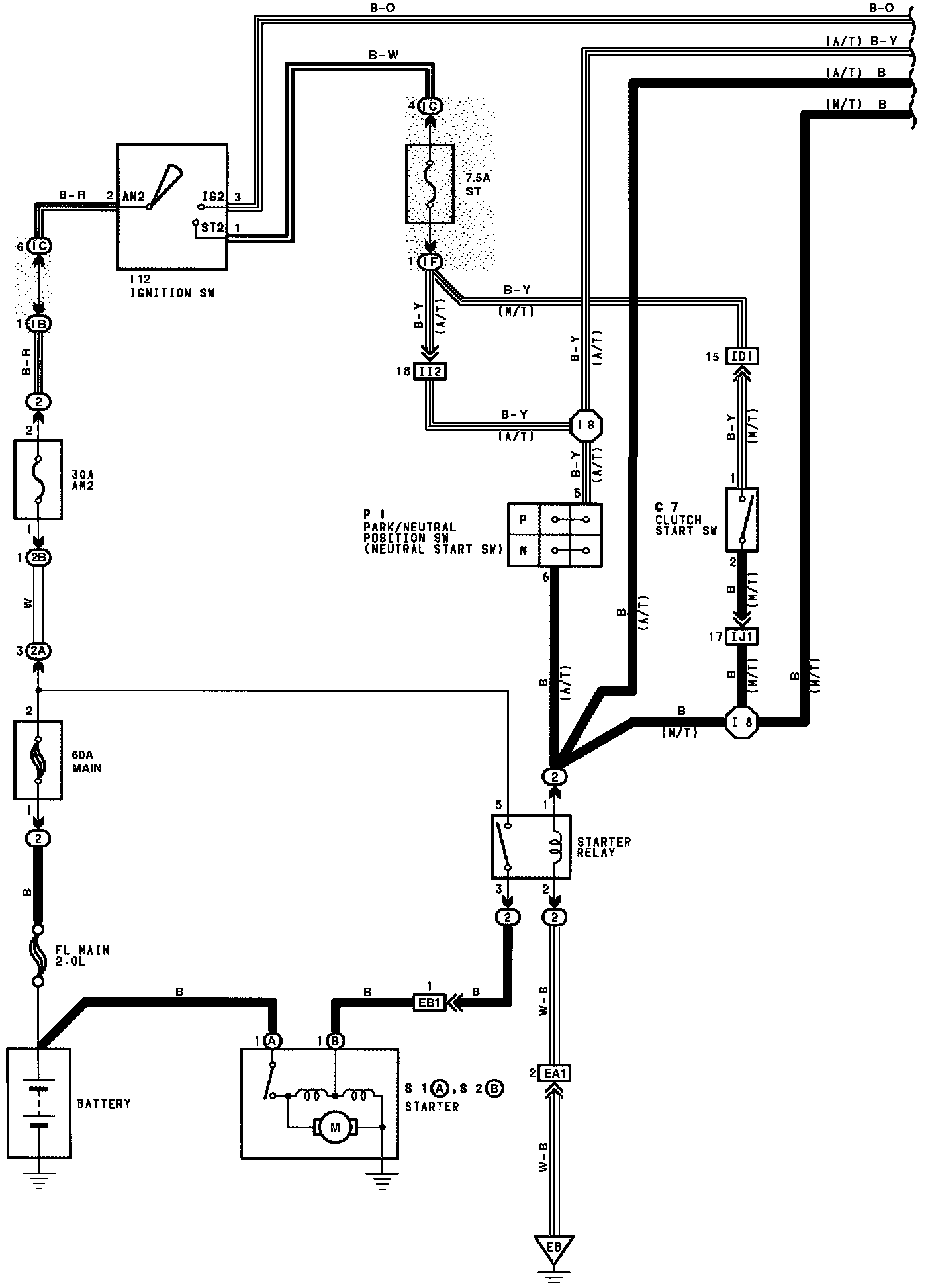

Starting And Ignition (Part 1 Of 2):

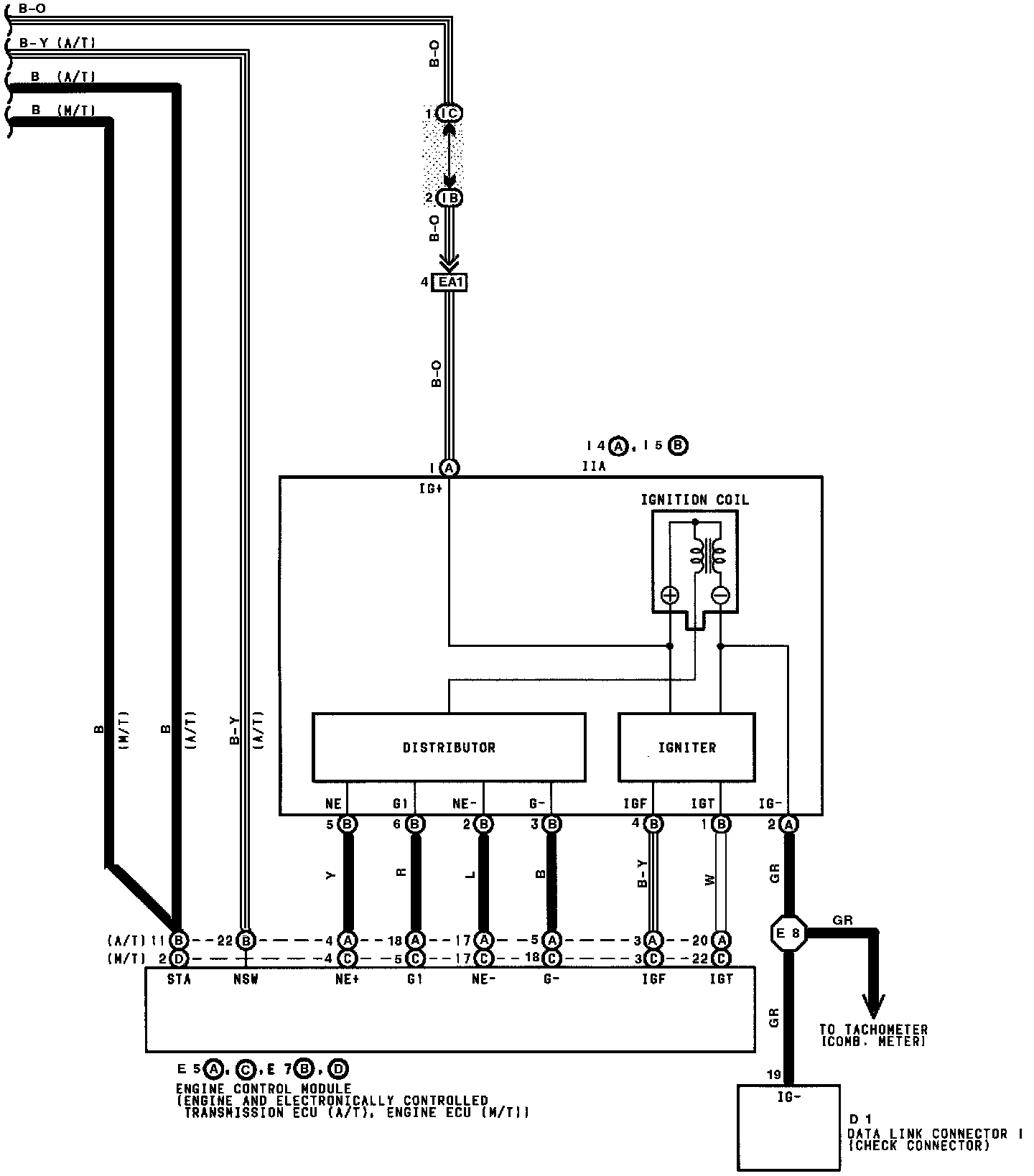

Starting And Ignition (Part 2 Of 2):
