Home >> Toyota >> 1995 >> Celica Coupe L4-107.5 1762cc 1.8L DOHC (7A-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio and Player (Built-In Type Amplifier)

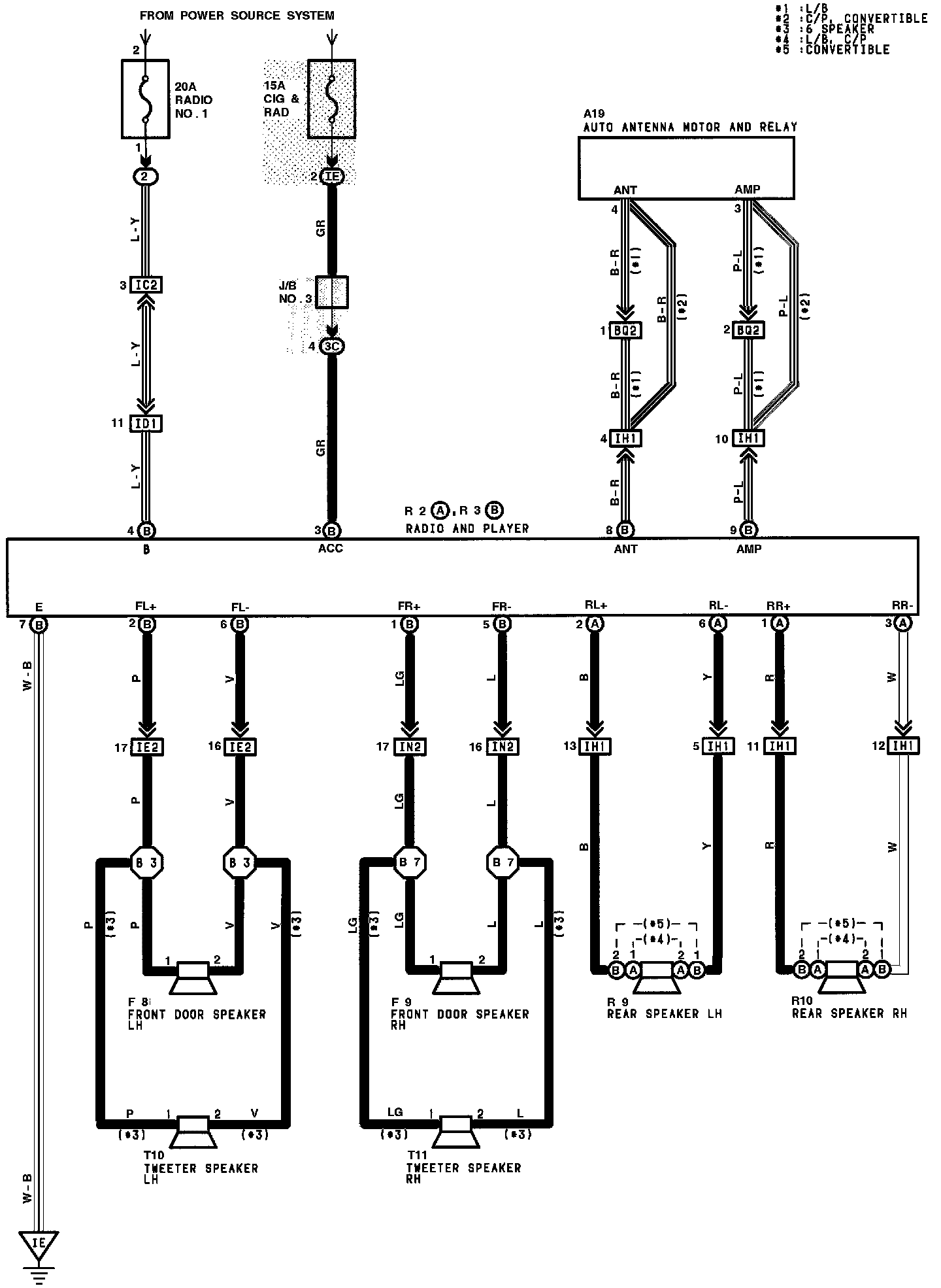

Radio and Player (Built-In Type Amplifier)

Radio And Player (Built-In Type Amplifier):
