Electronically Controlled Transmission

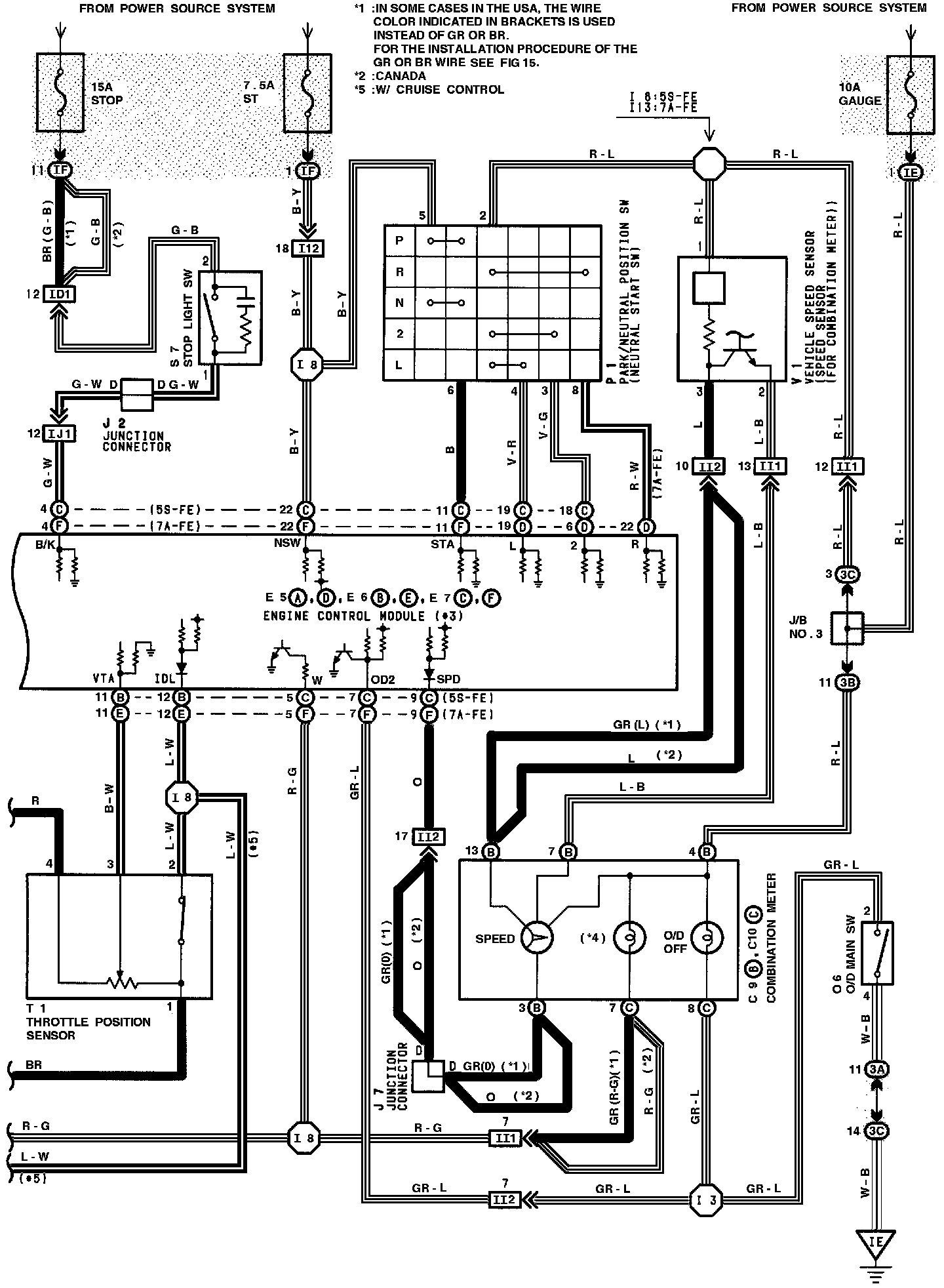

Electronically Controlled Transmission (Part 1 Of 2):
Electronically Controlled Transmission (Part 2 Of 2):
