Air Conditioning System Circuit
Air Conditioning System Circuit

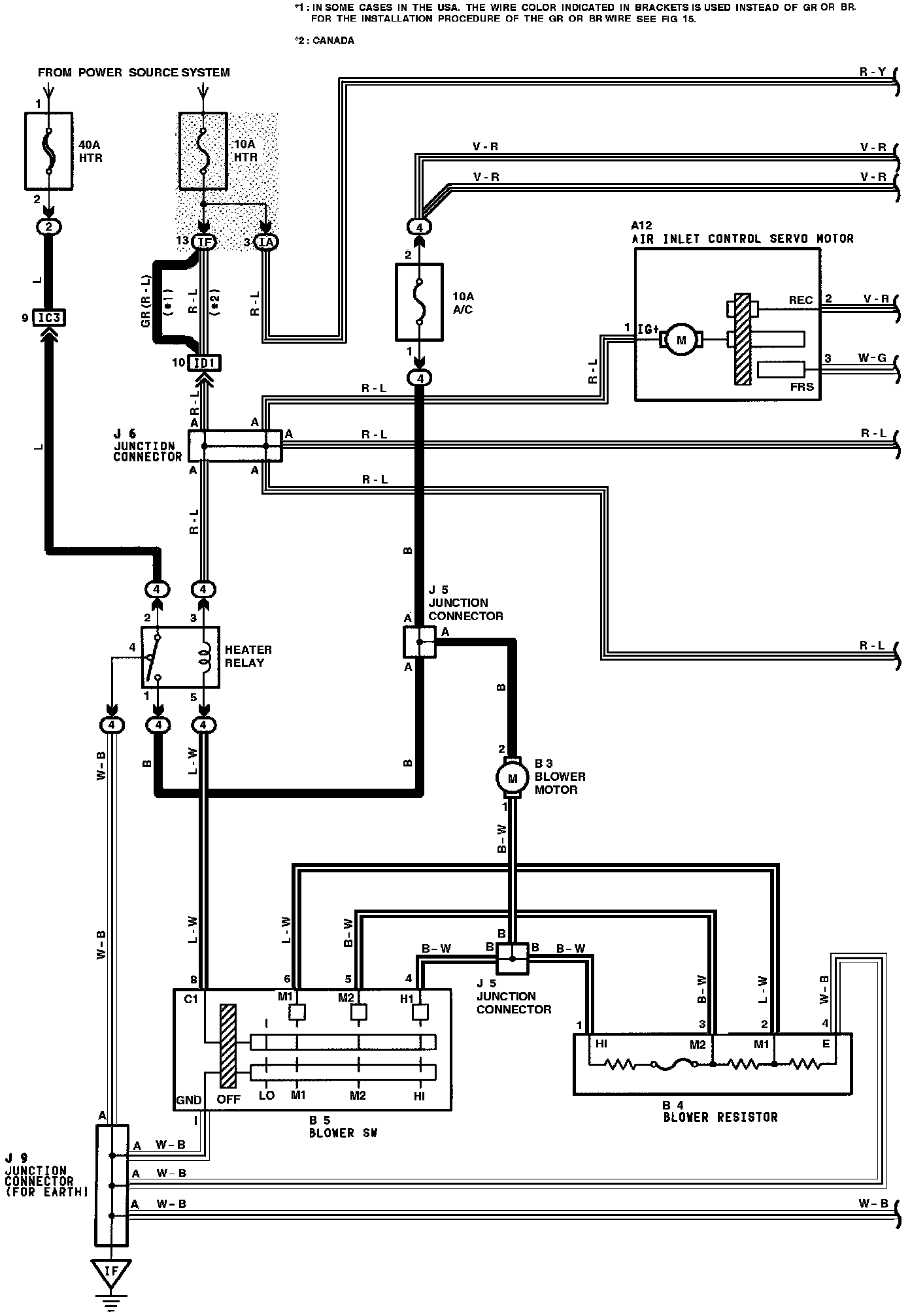

Air Conditioning (Part 1 Of 3):

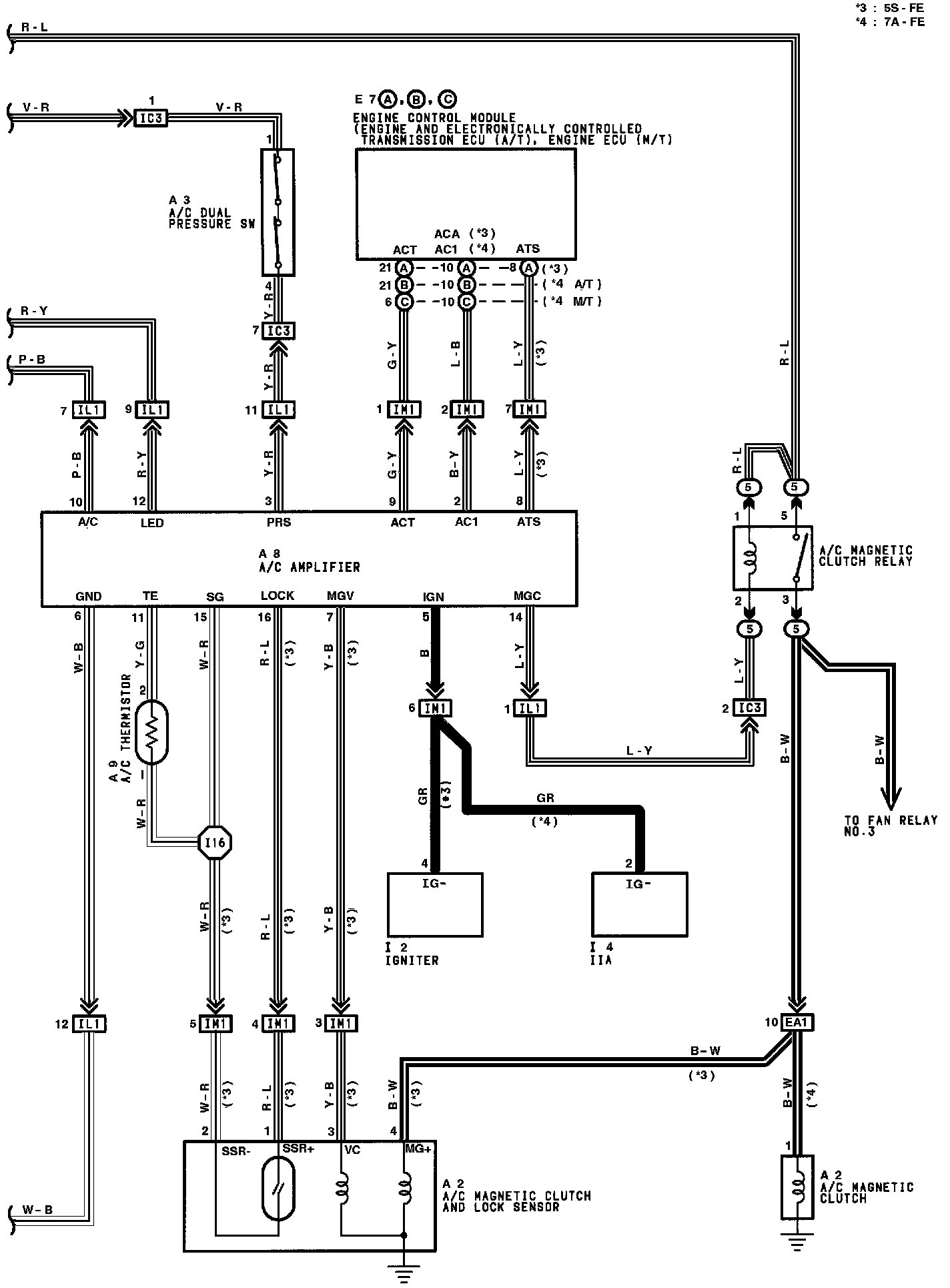

Air Conditioning (Part 2 Of 3):

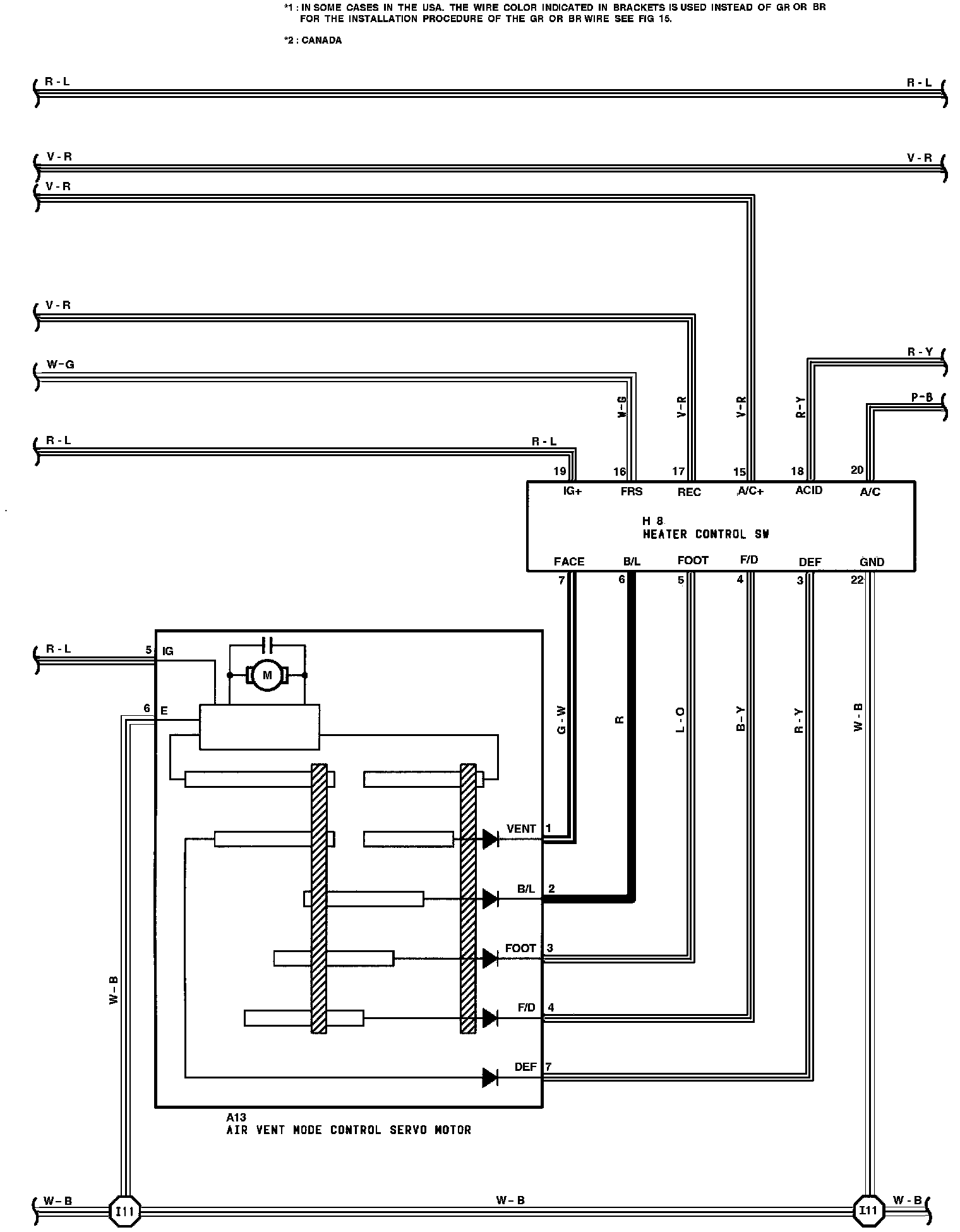

Air Conditioning (Part 3 Of 3):
