Power Source (Current Flow Chart)

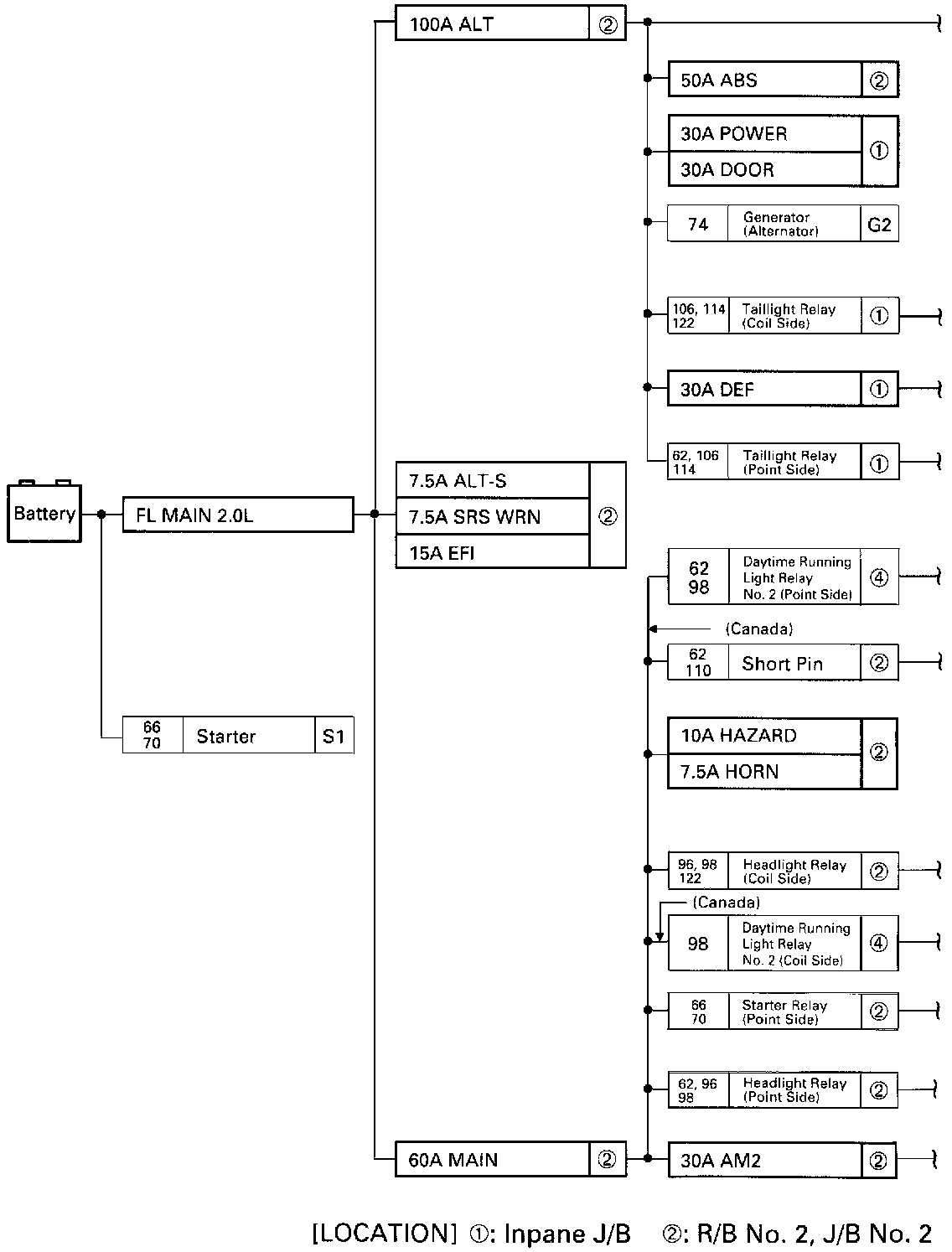

Power Source (Current Flow Chart) (Part 1 Of 9):

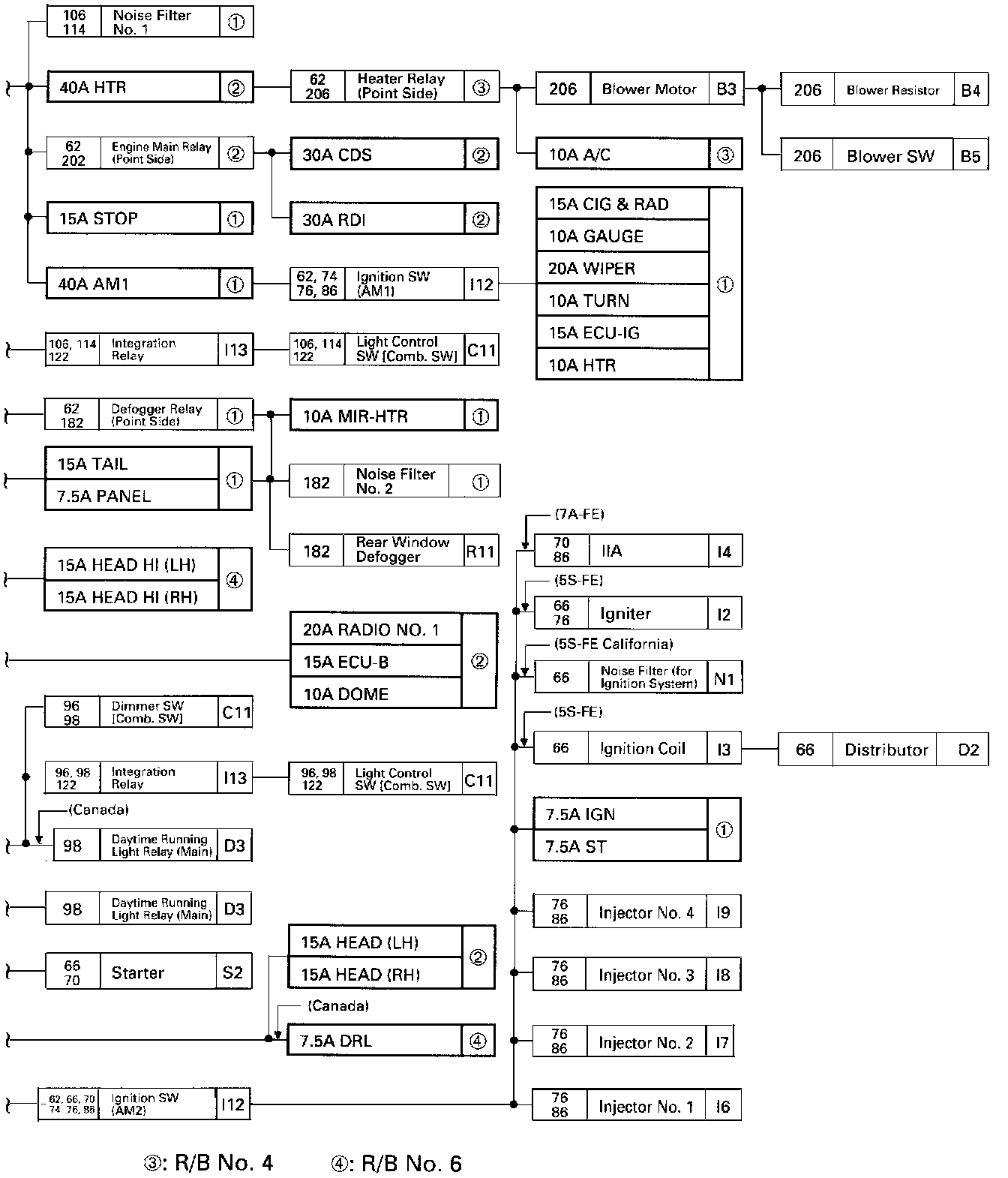

Power Source (Current Flow Chart) (Part 2 Of 9):

62 Power Source
66 Starting And Ignition (5S-FE)
70 Starting And Ignition (7A-FE)
74 Charging
76 Engine Control (5S-FE)
86 Engine Control (7A-FE)
96 Headlight (USA)
98 Headlight (Canada)
106 Illumination
110 Interior Light
114 Taillight
122 Light Auto Turn Off
182 Rear Window Defogger
202 Radiator Fan And Condenser Fan
206 Air Conditioning
