Celica Coupe L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Connector Views
>>
E 5
E 5

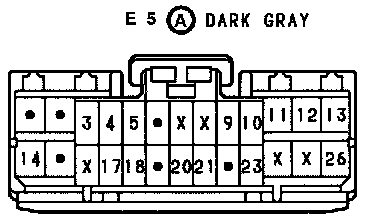

E 5 (A) Dark Gray (A/T):
E 5 (A) Dark Gray (M/T):
