Ground Points

Ground Points:

GROUND POINTS

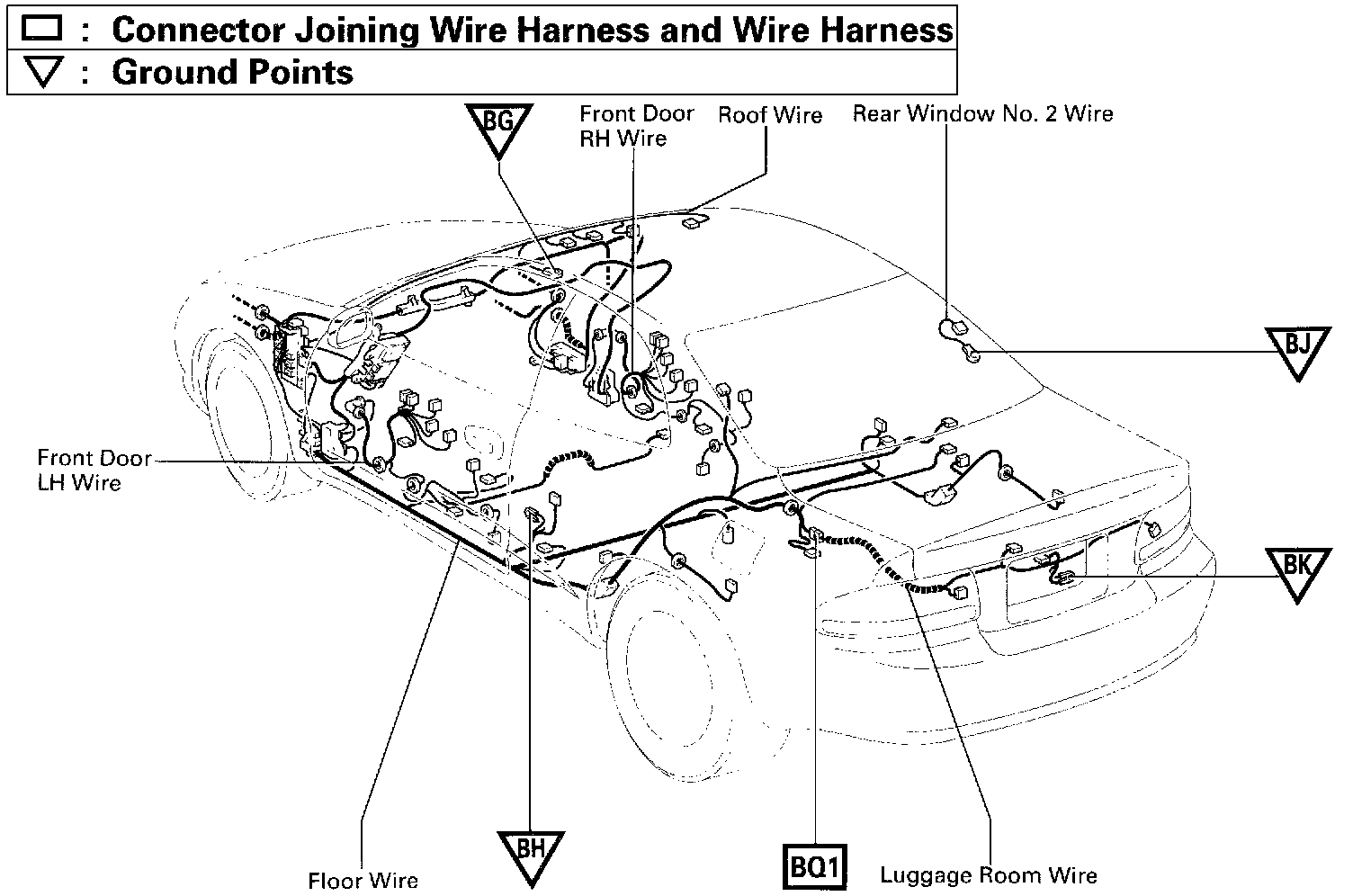

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points:

FIG 40

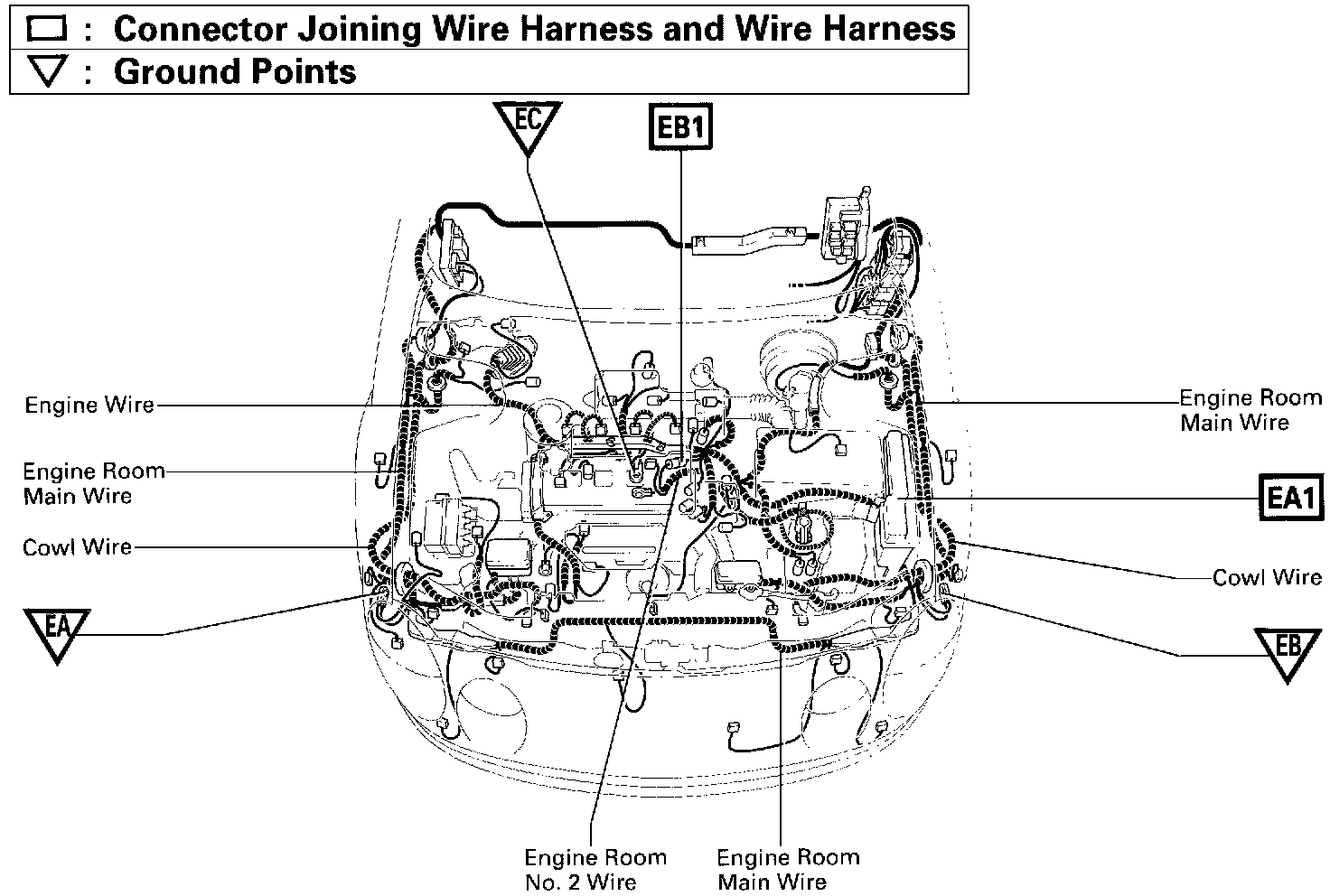

Location Of Ground Points:

FIG 42

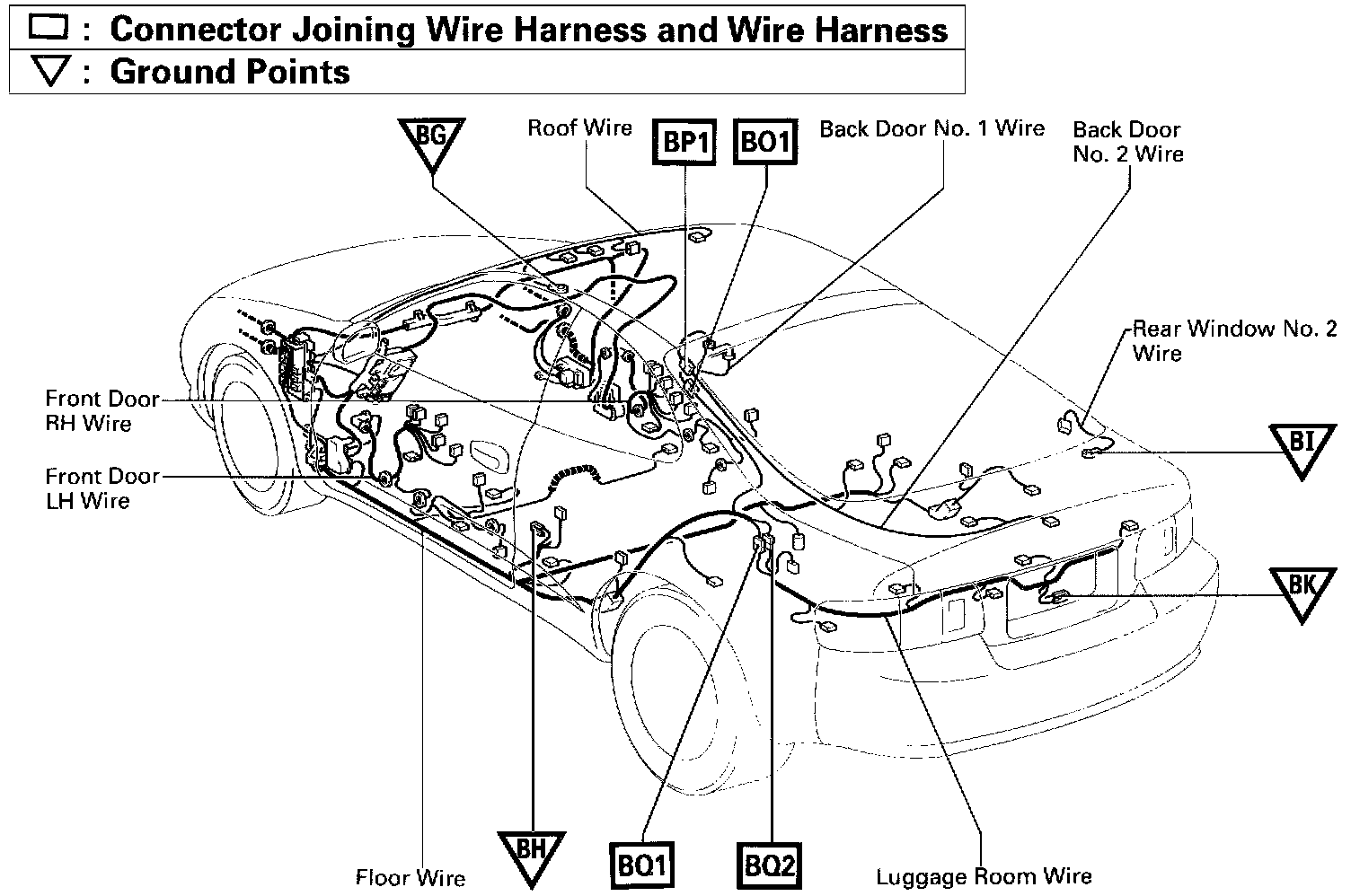

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points:

FIG 46

Location Of Connector Joining Wire Harness And Wire Harness, Ground Points:

FIG 48
