Symptom Related Diagnostic Procedures

If a normal codes is displayed during the diagnostic trouble code check but the trouble still occurs check the circuits for each symptom in the order given in the following charts.
The Matrix Chart is divided into 3 charts.
Chart 1: Electronic Circuit Matrix Chart
Chart 2: On-vehicle Repair Matrix Chart
Chart 3: Off-vehicle Repair Matrix Chart
When troubleshooting, check Chart 1 first. If instructions are given in Chart 1 to proceed to Chart 2 or 3 proceed as instructed.
1. If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
2. If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check or replace the ECM.

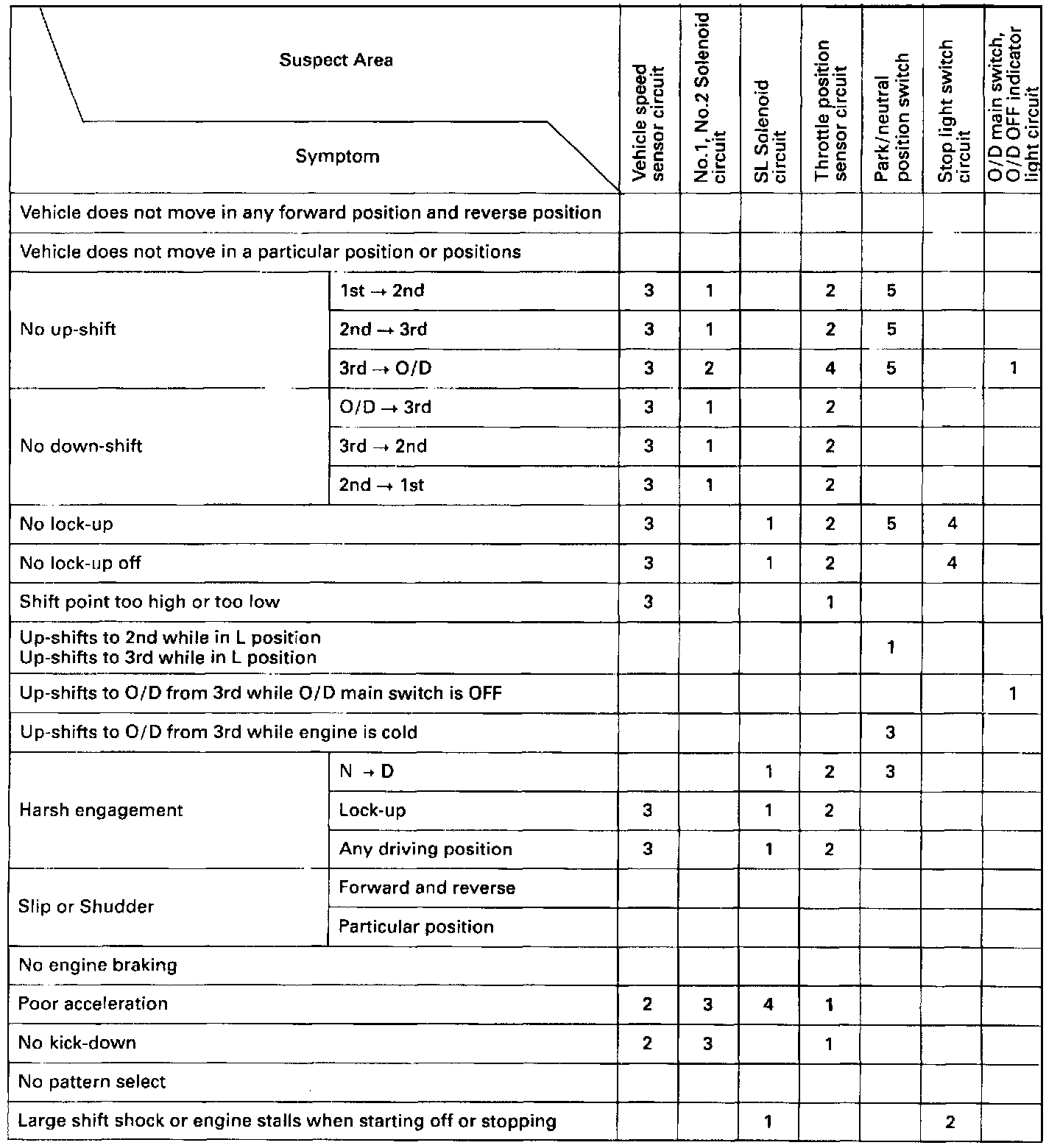

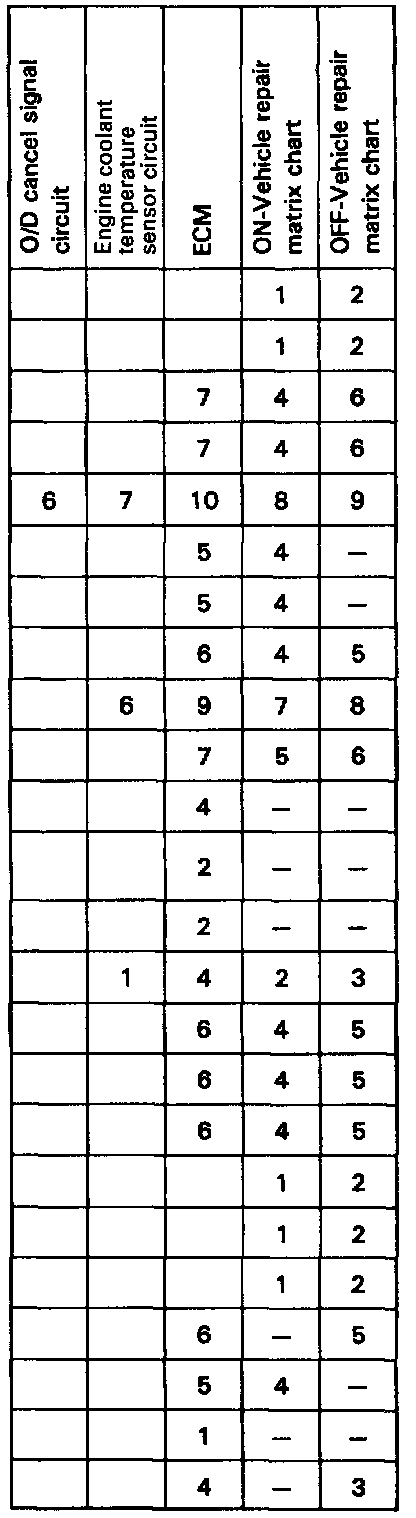

Chart 1. Electronic Circuit

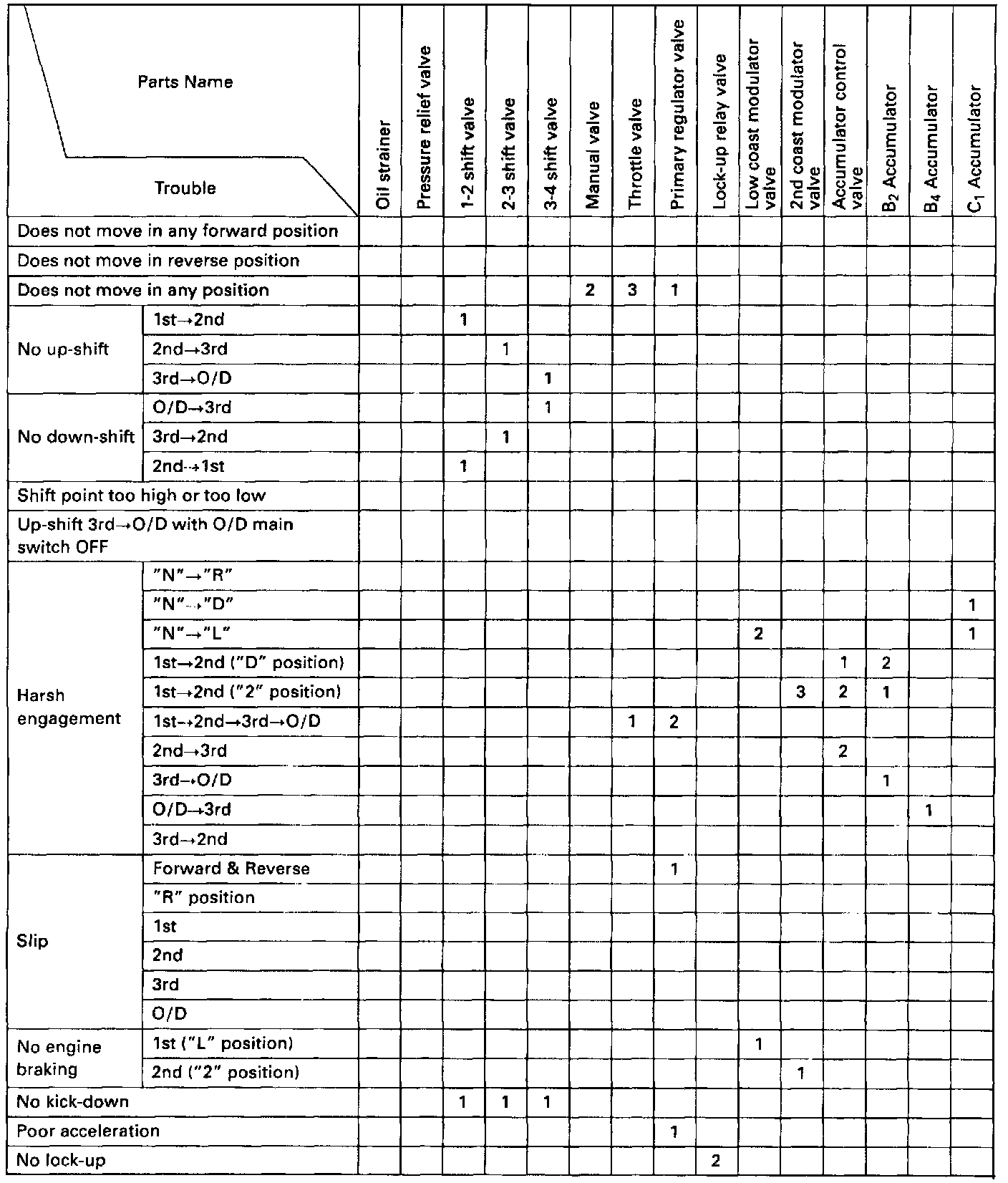

Chart 2. On-Vehicle Repair

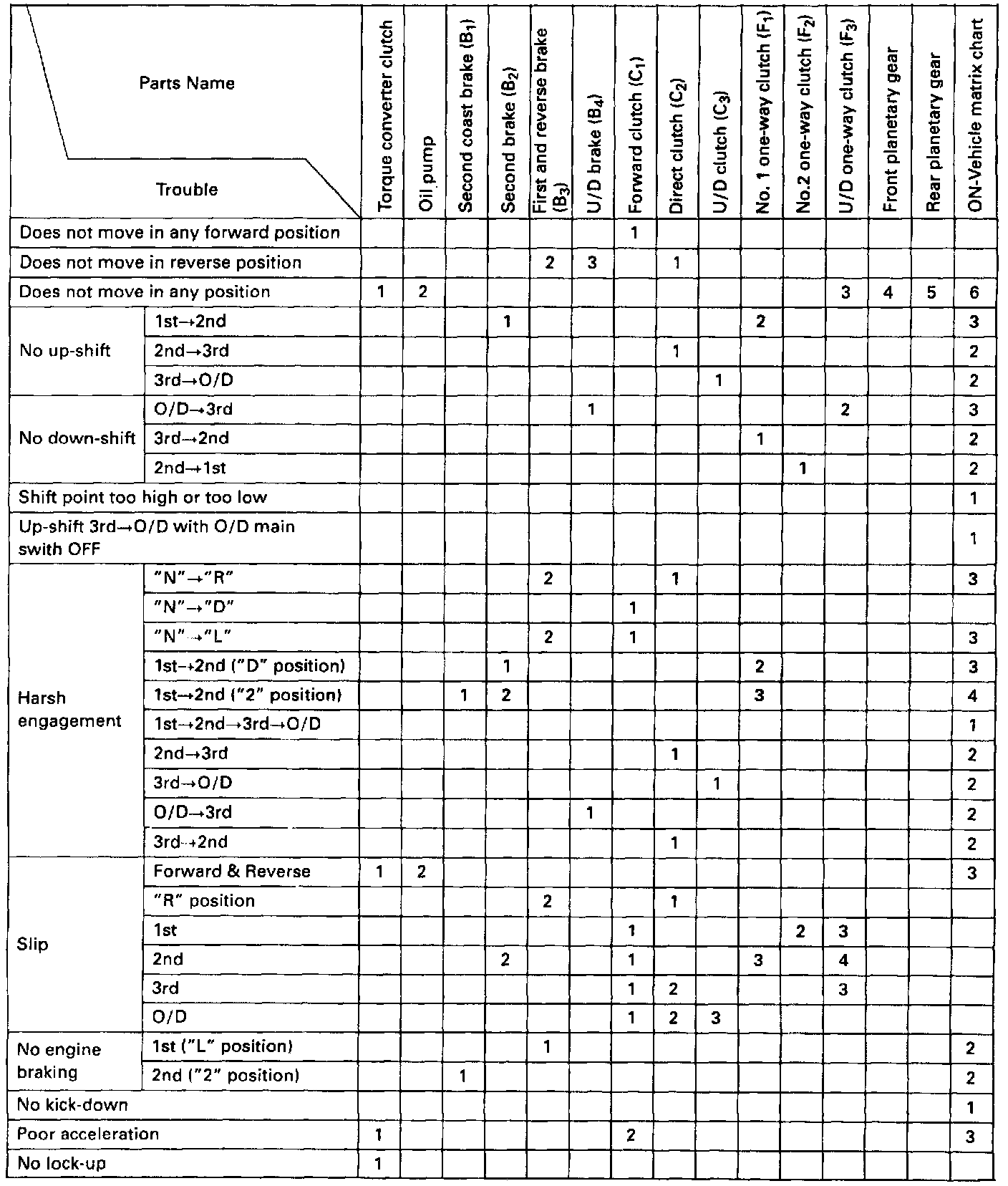

Chart 3. Off-Vehicle Repair
