SRS Connectors

Each connector has a two-piece construction consisting of a housing and a spacer. This design secures the locking of the terminal by two locking devices (the spacer and the lance) to prevent terminals from coming out.





(2) Airbag Activation Prevention Mechanism

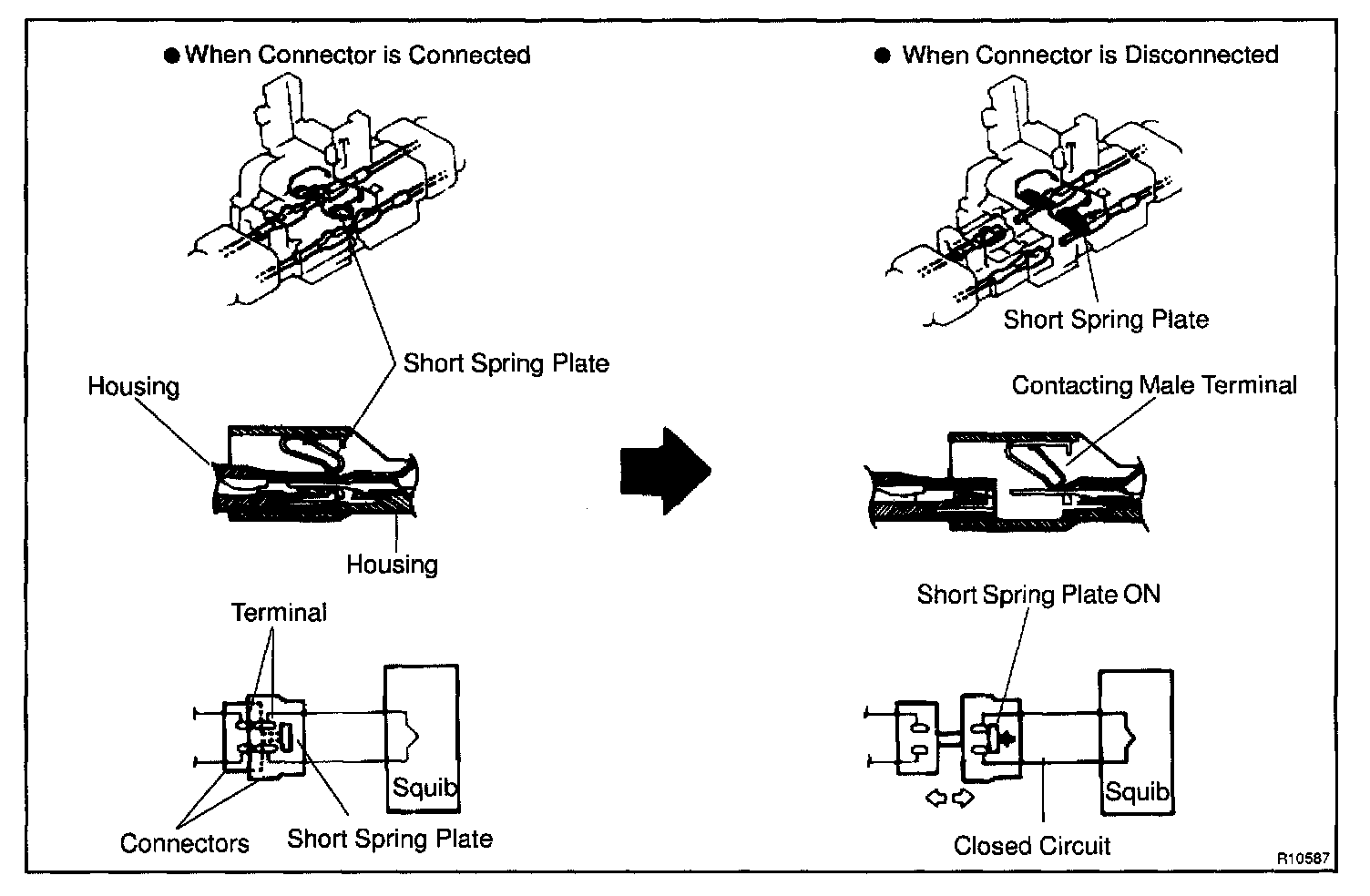

Each connector contains a short spring plate. When the connector is disconnected. the short spring plate automatically connects the power source and grounding terminals of the squib.

HINT: The illustration shows connectors 04, 05 and 06. Connector O1 has short spring plates on the female terminal side.









(3) Electrical Connection Check Mechanism

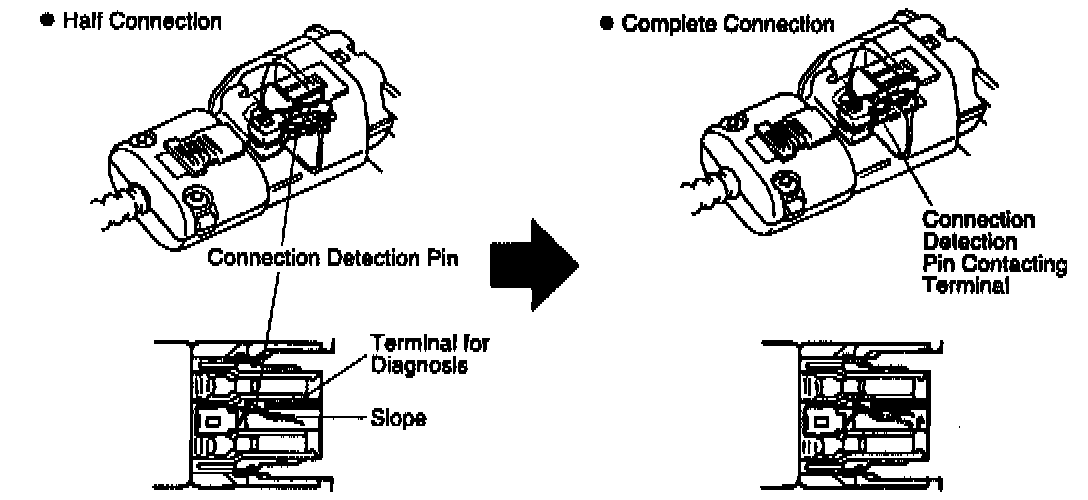

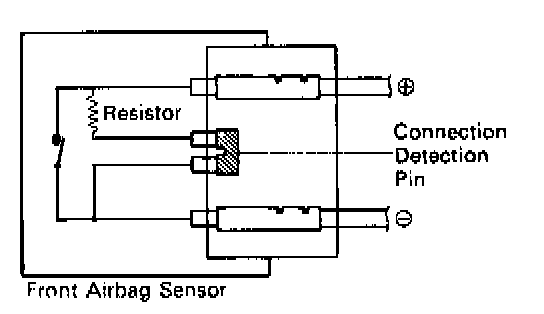

This mechanism is designed to electrically check if connectors are connected correctly and completely. The electrical connection check mechanism is designed so that the connection detection pin connects with the diagnosis terminals when the connector housing lock is in the locked condition.


(4) Connector Twin-Lock Mechanism





With this mechanism the male and female connectors are locked by two locking devices to increase connection reliability. If the primary lock is incomplete, ribs interfere and prevent the secondary lock.
