M/T - Ring Gear Set Bolt Torque Specification Decreased
REF.: TRANSMISSION & CLUTCHNO.: TC95-010
DATE: NOVEMBER 30, 1995
MODEL: COR & CEL

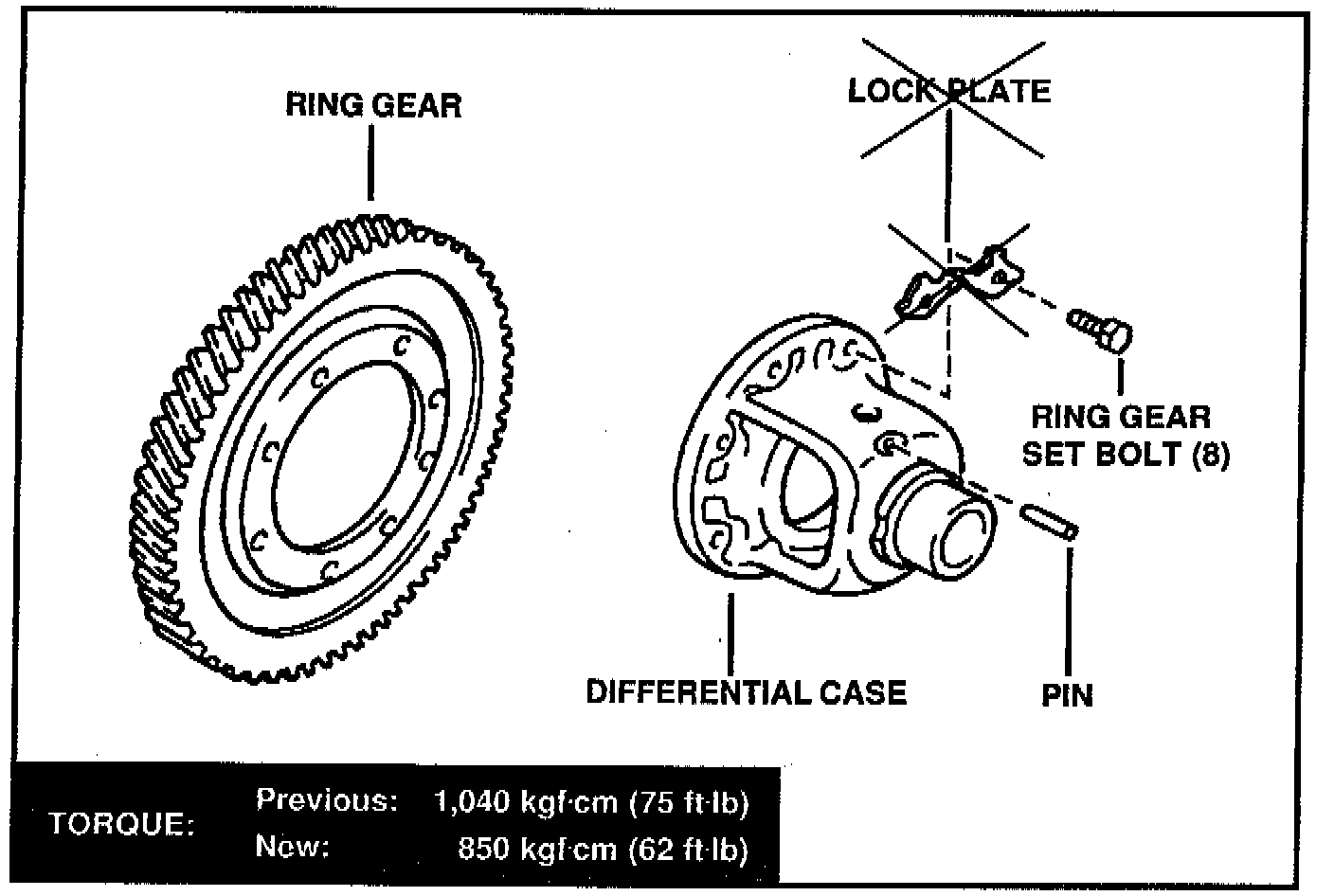

C40, C5 # TRANSAXLE RING GEAR SET BOLT
Due to a transaxle production change on the Corolla and Celica models, differential lock plates have been discontinued. Torque specification for the ring gear set bolts has also been changed as indicated.
PRODUCTION EFFECTIVE:
Transaxle Serial Number:
From: Z50100001
From: X50100021
