Repair Manual Corrections - Ball Joint Specifications

REF: SUSPENSION

NO.: SU95-OO1

DATE:
JANUARY 20, 1995

MODEL:
CELICA

FRONT LOWER BALL JOINT TURNING TORQUE SPECIFICATION




When performing the front lower ball joint inspection outlined in the '95 Celica Repair Manual on page SA-39, please note that the turning torque has been changed as shown (see illustration), as a result of parts standardization.

NOTE:
Old and new style parts are interchangeable

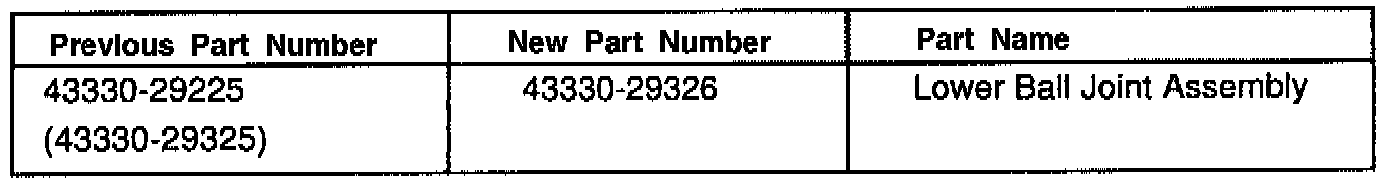

PART NUMBER INFORMATION

PRODUCTION EFFECTIVE:

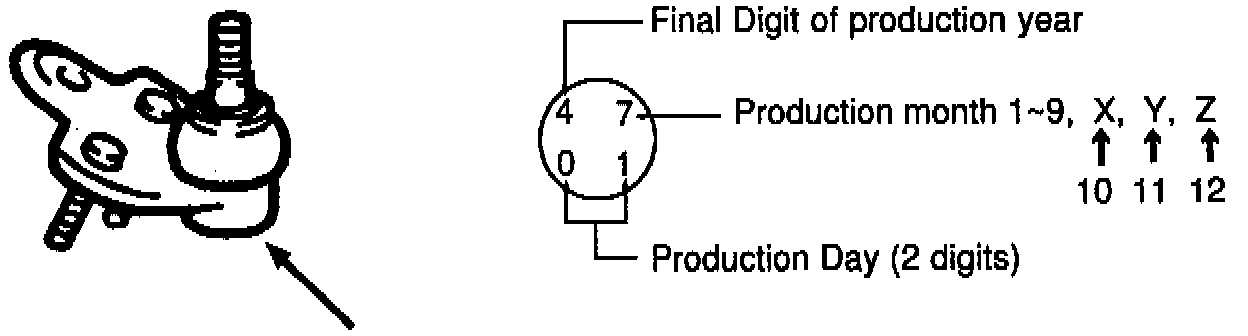

Production change was made 07/01/94. The new parts can be identified by the production date engraved as shown in the illustration.
