Home
>>
Toyota
>>
1995
>>
Celica Coupe L4-107.5 1762cc 1.8L DOHC (7A-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

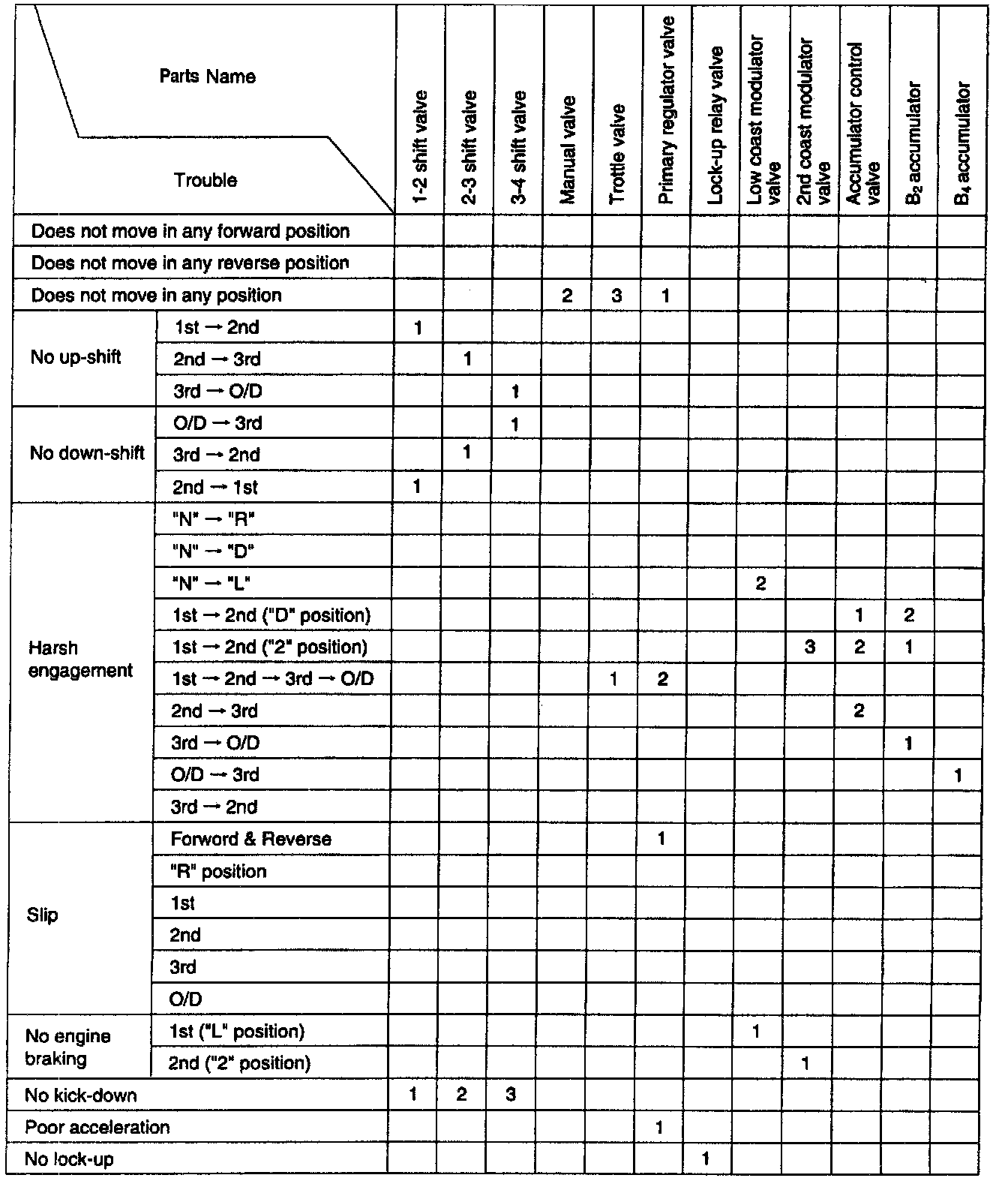

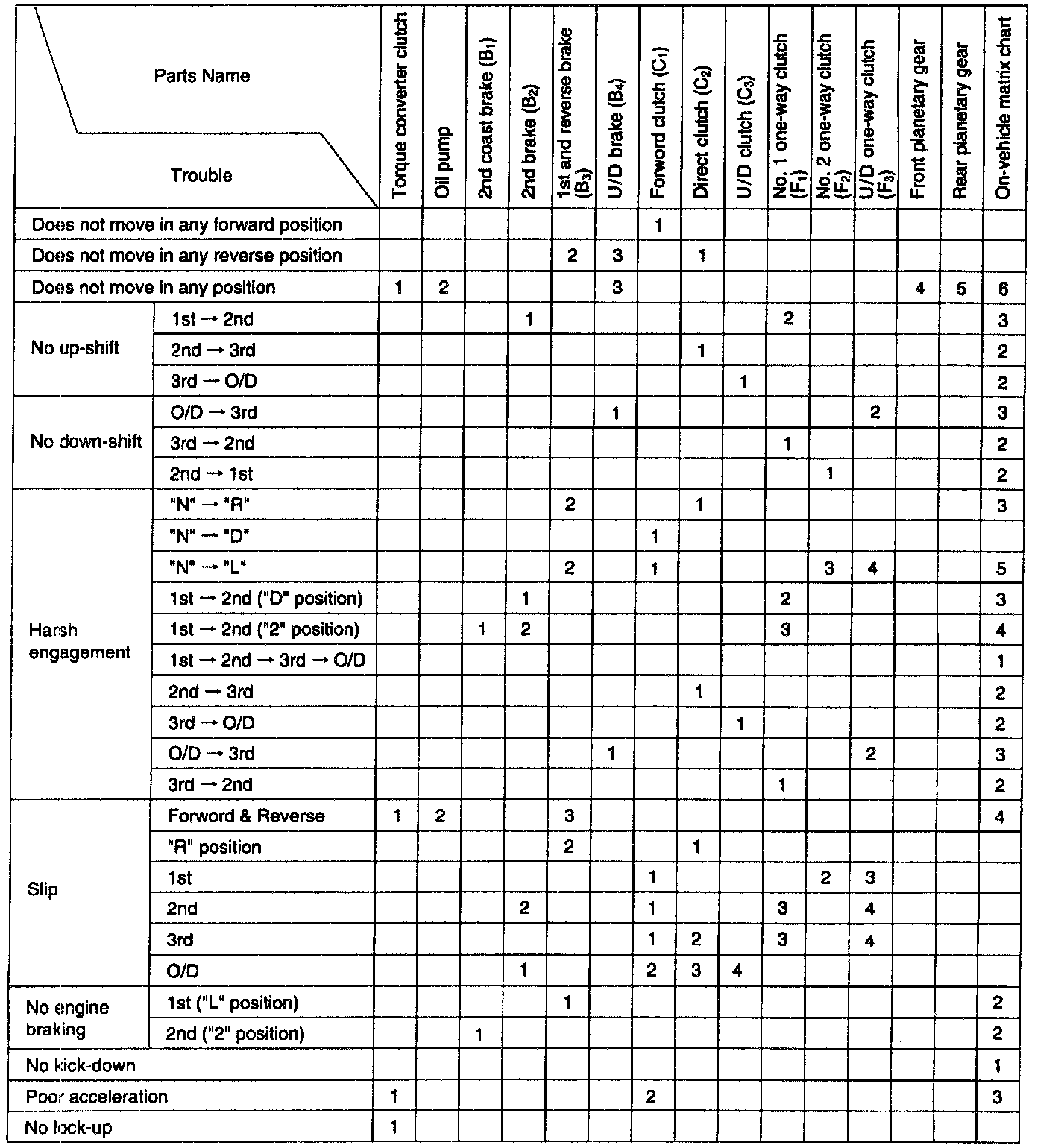

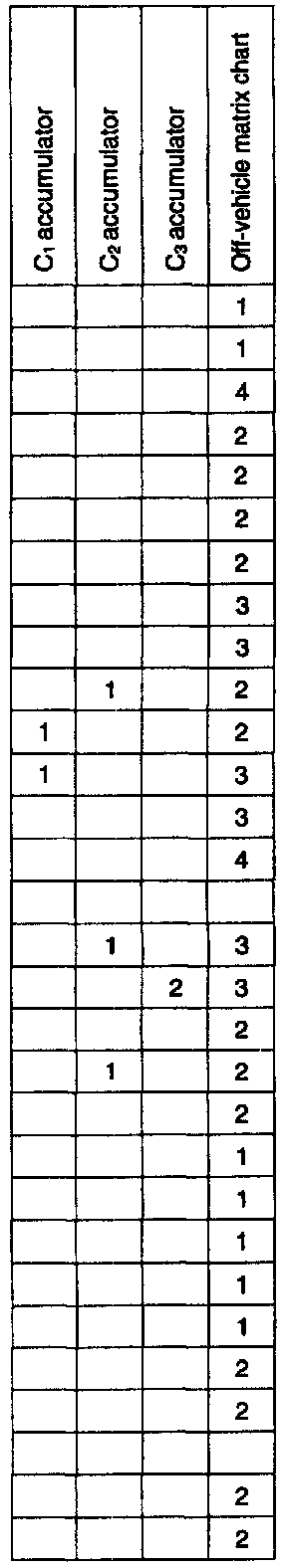

TROUBLESHOOTING MATRIX CHARTS
On-Vehicle Repair Part 1 Of 2:
On-Vehicle Repair Part 2 Of 2:
Off-Vehicle Repair:
