Rear Wiper & Washer Switch
Rear Wiper & Washer Switch

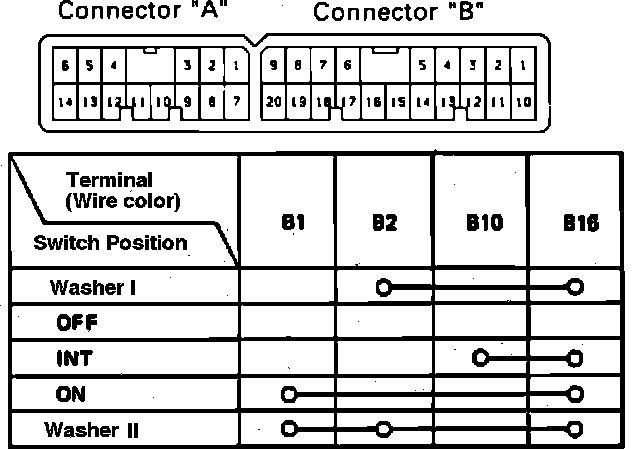

Fig. 38. Rear Wiper & Washer Switch.:
1.
Inspect for continuity as shown in
Fig. 38.
2.
If continuity is not as indicated, replace switch.
