Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

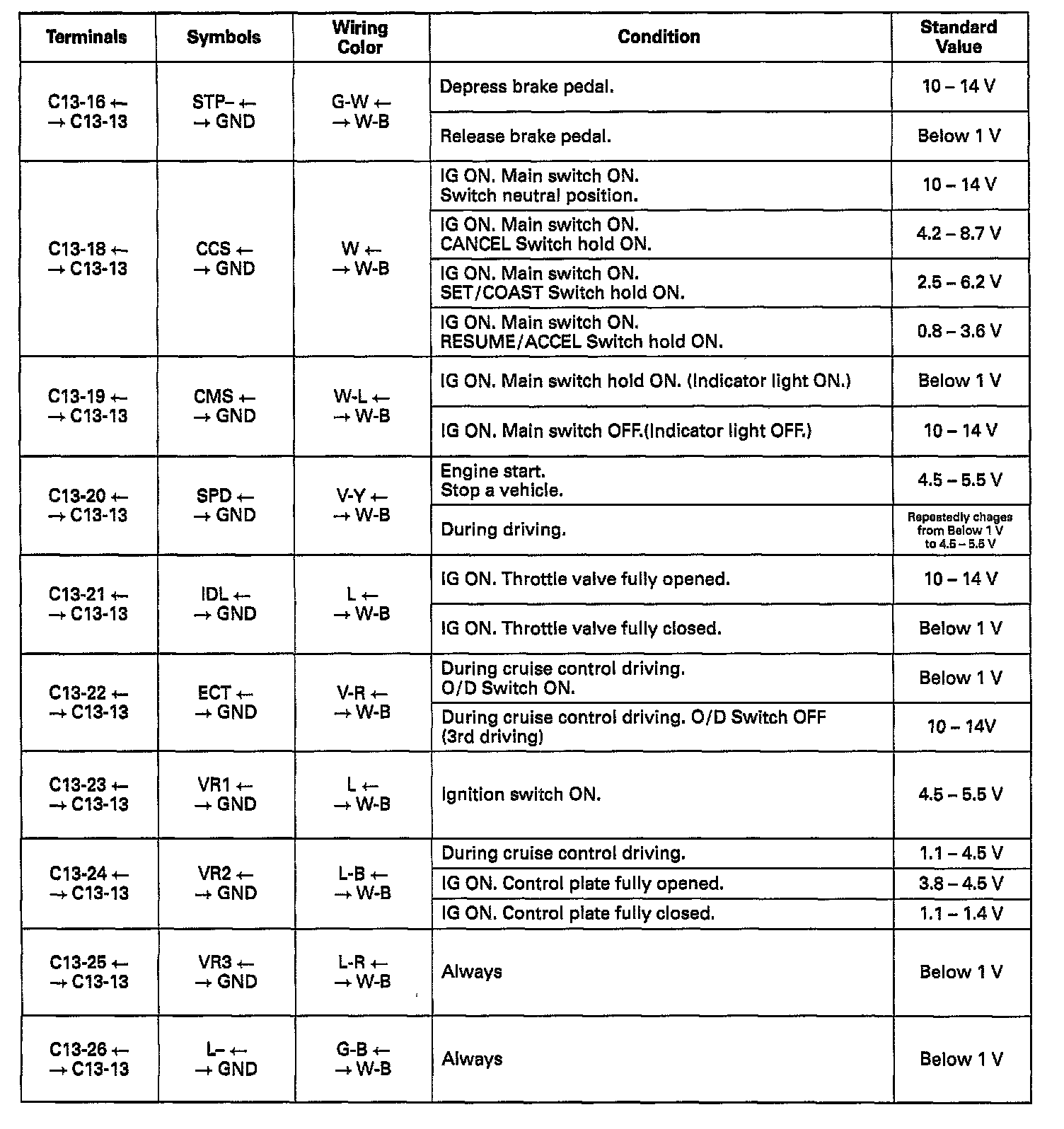

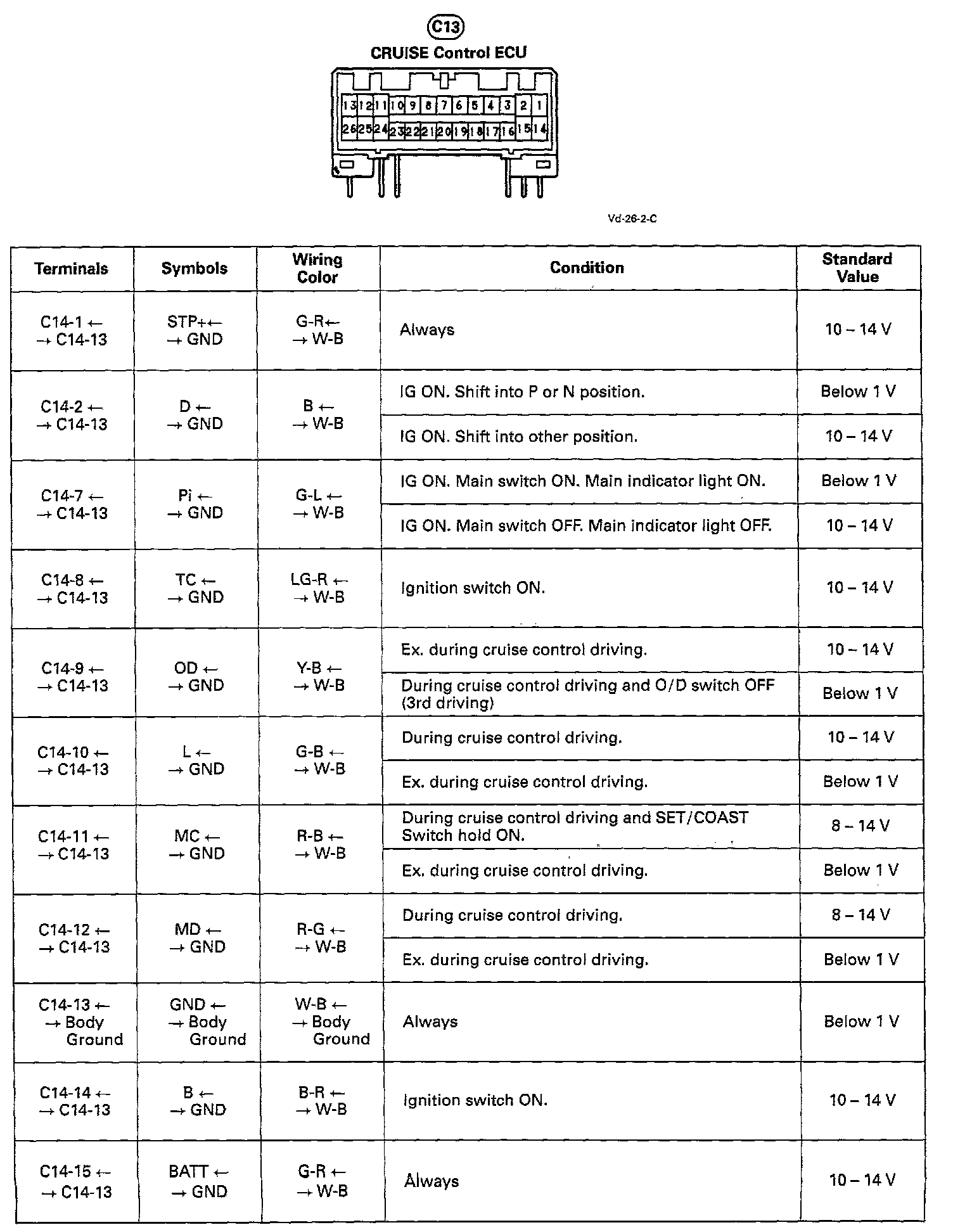

STANDARD VALUE OF ECU TERMINAL
