Home >> Toyota >> 1996 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Locations

Horn: Locations

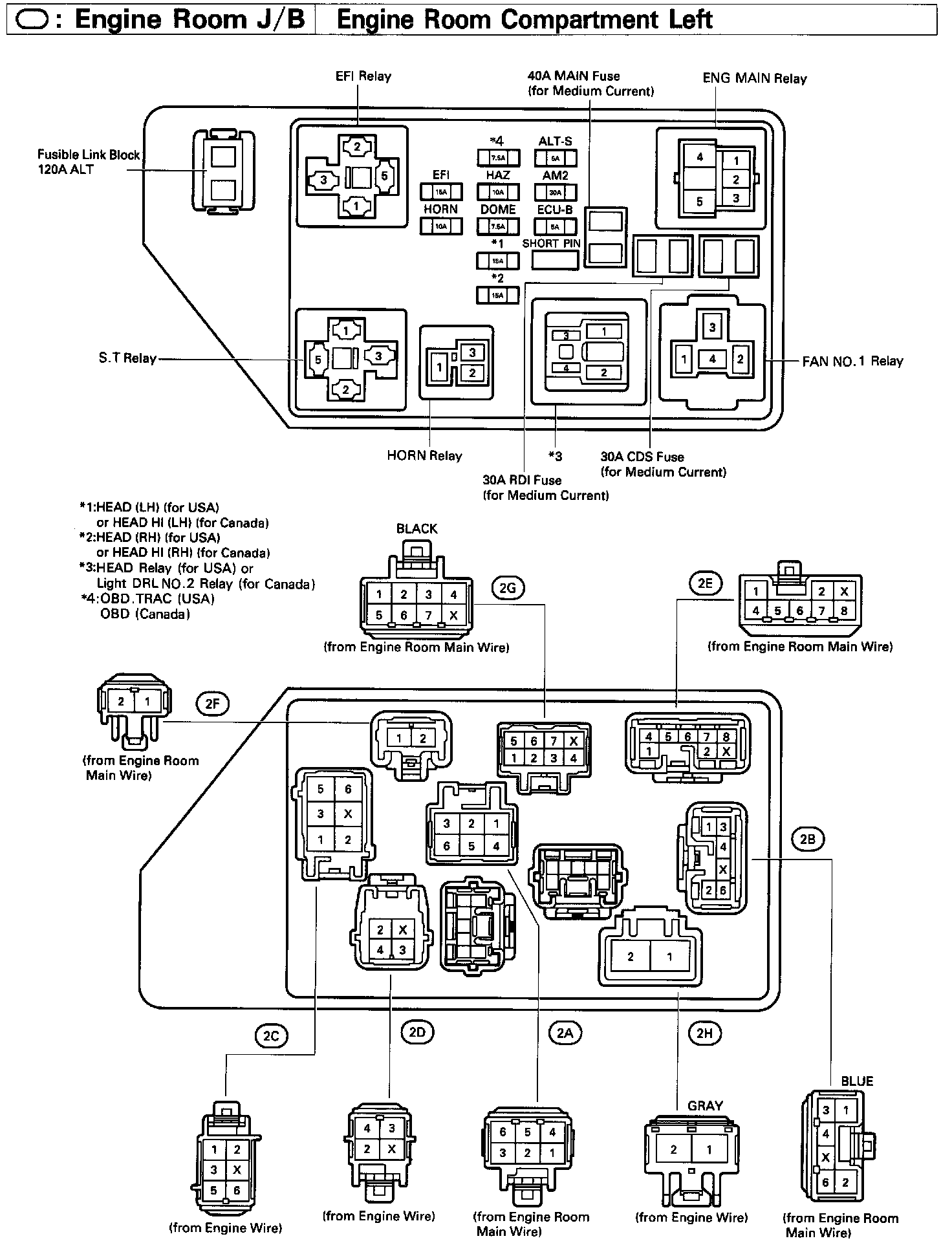

Locations-Engine Room J/B, Engine Room Compartment Left (Fig 24):
