A/T - Valve Body Gasket Shape Changed

TRANSMISSION & CLUTCH
TC001-97

April 25, 1997

Title:
A541E VALVE BODY GASKET No. 2

Models:
'94-'96 Camry, Avalon





Introduction

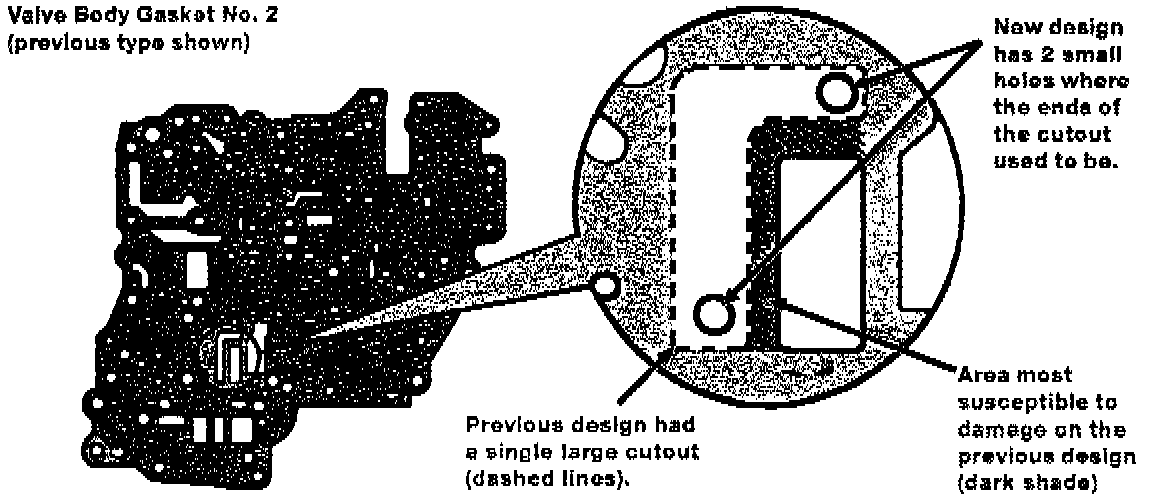

To improve durability, the shape of Valve Body Gasket No.2 has been changed. Should a vehicle exhibit harsh engagement shock when shifting from "N" --> "R" or "P" --> "R" inspect condition of this gasket. If gasket is found to be damaged as shown in the illustration, also inspect the Direct Clutch (02) for damage.

NOTE:
Refer to Service Bulletin No. TCOO2-96 regarding direct clutch (C2) update.

Parts Information

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME

35434-33011 35434-33012 Valve Body Gasket No.2

NOTE:
New transmissions with serial numbers after D0908172, and Remanufactured transmissions with serial numbers after 96K # 357A, have the new gasket Installed. When replacing a transmission with a unit having a serial number prior to the change be sure to install a new gasket also.

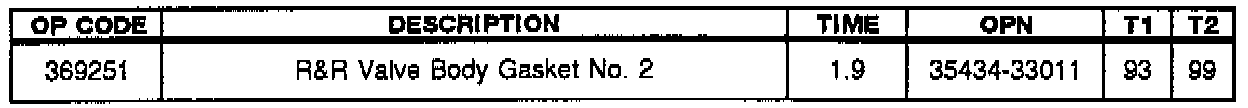

Warranty Information

WARRANTY COVERAGE:
Basic Vehicle Power Train Warranty.
