Seats - Popping Noise From Rear Seat

BODY
BO023-97

AUGUST 15, 1997

TITLE:
REAR SEAT POPPING NOISE

MODELS:
'96 AVALON





Introduction

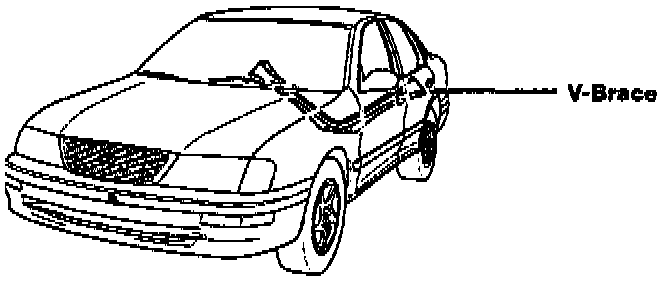

Some 1996 Avalons may exhibit a "popping" noise emitting from the rear of the vehicle, when turning left or right at low speeds (10 to 20 m.p.h.) or when going over a speed bump. This noise may be caused by insufficient "V-Brace" set nut/bolt torque. To correct this condition, re-torque the (4) set nuts and (2) bolts on the rear "V-Brace".

Production Change Information

1996 Avalons starting with VIN: 4T1BF12B * TU129862

Warranty Information

OPCODE DESCRIPTION TIME OPN T1 T2
BD7014 R&R 4 set nuts, 2 bolts & re-torque 0.5 64241-AC010 62 81

Applicable Warranty:

This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

Repair Procedure

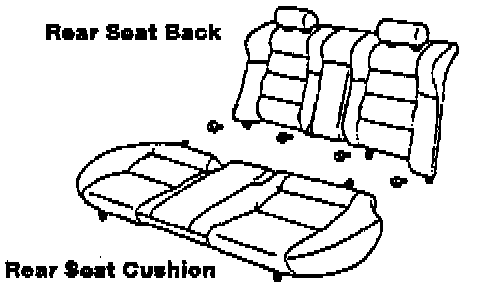

1. Remove the rear seat.

NOTE:
Refer to Avalon Repair Manual (Page BO-55) for seat removal/installation.

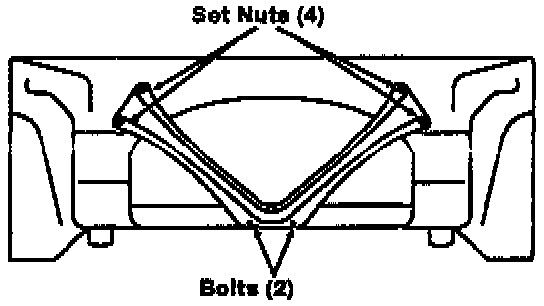

2. Remove the 4 set nuts and 2 bolts and - apply thread adhesive to the threads. (LOCK-TITE(R) 242 or equivalent)

3. Torque the set nuts and bolts on the "V-Brace".

Torque: 9 ft-lbf (12 Nm, 120 kgf-cm)

4. Reinstall the rear seat.

5. Confirm the condition has been repaired by test driving.
