Wheels - Lug Wrench Improvement

Ref.: PRODUCT GENERAL INFORMATION

No.: PGOO9-96

Date: NOVEMBER 8, 1996

Model: COR, CAM, AVL, TAO

Title: LUG WRENCH IMPROVEMENT

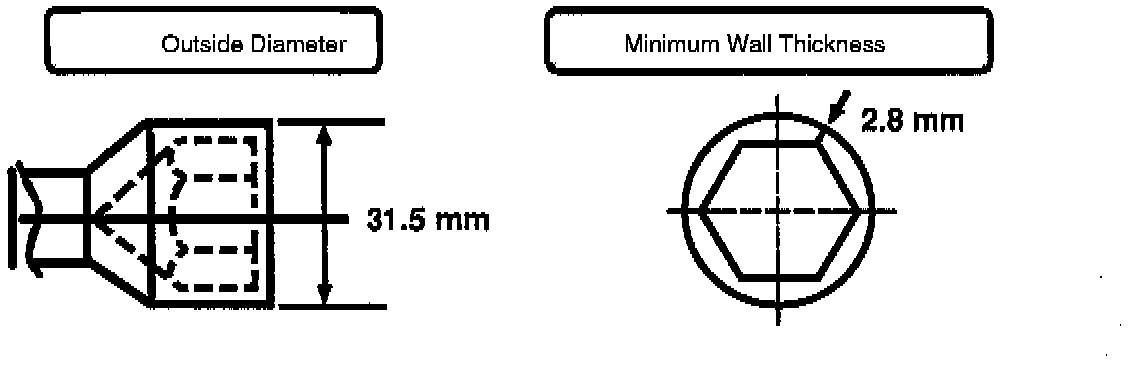

Improvements have been made to the lug wrench used on Corolla, Camry, Avalon and Tacoma vehicles produced in North America. The outside diameter was increased from 29.2 mm to 31.5 mm in order to establish a minimum wall thickness of 2.8 mm at each corner.

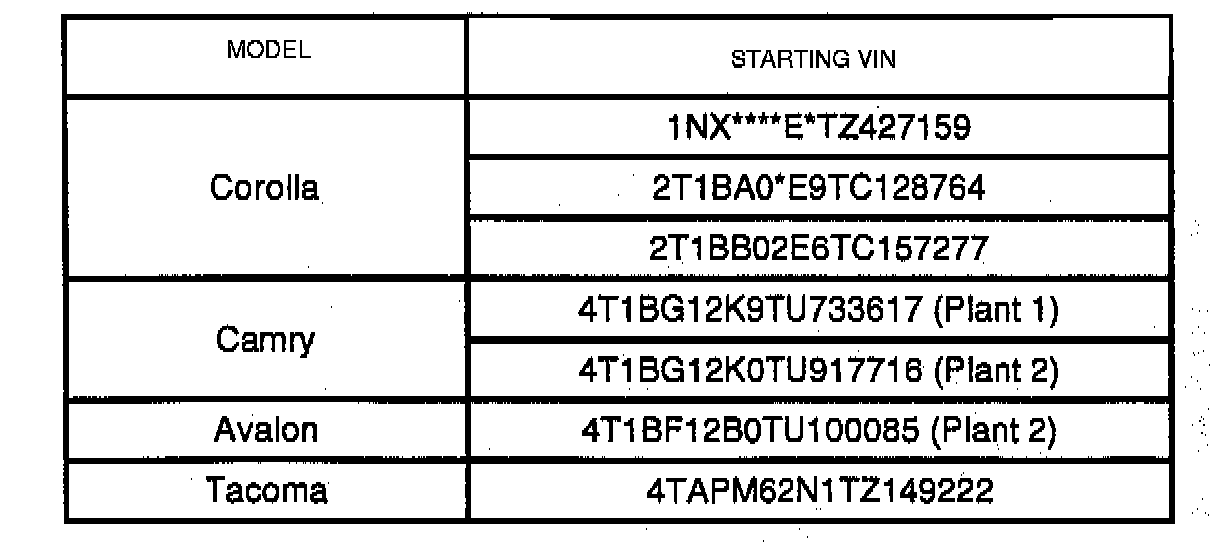

PRODUCTION EFFECTIVE:

PART NUMBER INFORMATION:

Part numbers remain the same.
