Power Transistor HVAC: Service and Repair

POWER TRANSISTOR REMOVAL (Automatic A/C)


1. REMOVE LOWER FINISH PANEL


2. REMOVE POWER TRANSISTOR







a. Disconnect the connector from power transistor.

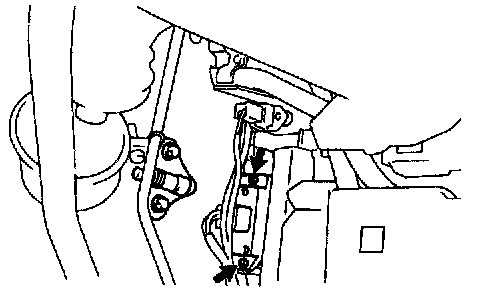

b. Remove the 2 screws and power transistor.


POWER TRANSISTOR INSTALLATION
Installation is in the reverse order of removal.
