A/T - Oil Pan, Dip Stick and C1 Clutch Modified

TRANSMISSION & CLUTCH

TC004-97

October 24, 1997

Title:
OIL PAN, DIP STICK & C1 CLUTCH ON A541E

Models:
'97 Camry,
'97 Avalon

Introduction The following production changes have occurred on the A541 E transaxle:

1. The oil pan and dipstick have been redesigned for increased oil capacity.

2. The C1 clutch has been changed for improved durability.

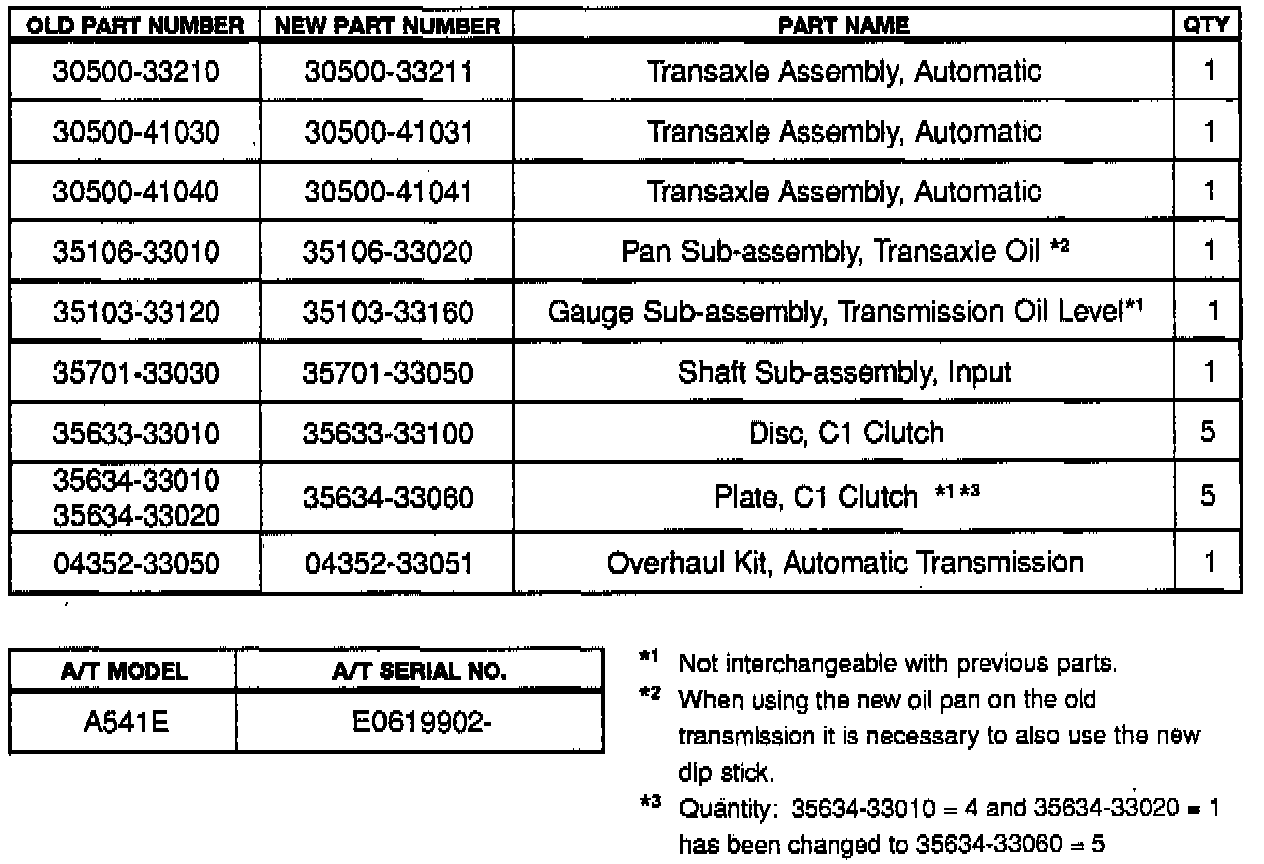

Parts Information

Transmission Production Change Information

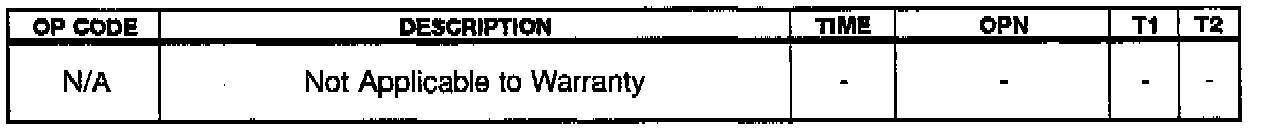

Warranty Information

Details of Production

Change

1. Transaxle Oil Pan

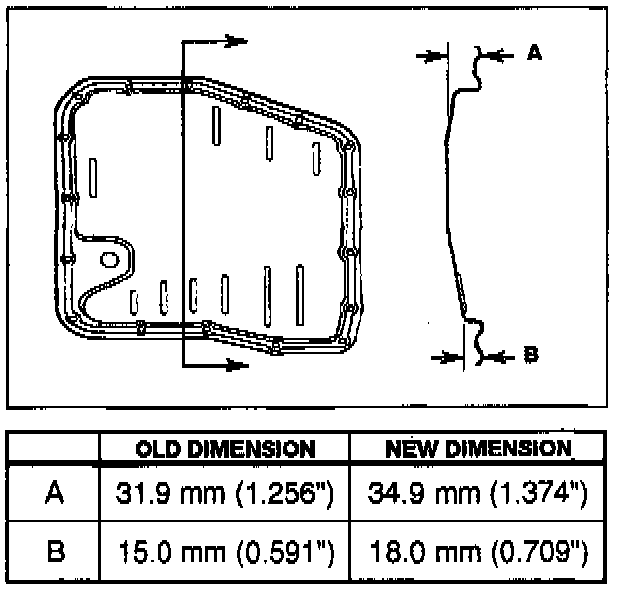

A. The Oil Pan depth has been increased as indicated by dimensions A and B (illustration and table).

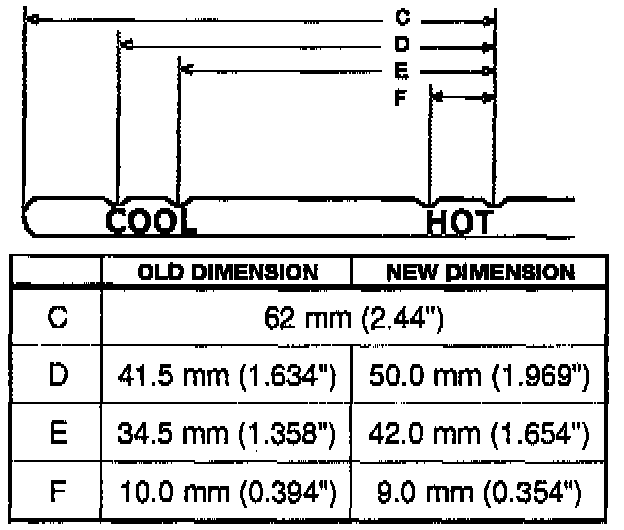

B. With the oil pan change, the oil level gauge (dip stick) has been revised.

2. Forward Multiple Disc Clutch Assembly.

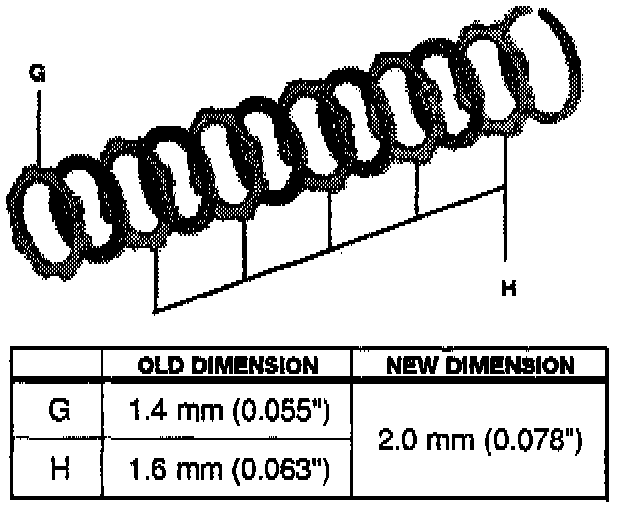

A. C1 clutch plate thickness has been increased to 2.0 mm (0.078").





B. Input Shaft Sub-Assembly changed to accommodate thicker C1 clutch plates.

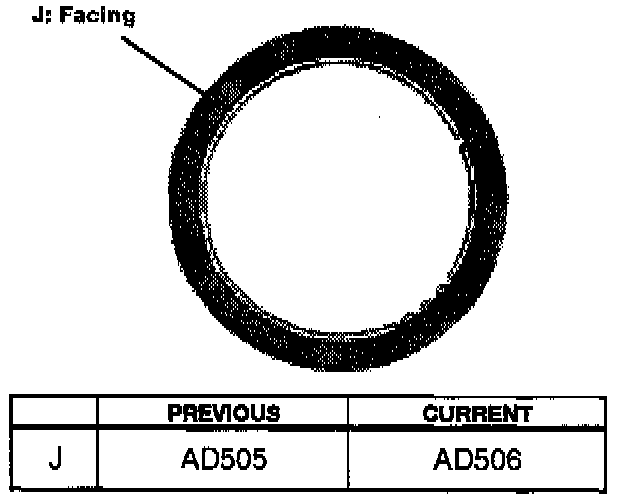

C. C1 Clutch Disc material has been changed. Identifying marks can be found on the facing.
